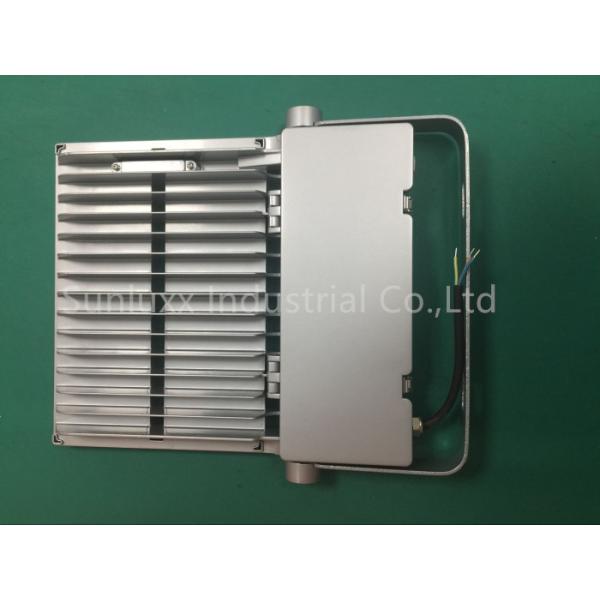

90 - 305 V AC LED Stadium Flood Light 140LM/W IP66 240W High Pole Project Lighting Use
90 - 305 V AC LED Stadium Flood Light 140LM/W IP66 240W High Pole Project Lighting Use
90 - 305 V AC LED Stadium Flood Light 140LM/W IP66 240W High Pole Project Lighting Use
90 - 305 V AC LED Stadium Flood Light 140LM/W IP66 240W High Pole Project Lighting Use
90 - 305 V AC LED Stadium Flood Light 140LM/W IP66 240W High Pole Project Lighting Use
90 - 305 V AC LED Stadium Flood Light 140LM/W IP66 240W High Pole Project Lighting Use
Specifications
Brand Name :
SUNLUXX
Model Number :
FAL-240W
Certification :
CE RoHs
Place of Origin :
China
MOQ :
1
Price :
US$205.33 / PC, EXW Price
Payment Terms :
T/T, Western Union
Supply Ability :
6000 Pieces per Month
Delivery Time :
3-5 working days
Packaging Details :
54cm*46cm*19cm/2pcs
Power: :
240W
Luminous Flux: :
33600lm
Voltage :
90-305VAC
LED Brand :
Nichia 3030
Protection level :
IP66
IK: :
10
Product Size(mm): :
441*373*50
Lamp Body :
Pure Die-Casting Aluminum
Mounting :
Adjustable Bracket
Efficiency :
140lm / W
Lamp Type :
High Level Flood Light
Description

140lm / W IP66 240W LED Stadium Flood Light For High Pole Project Lighting , 90 - 305VAC​



Features

1. Patent fin aluminum heat sink structure

2. High quality aluminum processing technique

3. Special surface treatment process

4. High brightness LED light source

5. High efficiency and long life power supply

6. Unique patented thermal management design to ensure low ED junction temperature

7. Lighter weight for safety use and installation

8. Ultra high power to give ultra high brightness

9. Easy installation and maintenance, dust prevention, longer lifetime with high lumen

10. Energy saved, no UV and IR radiations, emits low heat

Product Details

Power 240W
Input Voltage 90 - 305VAC
Input Current 1.10A@220VAC
PF >0.9@220VAC
DC Output Voltage 48V
DC Output Current 4.65A
Dimming (Optional) 3 in one dimming(PMW, 1-10V,Resistor), DALI
CCT 4000k, 5000k, 5700K, 3000K and 2700K can be customized
Ra>80,5000K Typical Flux 31200lm±10%
Efficiency 130lm/W±10%
Ra>70,5000K Typical Flux 33600lm±10%
Efficiency 140lm/W±10%
LED Brand NICHIA 3030
Light Type Asymmetric and symmetric polarized light
Operation Temp. -40 ℃ to + 45 ℃
Storage Temp. -40 ℃ to + 85 ℃
Lifespan 45℃ , 50,000 hours
IP Class 66
IK Class 10
Lamp Body Color Grey or as customized
Product Size(mm) 441*373*50
Net Weight(kg) 6.37
Packing size(mm) 540*460*190
Gross Weight(kg) 13.5
Product Quantity Per Carton 2pcs
Installation Method Bracket Mount


90 - 305 V AC LED Stadium Flood Light 140LM/W IP66 240W High Pole Project Lighting Use


Beam Angle

90 - 305 V AC LED Stadium Flood Light 140LM/W IP66 240W High Pole Project Lighting Use
90 - 305 V AC LED Stadium Flood Light 140LM/W IP66 240W High Pole Project Lighting Use
90 - 305 V AC LED Stadium Flood Light 140LM/W IP66 240W High Pole Project Lighting Use
90 - 305 V AC LED Stadium Flood Light 140LM/W IP66 240W High Pole Project Lighting Use
90 - 305 V AC LED Stadium Flood Light 140LM/W IP66 240W High Pole Project Lighting Use
Accessories
90 - 305 V AC LED Stadium Flood Light 140LM/W IP66 240W High Pole Project Lighting Use

Light Distribusion Curve


90 - 305 V AC LED Stadium Flood Light 140LM/W IP66 240W High Pole Project Lighting Use


Installation Manual

90 - 305 V AC LED Stadium Flood Light 140LM/W IP66 240W High Pole Project Lighting Use
Applications

Garden Lighting,Park Lighting,Billboard Lighting,Landscape Lighting,Building Lighting,Stadium Lighting

90 - 305 V AC LED Stadium Flood Light 140LM/W IP66 240W High Pole Project Lighting Use
