Specifications
Brand Name :
SUNLUXX
Model Number :
FAL-100W
Certification :
CE RoHs
Place of Origin :
China
MOQ :
1
Price :
US$125 / PC, EXW Price
Payment Terms :
T/T, Western Union
Supply Ability :
6000 Pieces per Month
Delivery Time :
3-5 working days
Packaging Details :
54cm*46cm*19cm/2pcs
Power: :
100W
Luminous Flux: :
14000lm
Voltage :
90-305VAC
LED Brand :
Nichia 3030
IP Level: :
IP66
Driver: :
Sosen
Power Factor :
>0.95
CRI: :
Ra>70 , Ra>80
Warranty: :
5 years
Beam Angle: :
ANB, AWB, SNB, SWB
Description

Top Level IK10 LED Stadium flood light 100W Flood Light For Various Outdoor Lighting , Ferrari Design


Features

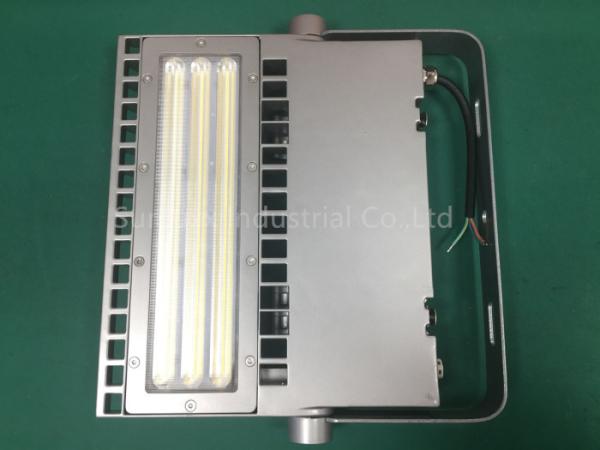

1. Lamp body is made of die-casting Aluminum alloy, exiguity Ferrari Idea and unique design, high quality and long life.

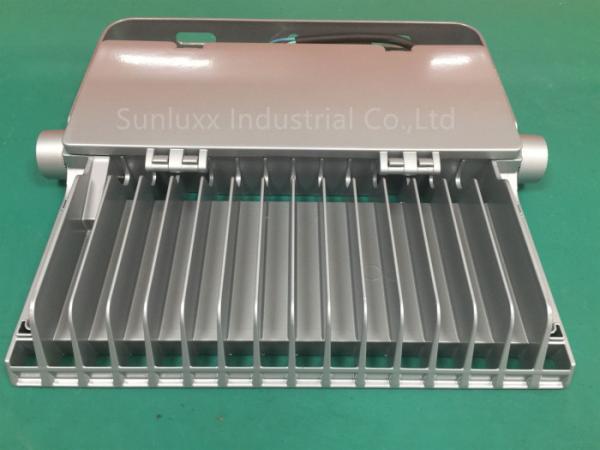

2. Integrated high terminal conductivity streamlined radiator, increase air circulation to ensure optimal heat dissipation efficiency.

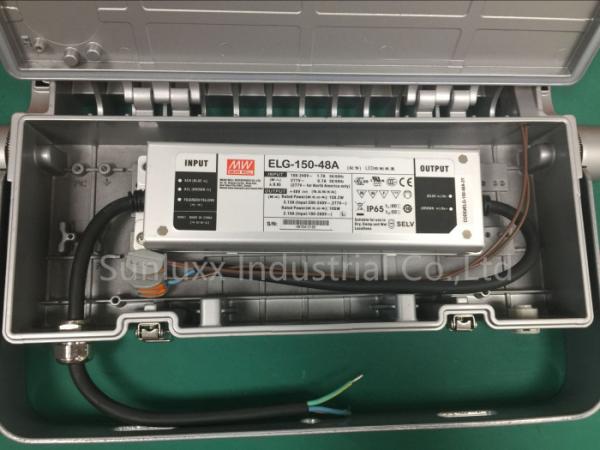

3. SOSEN UL approved driver ensure the optimal of the whole lamp, high prformace makes the lamp stable and long life of more than 50,000h, over temperature protection.

4. 140lm/W high brightness, Using NICHIA LED chips, low consumption, green for environment.

5. Save 80% more energy compared with troditional lighting fixtures.

Product Details

Power 100W
Input Voltage 90 - 305VAC
Input Current 0.45A@220VAC
PF >0.9@220VAC
DC Output Voltage 48V
DC Output Current 1.9A
Dimming (Optional) 3 in one dimming(PMW, 1-10V,Resistor), DALI
CCT 4000k, 5000k, 5700K, 3000K and 2700K can be customized
Ra>80,5000K Typical Flux 13000lm±10%
Efficiency 130lm/W±10%
Ra>70,5000K Typical Flux 14000lm±10%
Efficiency 140lm/W±10%
LED Brand NICHIA 3030
Light Type Asymmetric and symmetric polarized light
Operation Temp. -40 ℃ to + 45 ℃
Storage Temp. -40 ℃ to + 85 ℃
Lifespan 45℃ , 50,000 hours
IP Class 66
IK Class 10
Lamp Body Color Grey or as customized
Product Size(mm) 330*373*50
Net Weight(kg) 4.76
Packing size(mm) 540*460*190
Gross Weight(kg) 13.5
Product Quantity Per Carton 2pcs
Installation Method Bracket Mount


Ferrari Design 100 Watt LED Sports Ground Floodlights With Die Cast Aluminum Alloy Body

Beam Angle

Ferrari Design 100 Watt LED Sports Ground Floodlights With Die Cast Aluminum Alloy Body
Ferrari Design 100 Watt LED Sports Ground Floodlights With Die Cast Aluminum Alloy Body
Ferrari Design 100 Watt LED Sports Ground Floodlights With Die Cast Aluminum Alloy Body
Ferrari Design 100 Watt LED Sports Ground Floodlights With Die Cast Aluminum Alloy Body
Ferrari Design 100 Watt LED Sports Ground Floodlights With Die Cast Aluminum Alloy Body

Accessories


Ferrari Design 100 Watt LED Sports Ground Floodlights With Die Cast Aluminum Alloy Body

Light Distribusion Curve


Ferrari Design 100 Watt LED Sports Ground Floodlights With Die Cast Aluminum Alloy Body


Installation Manual

Ferrari Design 100 Watt LED Sports Ground Floodlights With Die Cast Aluminum Alloy Body
Applications

Garden Lighting,Park Lighting,Billboard Lighting,Landscape Lighting,Building Lighting,Stadium Lighting
