75W LED Sport Fields Flood Light IP66 Waterproof With Die Casting Aluminum Shell
75W LED Sport Fields Flood Light IP66 Waterproof With Die Casting Aluminum Shell
75W LED Sport Fields Flood Light IP66 Waterproof With Die Casting Aluminum Shell
75W LED Sport Fields Flood Light IP66 Waterproof With Die Casting Aluminum Shell
75W LED Sport Fields Flood Light IP66 Waterproof With Die Casting Aluminum Shell
75W LED Sport Fields Flood Light IP66 Waterproof With Die Casting Aluminum Shell
75W LED Sport Fields Flood Light IP66 Waterproof With Die Casting Aluminum Shell
75W LED Sport Fields Flood Light IP66 Waterproof With Die Casting Aluminum Shell
75W LED Sport Fields Flood Light IP66 Waterproof With Die Casting Aluminum Shell
75W LED Sport Fields Flood Light IP66 Waterproof With Die Casting Aluminum Shell
75W LED Sport Fields Flood Light IP66 Waterproof With Die Casting Aluminum Shell
75W LED Sport Fields Flood Light IP66 Waterproof With Die Casting Aluminum Shell
Specifications
Brand Name :
SUNLUXX
Model Number :
FAL-75W
Certification :
CE RoHs
Place of Origin :
China
MOQ :
1
Price :
US$129.31/PC , EXW price
Payment Terms :
T/T, Western Union
Supply Ability :
6000 Pieces per Month
Delivery Time :
3-5 work days
Packaging Details :
54cm*46cm*19cm/2pcs/carton
Wattage :
75W
Lumen :
10500lm
Input Voltage :
90-305VAC
LED Chip :
Nichia 3030
IP Class :
IP66
Driver :
MEANWELL
Power Factor :
> 0.95
IK :
10
Working Temp. :
-40℃ - -+45℃
Storage Temp. :
-40℃ - -+85℃
Color :
Grey
Mounting Way :
Adjustable Strong Bracket
Description

IP66 Die Casting Aluminum 75W LED Stadium Flood Light IK10 Area Flood Light , 140LM Per Watt


Features

1. Universal voltage 90-305VAC available

2. Excellent optical design, greatly improve the light utilization and evenness

3. IP65 rating for outdoor use

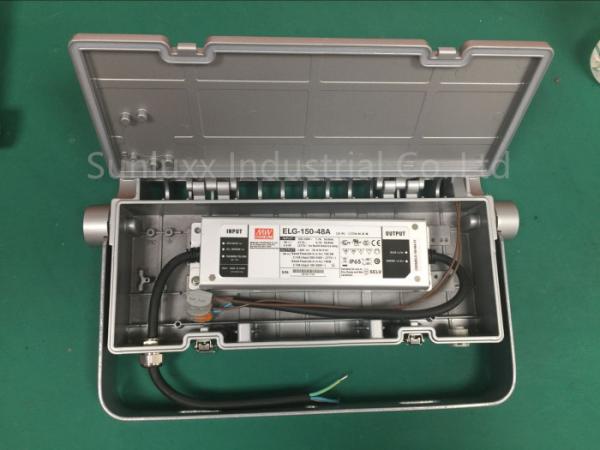

4. Using well-know high quality NICHIA LED chips, MEANWELL driver. Reliable and long life. Ferrari idea design, IP66, IK10 protection, strong wind resistance, various beam angle options, wide applications.

5. 75W/100W/150W/200W/240W for your options.

6. Instant start, no noise, no flickering

7. mounting brackets with adjustable angle 180 degree

8. We provide 5 years warranty


Technical Data

Power 75W
Input Voltage 90 - 305VAC
Input Current 0.68A@220VAC
PF >0.9@220VAC
DC Output Voltage 48V
DC Output Current 2.9A
Dimming (Optional) 3 in one dimming(PMW, 1-10V,Resistor), DALI
CCT 4000k, 5000k, 5700K, 3000K and 2700K can be customized
Ra>80,5000K Typical Flux 19500lm±10%
Efficiency 130lm/W±10%
Ra>70,5000K Typical Flux 21000lm±10%
Efficiency 140lm/W±10%
LED Brand NICHIA 3030
Light Type Asymmetric and symmetric polarized light
Operation Temp. -40 ℃ to + 45 ℃
Storage Temp. -40 ℃ to + 85 ℃
Lifespan 45℃ , 50,000 hours
IP Class 66
IK Class 10
Lamp Body Color Grey or as customized
Product Size(mm) 330*373*50
Net Weight(kg) 4.76
Packing size(mm) 540*460*190
Gross Weight(kg) 13.5
Product Quantity Per Carton 2pcs
Installation Method Bracket Mount



75W LED Sport Fields Flood Light IP66 Waterproof With Die Casting Aluminum Shell75W LED Sport Fields Flood Light IP66 Waterproof With Die Casting Aluminum Shell75W LED Sport Fields Flood Light IP66 Waterproof With Die Casting Aluminum Shell


Beam Angle

75W LED Sport Fields Flood Light IP66 Waterproof With Die Casting Aluminum Shell
75W LED Sport Fields Flood Light IP66 Waterproof With Die Casting Aluminum Shell
75W LED Sport Fields Flood Light IP66 Waterproof With Die Casting Aluminum Shell
75W LED Sport Fields Flood Light IP66 Waterproof With Die Casting Aluminum Shell
75W LED Sport Fields Flood Light IP66 Waterproof With Die Casting Aluminum Shell

Accessories


75W LED Sport Fields Flood Light IP66 Waterproof With Die Casting Aluminum Shell

Light Distribusion Curve


75W LED Sport Fields Flood Light IP66 Waterproof With Die Casting Aluminum Shell

Installation Manual


75W LED Sport Fields Flood Light IP66 Waterproof With Die Casting Aluminum Shell

Applications

Side Walk Lighting, Garden Lighting,Park Lighting,Billboard Lighting,Landscape Lighting,Building Lighting,Stadium Lighting.
