Specifications
Brand Name :
SUNLUXX
Model Number :
AHBL-150W
Certification :
CE RoHs
Place of Origin :
China
MOQ :
1
Price :
US$60.87/PCS unit,EXW price
Payment Terms :
T/T, Western Union
Supply Ability :
5000 Pieces per Month
Delivery Time :
5-8 work days
Packaging Details :
39cm*39cm*16cm/1pcs
Luminious Efficiency :
130Lm/W
Operating Temperature :
-40 ℃ ~45 ℃
Beam angle :
60 ° , 90 ° , 120 °
IK Class :
IK08
Waterproof Rate :
IP66
Luminious Flux :
19,500Lm
Description

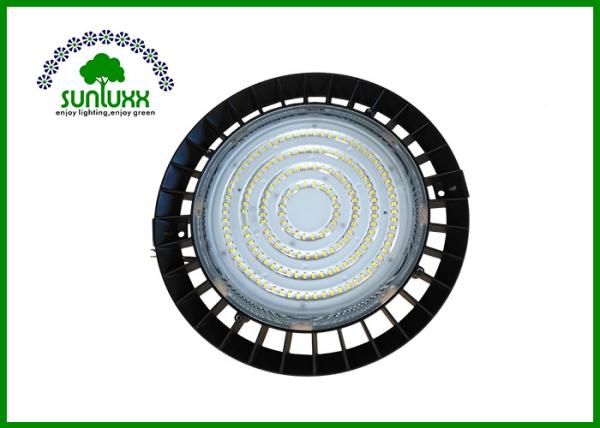

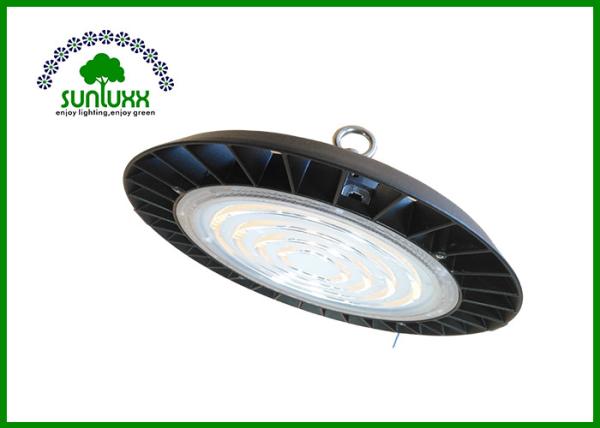

Thermal Protection IP66 150W LED Industrial High Bay 19,500Lm High Brightness

Features of 150W Industrial LED Highbays

1.Unique design with private tooling, fashionable and modern model

2.Newly designed motion sensor located in the middle of luminarie, save much installation cost

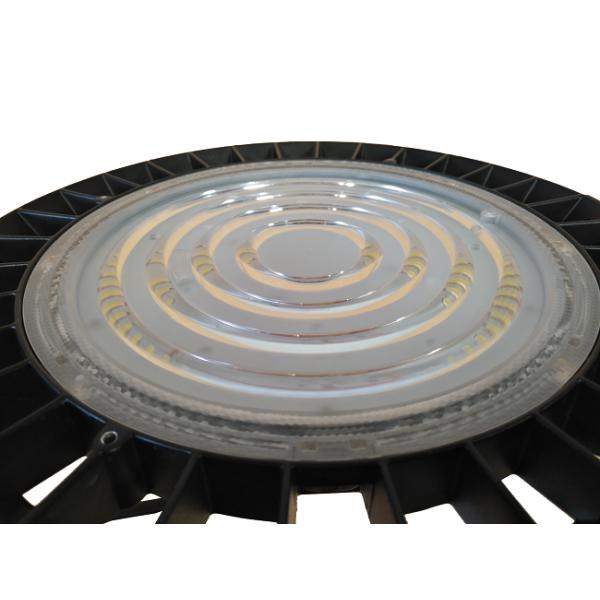

3.Latest optics lens clip on structure, Free-of-screws design, with 95% higher transmittance water wave lens

4.Dust-free new lamp housing will help to release heating much faster as well as to improve
the heat-sink system

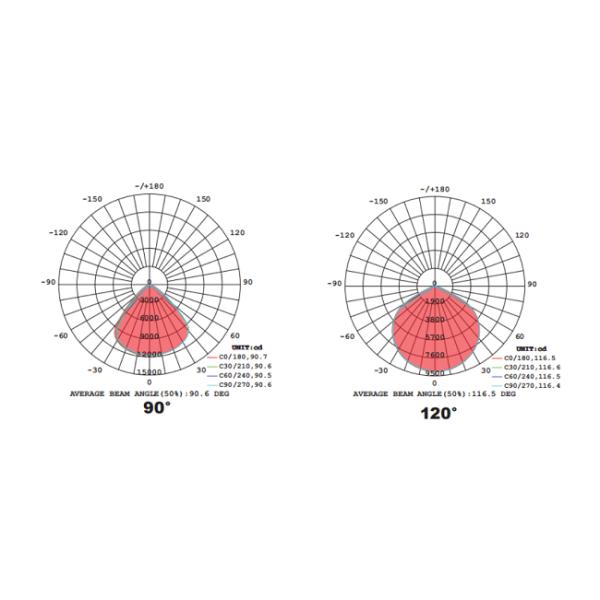

5.60/90/120 degree IES distribution selection, national listing lab tested with IES standard

Product details

Thermal Protection LED High Bay Warehouse Lighting Fixture 150W 19500Lm High Brightness

Thermal Protection LED High Bay Warehouse Lighting Fixture 150W 19500Lm High Brightness

Product code AHBL-100W AHBL-150W AHBL-200W
Power 100W 150W 200W
Input Voltage 90-305VAC
Input current 0.45A 0.68A 0.91A
PF >0.90
Dimming 0-10V,PWM
CCT 3000K,4000K,5000K,5700K

2835SMD

Typical Flux

13000Lm 19500Lm 26000Lm

3030SMD

Typical Flux

16000Lm 24000Lm 32000Lm
LED Brand OSRAM / CREE/LUMILEDS
Beam Angle 60/90/120 Degree
Operation Temp. -40℃~+45℃
Storage Temp. -40℃ ~ +85℃
Life Span 50000Hours
IP Class IP66
IK Class IK08
Certificate CE,RoHs
Body Color Black (RAL9005)
Net weight (kg) 2.44 3.11 3.59
Gross weight (kg) 3 3.85 4.47
Installation mode HookPoleBracket Mount

FAQ for 150W LED Industrial High Bay

Q1:Why choose Sunluxx Industrial Co.,Ltd?
Over 99% Positive Feedback From Our Customers.
Over 99% of our clients are forwarding us great feedbacks to our lamps, Our quality of LED lights with top certificates and good customer service is second to none and is proven by the fact that our customers have the belief and confidence to refer us to others. This statistic alone sets us apart from our competitors.

Q2:How we gain these great feedbacks ?
From Quality: Sunluxx use Brand NICHIA,CREE, LEDs in the lights, high Class Production Machinery, Testing Equipments, supported by Experienced Engineers, Mature QC Process for Quality Control,UL DLC, CE,ROHS,ISO Quality Management etc.

From Price: Sunluxx has about 2000 square meter production purchasing plans, this allow us to gain a comparatively lower purchasing costs than others from supplies, meanwhile, the lamp housing factories and other spare parts factories are offering us competitive price than others since our orders is big, which allows us to pass the competitive price on to our customers.

From Warranty: Sunluxx adopt 5 Years Warranty, to our customers from the purchased day on, when there is a problem, we will deal with it and offer the solution immediately according to the lamps usage situation, the quality resulted problem lamps will be replaced, the customers PI purchasing record is well recorded and it will not destroy or lost with any salers change, then there is always the solution in the 5 years Guarantee Period.

From Delivery: We offer 3-5 days production time for samples order, About 15-21 days for bulk orders. 4-6 days Door to door shipping time globally, then you can receive the order within Short period.

Sunluxx Warranty

1. Warranty time is 5 years and effected from the date of original purchase.
2. Warranty is only available for customers who purchase directly from Sunluxx, during the warranty time:


(1) New driver will be sent if driver failed.
(2) New LED board will be sent if LED failed.
(3) New Replacement will be sent depend on the level of damage or the specific causes of defectives.


3. Warranty does not cover damages caused by abuse, misuse,improper environmental conditions, natural disaster,wrong installation,etc.
Sunluxx focus on providing professional LED lighting solutions.

Please feel free to contact us:a.order@sunluxx.net.We are so happy to serve you.
