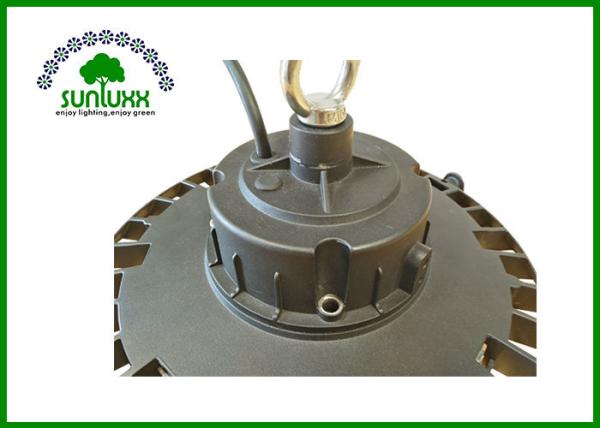

32,000Lm Industrial Fitting Dimmable 0-10V 200W High Bay UFO LED Light Patented Lens
Features of 200W AHBL High Bay UFO LED Light
1.Unique design with private tooling, fashionable and modern model
2.Newly designed motion sensor located in the middle of luminarie, save much installation cost
3.Latest optics lens clip on structure, Free-of-screws design, with 95% higher transmittance water wave lens
4.Dust-free new lamp housing will help to release heating much faster as well as to improve
the heat-sink system
5.60/90/120 degree IES distribution selection, national listing lab tested with IES standard
Product details
Product code AHBL-100W AHBL-150W AHBL-200W | |||
Power | 100W | 150W | 200W |
Input Voltage | 90-305VAC | ||
Input current | 0.45A | 0.68A | 0.91A |
PF | >0.90 | ||
Dimming | 0-10V,PWM | ||
CCT | 3000K,4000K,5000K,5700K | ||
2835SMD Typical Flux |
13000Lm(130lm/W) | 19500Lm(130lm/W) | 26000Lm(130lm/W) |
3030SMD Typical Flux |
16000Lm(160lm/W) | 24000Lm(160lm/W) | 32000Lm(160lm/W) |
LED Brand | OSRAM / CREE/LUMILEDS | ||
Beam Angle | 60/90/120 Degree | ||
Operation Temp. | -40℃~+45℃ | ||
Storage Temp. | -40℃ ~ +85℃ | ||
Life Span | 50000Hours | ||
IP Class | IP66 | ||
IK Class | IK08 | ||
Certificate | CE,RoHs | ||
Body Color | Black (RAL9005) | ||
Net weight (kg) | 2.44 | 3.11 | 3.59 |
Gross weight (kg) | 3 | 3.85 | 4.47 |
Installation mode | HookPoleBracket Mount |
Sunluxx Warranty
1. Warranty time is 5 years and effected from the date of original purchase.
2. Warranty is only available for customers who purchase directly from Sunluxx, during the warranty time:
(1) New driver will be sent if driver failed.
(2) New LED board will be sent if LED failed.
(3) New Replacement will be sent depend on the level of damage or the specific causes of defectives.
3. Warranty does not cover damages caused by abuse, misuse,improper environmental conditions, natural disaster,wrong installation,etc.
Sunluxx focus on providing professional LED lighting solutions.
FAQ for 200W High Bay UFO LED Light
Q1.How can i get a sample to check your quality?
After price confirmation,you can require for samples to check our quality.If you need the samples,we will charge for the sample fee.But the cost can be refundable after order confirmation when your quantity of the order is more about the M.O.Q
Sunluxx Services
1. Your inquiry related to our products or prices will be replied in 24 hours.
2. Well-trained and experienced staffs to answer all your inquires
3. OEM & ODM, any your customized lighting we can help to design and produce.
4. All the products must gained 24 hours aging testing before delivery to ensure the quality again.
5. Delivery time: 7 workdays for sample,10-15workdays for bulk order usually
6. Delivery way: DHL; UPS; FEDEX; BY SEA; BY AIR
7. 5 year warranty for our led products.
Please feel free to contact us:a.order@sunluxx.net.We are so happy to serve you!
