Specifications
Brand Name :
SUNLUXX
Model Number :
AHBL-150W
Certification :
CE RoHs
Place of Origin :
China
MOQ :
1
Price :
US$58.21/PCS unit,EXW price
Payment Terms :
T/T, Western Union
Supply Ability :
40000 Pieces per Month
Delivery Time :
5-8 work days
Packaging Details :
L390*W390*H160/1pcs
Input Voltage :
100-277VAC
Driver :
MOSO MTP160
Beam angle :
60 ° , 90 ° , 120 °
Installation Solution :
Chain Mount,Pole Mount and Surface Mount
IP Class :
IP66
Luminious Flux :
19500Lm
Description

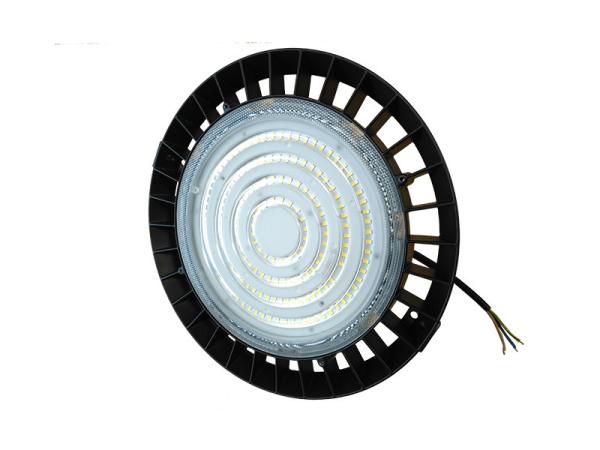

IP66 Outdoor Indoor Led High Bay Light Fittings 6000Lm 150W UFO Dimmable Function

Features of Cost Effective 150W LED Warehouse Indoor Light


Benefits:

• Popular type for industrial area
• Energy saving
• Environmental protection, no pollution
• Significant reduction in installation & maintenance cost
• Great reduction in shipment cost as small measure


Features:
• 3030 SMD LED, luminaire light efficiency 130lm/w
• MOSO MTP160 Driver , IP66 & IK08
• Aluminum led lamp housing, better heat dissipation
• With big aluminum PCB and SMD, better heat dissipation
• Consistent color rendering (CRI) > 70/80

• 4KV/6KV surge protection, over temperature protection

• Green ,energy saving,long and relialble life of 50,000 hours.
• Warranty: 5 years

Product details

Product code AHBL-100W AHBL-150W AHBL-200W
Power 100W 150W 200W
Input Voltage 90-305VAC
Input current 0.45A 0.68A 0.91A
PF >0.90
Dimming 0-10V,PWM
CCT 3000K,4000K,5000K,5700K

2835SMD

Typical Flux

13000Lm 19500Lm 26000Lm

3030SMD

Typical Flux

16000Lm 24000Lm 32000Lm
LED Brand OSRAM / CREE/LUMILEDS
Beam Angle 60/90/120 Degree
Operation Temp. -40℃~+45℃
Storage Temp. -40℃ ~ +85℃
Life Span 50000Hours
IP Class IP66
IK Class IK08
Certificate CE,RoHs
Body Color Black (RAL9005)
Net weight (kg) 2.44 3.11 3.59
Gross weight (kg) 3 3.85 4.47
Installation mode HookPoleBracket Mount

UFO LED High Bay Light Presentation


Application: Suitable shipyard, workshop,indoor tennis court, warehouse,toll gate,supermarket,exhibition hall, stadium, etc.

Outdoor Indoor Industrial High Bay Led Lighting Fixtures 6000Lm 150 Watt IP66

Outdoor Indoor Industrial High Bay Led Lighting Fixtures 6000Lm 150 Watt IP66

Dimension of LED High Bay Light


Outdoor Indoor Industrial High Bay Led Lighting Fixtures 6000Lm 150 Watt IP66

FAQ for LED High Bay Light


Q: 1. Can I have a sample order for 150W High Efficiency Industrial Led High Bay Light UFO Lamp Application For Warehouse Supermarket?
A: Yes,welcome sample order to test and check quality.


Q: 2. What about the lead time of 150W High Efficiency Industrial Led High Bay Light UFO Lamp Application For Warehouse Supermarket High Brightness Waterproof IP65 Rating 150W Led High Bay UFO Fixtures?
A:Sample needs 3-5 working days, mass production time needs 7-10 working days below 200pcs.


Q: 3. Do you have any MOQ limit for 150W High Efficiency Industrial Led High Bay Light UFO Lamp Application For Warehouse Supermarket order?
A: No MOQ, 1pc for sample cheking is available.


Q: 4. How do you ship the goods and how long does 150W High Efficiency Industrial Led High Bay Light UFO Lamp Application For Warehouse Supermarket?
A: We usually ship by DHL, UPS, Fedex or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.


Q: 5. How to proceed the order if want to print my logo on led light product?
A: Firstly, we will prepare artwork for visual confirmation, and next we will produce a real sample for your second confirmation. if mockup is ok, finally we will go to mass production.


Q: 6. Do you offer guarantee for 150W High Efficiency Industrial Led High Bay Light UFO Lamp Application For Warehouse Supermarket?
A: Yes, we offer 5 years warranty for free charge after sale.

Shipping


Outdoor Indoor Industrial High Bay Led Lighting Fixtures 6000Lm 150 Watt IP66
