Aluminum Housing Led High Bay Light Fittings 150W Milk Plant Lighting Fixture Food Grade High bay light
Aluminum Housing Led High Bay Light Fittings 150W Milk Plant Lighting Fixture Food Grade High bay light
Aluminum Housing Led High Bay Light Fittings 150W Milk Plant Lighting Fixture Food Grade High bay light
Aluminum Housing Led High Bay Light Fittings 150W Milk Plant Lighting Fixture Food Grade High bay light
Aluminum Housing Led High Bay Light Fittings 150W Milk Plant Lighting Fixture Food Grade High bay light
Aluminum Housing Led High Bay Light Fittings 150W Milk Plant Lighting Fixture Food Grade High bay light
Aluminum Housing Led High Bay Light Fittings 150W Milk Plant Lighting Fixture Food Grade High bay light
Aluminum Housing Led High Bay Light Fittings 150W Milk Plant Lighting Fixture Food Grade High bay light
Specifications
Brand Name :
SUNLUXX
Model Number :
CHBL-150
Certification :
ETL, CE,SAA,ROHS,NSF
Place of Origin :
China
MOQ :
1
Price :
US$119.9/PCS unit for EXW item
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
5000 Pieces per Month
Delivery Time :
5-8 work days
Packaging Details :
48cm*48cm*22cm/1pcs
Wattage :
150W
Color Temperature :
4000K 5000K 5700K 3000K
Installation Way :
Hook and Pendant
Input Voltage :
100-277VAC,50/60Hz
Luminous Flux :
24000Lm
Warranty :
5 years
LED Qty :
256PCS
CRI :
>70
Description

Aluminum Housing Food Grade High Bay Light 150W LED High Bay Milk Plant Lighting Fixture 160LM/W

NSF Food High Bay Light Parameters

Item Number CHBL-150
Power 150W
Input Voltage 90-305VAC
Input Current 0.47A@220VAC
PF >0.90@220VAC
Dimming Option MOSO 2 in 1 dimming (PWM, 0-10V)
Dimming Option

Meanwell

 3 in 1 dimming (PWM, 0-10V, Resistor) / Dali
Ra>80

Luminous Flux

 21000Lm
Ra>70

Luminous Flux

 24000Lm
LED Brand Cree SMD 3030 / LUMILEDS 3030
Beam Angle 60°90°120°
Operation Temp -40℃ ~ +45℃
Storage Temp -40℃ ~ +85℃
Lifespan 25℃ 50000Hours
IP rating IP69K
IK rating IK10
Certificates ETL, CE,SAA,ROHS,NSF
Lamp Body Color Orange( RAL2004)
Product Size(mm) 480*480*220
Gross Weight(kg) 6.8kg
Installation Way Hook Mount/Pendant Mount
Housing Die-Casting Aluminum

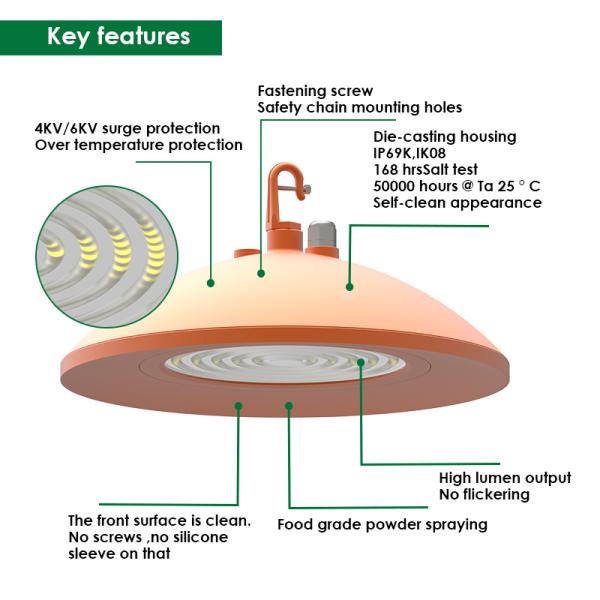

Features of LED Food High Bay Fixture

1.Luminous efficacy: 160LM/W

2.Wattage: 100W, 120W, 150W

3.PF＞0.9, THD<20%

4.Rated Life: 50,000hrs Warranty: 5years

5.Certifications: CE, RoHS ,SAA,NSF,ETL

6.Unique lens design offers multiple beam angles: 60°/90°/120°

7.IP65 rating is ideal for chanllenging environments like water, dust locations

8.The front surface is clean, no screws no silicone sleeve on that.

9. Meanwell driver and Moso driver for option, LUMILEDS 3030 LED chip

10.The color of lamp is orange RAL2004

NSF Food High Bay Light Installation & Application


NSF Food High Bay Light has two installation way, one is pendant, the other one is hook.

It can be widly used in below area:

  • Bread plant
  • Pharmaceutical plant
  • Food processing factory
  • Milk processing plant
  • Meat Processsing plant
  • Cold storage

Aluminum Housing Led High Bay Light Fittings 150W Milk Plant Lighting Fixture Food Grade High bay light

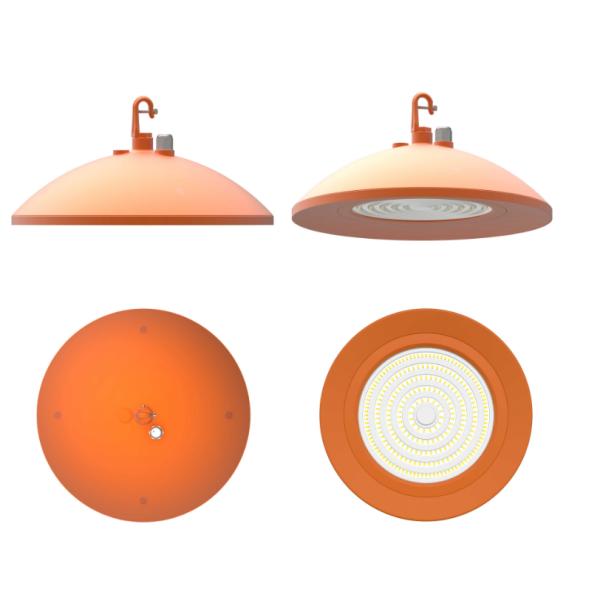

Different View of Food High Bay Light

Aluminum Housing Led High Bay Light Fittings 150W Milk Plant Lighting Fixture Food Grade High bay light

FAQ

Q1. Can I have a sample order for LED food high bay industrial light ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q2. What about the lead time?
A:We hold stock for raw materials, such as housing, LED chip, driver etc. 1-3 days for sample, 5-7 days for Qty. below 200pcs, 7-15 days above 300pcs.


Q3. Do you have any MOQ limit for LED food high bay industrial light order?
A: Low MOQ, 1pc for sample checking is available


Q4. What kind of certificates do you have for your LED food high bay industrial light ?
A: CE, ROSH,SAA,


Q5. How to proceed an order for LED food high bay industrial light ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.


Q6. Is it OK to print my logo on high quality led food industrial high bay light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.


Q7: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.

Q8:What color temperature are optional?
A: 4000K/5700K is standard for industrial use; 5000K is an option.

Shipping

Aluminum Housing Led High Bay Light Fittings 150W Milk Plant Lighting Fixture Food Grade High bay light



Product Detail

Aluminum Housing Led High Bay Light Fittings 150W Milk Plant Lighting Fixture Food Grade High bay lightAluminum Housing Led High Bay Light Fittings 150W Milk Plant Lighting Fixture Food Grade High bay light
