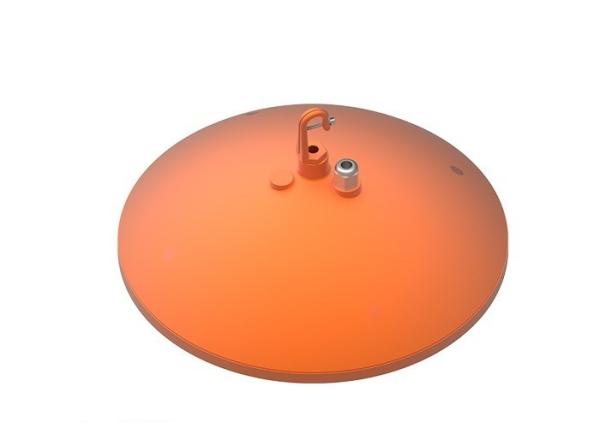

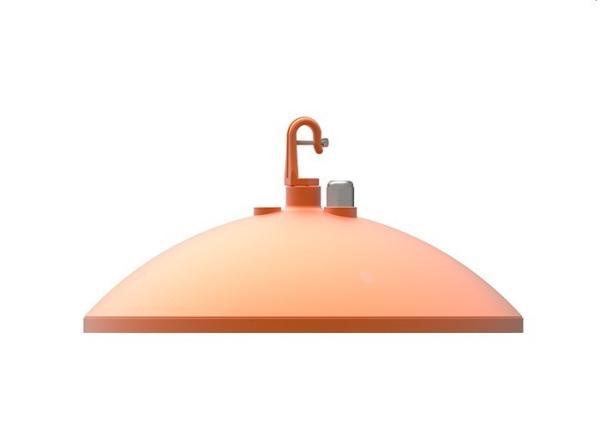

150LM/W LED High Bay Warehouse Lighting Fixture Hook Pendant With MOSO Driver
150LM/W LED High Bay Warehouse Lighting Fixture Hook Pendant With MOSO Driver
150LM/W LED High Bay Warehouse Lighting Fixture Hook Pendant With MOSO Driver
150LM/W LED High Bay Warehouse Lighting Fixture Hook Pendant With MOSO Driver
150LM/W LED High Bay Warehouse Lighting Fixture Hook Pendant With MOSO Driver
150LM/W LED High Bay Warehouse Lighting Fixture Hook Pendant With MOSO Driver
150LM/W LED High Bay Warehouse Lighting Fixture Hook Pendant With MOSO Driver
150LM/W LED High Bay Warehouse Lighting Fixture Hook Pendant With MOSO Driver
150LM/W LED High Bay Warehouse Lighting Fixture Hook Pendant With MOSO Driver
150LM/W LED High Bay Warehouse Lighting Fixture Hook Pendant With MOSO Driver
150LM/W LED High Bay Warehouse Lighting Fixture Hook Pendant With MOSO Driver
150LM/W LED High Bay Warehouse Lighting Fixture Hook Pendant With MOSO Driver
Specifications
Brand Name :
SUNLUXX
Model Number :
CHBL-100
Certification :
ETL, CE,SAA,ROHS,NSF
Place of Origin :
China
MOQ :
1
Price :
US$98.88/PCS unit for EXW item
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
5000 Pieces per Month
Delivery Time :
5-8 work days
Packaging Details :
48cm*48cm*22cm/1pcs
Wattage :
100W
Color Temperature :
4000K 5000K 5700K 3000K
Installation Way :
Hook and Pendant
Input Voltage :
100-277VAC,50/60Hz
Luminous Flux :
15000Lm
Warranty :
5 years
LED Qty :
176PCS
CRI :
>70
Description

UFO Food Grade High Bay Light 150LM/W LED High Bay Lighting Fixture Hook and Pendant with MOSO driver


NSF Food High Bay Light Parameters

Item Number CHBL-100
Power 100W
Input Voltage 90-305VAC
Input Current 0.47A@220VAC
PF >0.90@220VAC
Dimming Option MOSO 2 in 1 dimming (PWM, 0-10V)
Dimming Option

Meanwell

 3 in 1 dimming (PWM, 0-10V, Resistor) / Dali
Ra>80

Luminous Flux

 14000Lm
Ra>70

Luminous Flux

 16000Lm
LED Brand Cree SMD 3030 / LUMILEDS 3030
Beam Angle 60°90°120°
Operation Temp -40℃ ~ +45℃
Storage Temp -40℃ ~ +85℃
Lifespan 25℃ 50000Hours
IP rating IP69K
IK rating IK10
Certificates ETL, CE,SAA,ROHS,NSF
Lamp Body Color Orange( RAL2004)
Product Size(mm) 480*480*220
Gross Weight(kg) 6.8kg
Installation Way Hook Mount/Pendant Mount
Housing Die-Casting Aluminum


Photometrics

150LM/W LED High Bay Warehouse Lighting Fixture Hook Pendant With MOSO Driver

Product Dimension

150LM/W LED High Bay Warehouse Lighting Fixture Hook Pendant With MOSO Driver
Features of LED Food High Bay Fixture

1.This Food High bay light Luminous efficacy can reach 150LM/W This
2.This product's Wattage had 100W, 120W, 150W for option
3.This product is mainly be used in clean food/ pharmaceutical and any other manufacture plant
4.Rated Life: 50,000hrs Warranty: 5years
5.This light had CE, RoHS ,SAA,NSF,ETL Certificate.
6.Modern lens design offers multiple beam angles: 60°/90°/120°
7.IP65 rating is ideal for chanllenging environments.
8.The product surface coating get REACH/ROHS/HALOGEN test report by SGS
9. This UFO Food High Bay Light has two driver brand for option,


NSF Food High Bay Light Installation


NSF Food High Bay Light has two installation way, one is pendant, the other one is hook.
150LM/W LED High Bay Warehouse Lighting Fixture Hook Pendant With MOSO Driver
Application

NSF LED food High bay Light can be widly used in below area:

  • Bread plant
  • Pharmaceutical plant
  • Food processing factory
  • Milk processing plant
  • Meat Processsing plant
  • Cold storage

150LM/W LED High Bay Warehouse Lighting Fixture Hook Pendant With MOSO Driver


FAQ

Q1. Can I have a sample order for LED food high bay industrial light ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:We hold stock for raw materials, such as housing, LED chip, driver etc. 1-3 days for sample, 5-7 days for Qty. below 200pcs, 7-15 days above 300pcs.
Q3. Do you have any MOQ limit for LED food high bay industrial light order?
A: Low MOQ, 1pc for sample checking is available
Q4. What kind of certificates do you have for your LED food high bay industrial light ?
A: CE, ROSH,SAA,
Q5. How to proceed an order for LED food high bay industrial light ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
150LM/W LED High Bay Warehouse Lighting Fixture Hook Pendant With MOSO Driver
Q6. Is it OK to print my logo on high quality led food industrial high bay light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.

Q8:What color temperature are optional?
A: 4000K/5700K is standard for industrial use; 5000K is an option.

Sunluxx After-sales Service


1. Warranty time is 5 years and effected from the date of original purchase.
2. Warranty is only available for customers who purchase directly from Sunluxx, during the warranty time:
(1) New driver will be sent if driver failed.
(2) New LED board will be sent if LED failed.
(3) New Replacement will be sent depend on the level of damage or the specific causes of defectives.

Shipping& Payment terms


150LM/W LED High Bay Warehouse Lighting Fixture Hook Pendant With MOSO Driver
