Non-Inductive High Voltage Power Resistor Thick Film Without Coating
Non-Inductive High Voltage Power Resistor Thick Film Without Coating
Non-Inductive High Voltage Power Resistor Thick Film Without Coating
Non-Inductive High Voltage Power Resistor Thick Film Without Coating
Specifications
Brand Name :
ZENITHSUN
Model Number :
RHP,RIZ
Certification :
RoHs
Place of Origin :
Shenzhen,China
MOQ :
20pcs
Price :
USD2.00-USD60.00
Payment Terms :
T/T, L/C, D/A, D/P, Western Union,paypal
Supply Ability :
1000pcs/week
Delivery Time :
10-12 working days
Packaging Details :
cartons /wooden case
Rated Power :
0.5W-300W
Resistance :
1Ω - 1GΩ
Tolerance :
±5%,±10%
Colour :
without coating
Temperature Coefficient :
20PPM-150PPM
Lead Material :
Gold Plated or copper,tin-plated
Description

Non-Inductive Thich Film High Voltage Power Resistors without coating

Structure :

1.Screen printing,resistor film printed layer with thickness of tens of microns,sintered at temperature.

The matrix is 95% aluminum oxide ceramic,with good thermal conductivity and high mechanical strength.

The resistor film with precious metal ruthenium slurry,with stable electrical properties.

2.The products are available with a silicone or epoxy coating,feature a wide range of tolerances and temperature coefficients.

Features:

1.Non-Inductive,Resistance-high voltage,small size,high power,long life,moisture resistance,high stability .
2.Lead Material:copper,tin-plated ,bolt /screw end caps ;

3.High voltage power resistors series combine proprietary non-inductive resistance system and design to achieve low temperature coefficient,low voltage coefficient,high stability,increased high operating voltages and high power ratings.

Specifications :

Performance Charactertics
Test Conditions of Test Testing Results
Resistance Tolerance Testing Voltage ≤3V,Ambient Temperature 25℃ B--C--D---F---G---J--K
Temperature Coefficients R0:Room Temperature(T0)Resistance Value
R1:Room Temperature T0+100℃(T1)Resistance Value		 ±15～±1000PPM/℃
Short Time Overload 5 times rated power for 5 seconds,but not over 1.5 times Umax △R≤±(0.2％+0.1Ω)
Insulation Resistance 1000V DC ≥10GΩ1Min
Load Life at rated voltage,90 min "On",30 min "Off" ,total 1000hours △R≤±(0.5％+0.1Ω)
Humidity Resistance Temp.:40±2℃ ,Humidity:90％-95％.240hours △R≤±(0.4％+0.1Ω)
High /Low Temperature Resistance store at - 65 ℃ ~ 155 ℃ for 2H ,cycle for 5 times △R≤±(0.2%+0.1Ω)
Operating Temperature -55℃～125℃ /

Applications:

Precision High Voltage Power Resistors are designed to meet the demanding requirements of TWT power suppliers,electron microscopes,X-ray systems,high resolution CRT displays,geophysical instruments and power transmission lines,the ideal solution for all applications in X-ray technology, high voltage measuring technology and energy transmission systems.

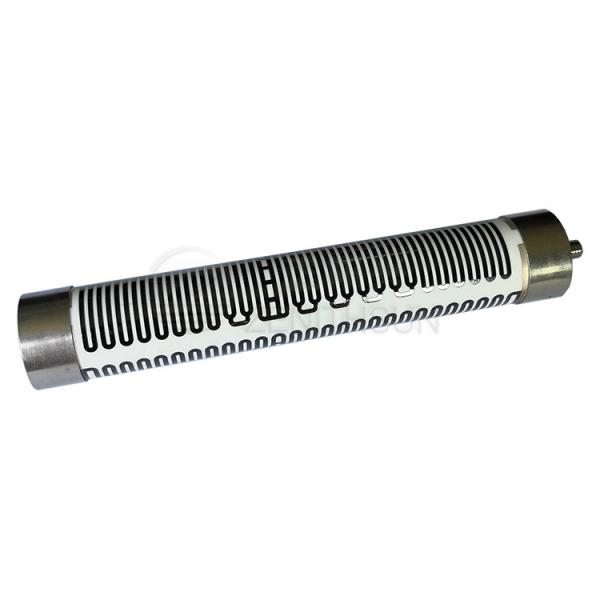

Product Image:

Non-Inductive High Voltage Power Resistor Thick Film Without Coating

How to make an order:
Model no._ Value_Tolerance

For example:
RIZ/RHP-39 200M 1%
