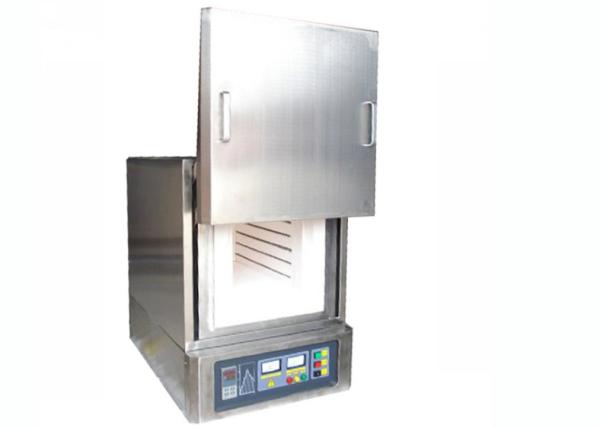

1100℃ Electric Lab Burning Ashing Muffle Furnace Fast Heating
1100℃ Electric Lab Burning Ashing Muffle Furnace Fast Heating
1100℃ Electric Lab Burning Ashing Muffle Furnace Fast Heating
1100℃ Electric Lab Burning Ashing Muffle Furnace Fast Heating
Specifications
Brand Name :
SUPER
Model Number :
SP-1200B-12L
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram, D/A
Supply Ability :
500 sets/month
Delivery Time :
7-10 working days
Packaging Details :
strong plywood case for national shipping
Name :
Ashing Muffle Furnace
Classification :
Experimental heat treatment
Heating element :
Resistance wire
Operation temperature :
1100℃
Structure :
Double Layer
Function :
Burning and Ashing
Effective size :
4"*4"*4"
Description

1100℃ Electric Lab Burning Ashing Muffle Furnace

1100℃ Electric Lab Burning Ashing Muffle Furnace Fast Heating

What is an Ashing Muffle Furnace ?

The purpose of an ashing muffle furnace is to burn off or “ash” organic material from a sample. This process involves subjecting the sample to high temperatures, usually ranging from 500 to 1200 degrees Celsius, in order to completely combust the organic materials, leaving behind only the inorganic residue.

Ashing Furnace Features:

1 Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.

2 Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.

3 Built-in computer interface.

4 Long life type B thermocouple.

5 CE compliant

Technical data of Ashing Muffle Furnace

Items Specification
Product SP-1200B-1L ashing muffle furnace
Useful chamber size 100*100*100mm(1L W * H* D)
Max Temp 1200℃ ( < 3 hrs)
Working Temp 0-1100℃ (adjustable, for long time )
Temp accuracy ±1 ℃
Heating rate 1-20℃/min (adjustable,advise less than 15℃/min)
Heating Element Resistance wire
Furnace liner Light durable ceramic fiber plate
Rated Power: 1 KW
Furnace shell Double shells with fan cooling
Temp. measurement By K type thermocouple
Temp. Control 30 segments programmable and PID auto control
Temperature display mode Four Figure Liquid Crystal Display
Furnace surface temperature ≤55℃
Working Voltage AC,1-phase ,220V ,50/ 60HZ
Optional part Can be connected with computer if customer need
Freebies 1.oven glove 1 set ; 2. Pliers 1pc

Standard Parts:

  • High-temperature gloves
  • Crucible clip
  • Operation Manual

Optional Parts:

  • 7-inch touch screen
  • Observation Hole
  • Furnace Furniture
  • Alumina crucible
  • Software

1100℃ Electric Lab Burning Ashing Muffle Furnace Fast Heating

SUPER MACHINERTY ASHING FURNACE PACKAGE:


1 Standard exported package: lnternal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.


ASHING FURNACE DELIVERY TIME:
7 - 20 days after confirming order, detail delivery date should be decided according to productionseason and order quantity.
