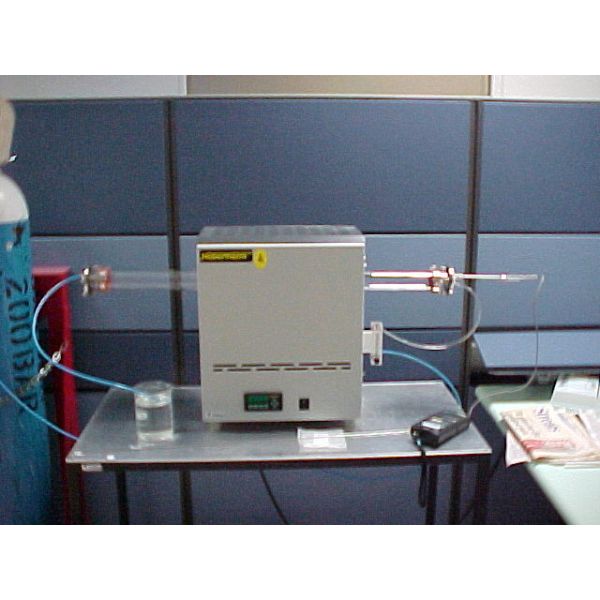

1700C 10Pa High Temperature Electric Tube Vacuum Furnace Fast Heating
1700C 10Pa High Temperature Electric Tube Vacuum Furnace Fast Heating
Specifications
Brand Name :
SUPER
Model Number :
SP-1700T
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
300sets per month
Delivery Time :
7-15 working days
Packaging Details :
Strong plywood case for export
Product name :
Electric Tube Vacuum Furnace
Operation Temperature :
1500℃/1600℃
Heating Element :
MoSi2 rod
Insulation material :
light alumina ceramic fiber board
Tube Diameter :
40/60/80/100mm
Controller :
30segments programmable and PID auto control
Temperature Accuracy :
±1℃
Max. vacuum :
-0.1MPa
Usage :
High Temperature Sintering
Description

1700C 10Pa High Temperature Electric Tube Vacuum Furnace ​

1700C 10Pa High Temperature Electric Tube Vacuum Furnace Fast Heating

Brief introduction of high temperature electric tube vacuum furnace:

1700C electric tube vacuum furnace use high pure alumina as furnace chamber with excellent heat-insulation effect and symmertrical temperature uniform. Working temperature from 200℃ to1600℃ is available.Precise and advanced auto temperature controller with temperature accuracy+/-1C.

It's widely used in the labs of university and research Institution, also can used in factory for production.

Eelectric tube vacuum furnace has following features :

1.Excellent temperature uniformity.
2.30 Segment Easy Operation PID Programmable Temperature Controller, allow to control heating rates, time holds and cooling rates.
3.One Year Limited Warranty on All Electronic Parts.
4.Quality heating elements ensure the longest heating element life, best heat radiation properties and minimum distortion of heating elements at high temperature.
5.All models use Ceramic fiber board lining to ensure energy efficiency.
6. A safety interlock system to shut off power when furnace door open.

Technical parameter of SUPER 50*300mm tube vacuum furnace :

Product name and model SP-1700T Electric Vacuum Tube Furnace
Heating tube size(OD×L) Φ 50 x300 mm (2.0 "x12")
Chamber insulation materials lightweight aluminum oxide fiber Ceramic
Maximum Temperature 1700°C (Working time Not more than 3 hours.)
Working Temperature 400-1600°C (justierbar, continuously Work)
Temperature controller way Based on the microprocessor 30 segments programmable and PID auto control
Heating Rate 1--15°C/min (justierbar)
Temperature accuracy +/-1°c
Sensor of measuring Temperature K type thermocouple
Heating elements MoSi2 rod
Ultimate vacuum -0.1MPa (or 10Pa)
Vacuum pump specifications Model TW-0.5A;pumping rate:0.5L/s;Power:120W
Furnace shell structure Double ventilation cooling structure
Temperature display mode four figure liquid crystal display
Working power AC 1-phase, 110-240 V 50/60Hz (User Choose any)
Rated power 2KW
Spare function installed computer communication module and RS485 communication interface, to realize the remote control

SP-1700T electric tube vacuum furnace standard model

Model Heating zone (OD×L mm) Work power Vacuum pump specifications
SP-1700T-53 Φ50x300 mm(2.0"x12")

AC

1-phase/3-phase

110V-400V

50Hz/60Hz.

 TW-0.5A;0.5L/S;120W;110V/220V
SP-1700T-54 Φ50x400 mm(2.0"x16") TW-0.5A;0.5L/S;120W;110V/220V
SP-1700T-55 Φ50x500 mm(2.0"x20") TW-0.5A;0.5L/S;120W;110V/220V
SP-1700T-63 Φ60x300 mm(2.5"x12") TW-0.5A;0.5L/S;120W;110V/220V
SP-1700T-64 Φ60x400 mm(2.5"x16") TW-0.5A;0.5L/S;120W;110V/220V
SP-1700T-65 Φ60x500 mm(2.0"x20") TW-0.5A;0.5L/S;120W;110V/220V
SP-1700T-83 Φ80x300 mm(3.2"x12") TW-0.5A;0.5L/S;120W;110V/220V
SP-1700T-84 Φ80x400 mm(3.2"x16") TW-1A;1L/S;120W;110V/220V
SP-1700T-104 Φ100x400 mm(4.0"x16") TW-1A;1L/S;120W;110V/220V

Delivery times :

♥ For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days;

♥ Other customized sizes the delivery time is from 15 days to 30 days according to different products request.

Our Warranty :

Warranty: One year limited warranty with lifetime support, excluding heating element and ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.

Our advantages:

♥ We are a manufacturer in China. So we can control the cost well.
♥ We use the top material in our furnace, imported ceramic fiber and accuracy temperature controller.

♥ We supply good service after sale, you can be assured about that

1700C 10Pa High Temperature Electric Tube Vacuum Furnace Fast Heating
