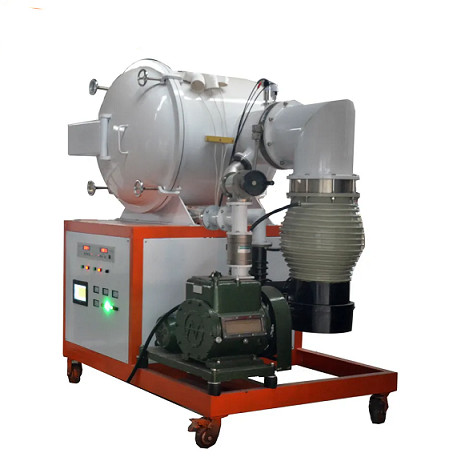

High Vacuum Heating Furnace 1600 degree 12L MoSi2 Heating

What is a high vacuum heating furnace ?

A high vacuum furnace is a type of furnace that is designed to operate under very low levels of pressure, typically in the range of 10^-3 torr or lower. The main purpose of a high vacuum furnace is to heat materials in a vacuum environment to facilitate various processes, such as sintering, brazing, annealing, and heat treatment. The low-pressure environment helps to prevent contamination of the material being processed, which can be critical for certain applications like electronic and aerospace components. Typical features of a high vacuum furnace include a vacuum chamber, heating elements, temperature controls, cooling systems, and gas handling systems.

High vacuum heating furnace features:

A. Good temperature uniformity, three-stage heating, computer temperature control, automatic PID adjustment;
B. External circulation air cooling system, high-efficiency heat exchanger, uniform cooling of the workpieces in all directions, fast cooling speed, uniform cooling;
C. Double heat exchanger structure; significant reduction in cooling time;
D. 300kg protective loading sintering furnace, the control box adopts fully mechanical drive, the material can stop at any position, reliable operation and easy maintenance.

High Vacuum Heating Furnace Technical Data

1700Type High Vacuum Heating Furnace​ Model

Detail Vacuum system of Vacuum heating furnace, Vacuum Melting Furnace,

Mechanical pump

Model: 2X-30

Ultimate pressure: 6x10-2

Pumping speed: 30L/S

Consumption of pumping oil: 4.5L

Heating power: 3 kW

Consumption of cooling water: 480L/H

Rotation speed of main shaft: 430rpm

Warranty for 1700C High Vacuum heating furnace

One year limited warranty with lifetime support, excluding heating element

and ceramic tube damaged by user.

Attention: Any damages caused by the use of corrosive and acidic gases, and any damage

from wrong operate and use are not under this coverage
