Mosi2 Heating Element Mosi2 Electric Heater for Kilns

What is Mosi2 Electric Heater?

1. SUPER 1700, 1800, 1900 MoSi2 electric muffle furnace heater for muffle furnace are extensively used in the industries of metallurgy, glass, ceramic refractory,crystal electronic device, industrial furnace manufacture, etc.. It is an essential ideal element when the products are sintering in the high temperature.

2. Under the oxidizing atmosphere, the maximum operating temperature is 1800, the resistance of the heating element of silicon molybdenum rod increases rapidly with the temperature increasing, and the resistance value is stable when the temperature is constant.Under normal conditions, the resistance of elements does not change with the service time, so the new and old elements can be mixed.

3. According to the structure, working atmosphere and temperature of the heating equipment, the correct selection of the surface load of the heating element is the key to the service life of the element.

Attention: MoSi2 elements can not be used in 400 to 700 °C for a long time, otherwise, it will be powered and damaged due to strong oxidizing action in low temperature.

MoSi2 Electric Heater for furnace:
Molybdenum disilicide(MoSi2) heating elements for element temperatures up to 1800C(3270F), Our MoSi2 heating elements are available as straight or bent elements in a wide range of shapes and sizes, All characterized by long life and consistant perfomance.
1. Specification:
Grade: 1700/1800
Dia: 3/6, 4/9, 6/12, 9/18, 12/24 etc.

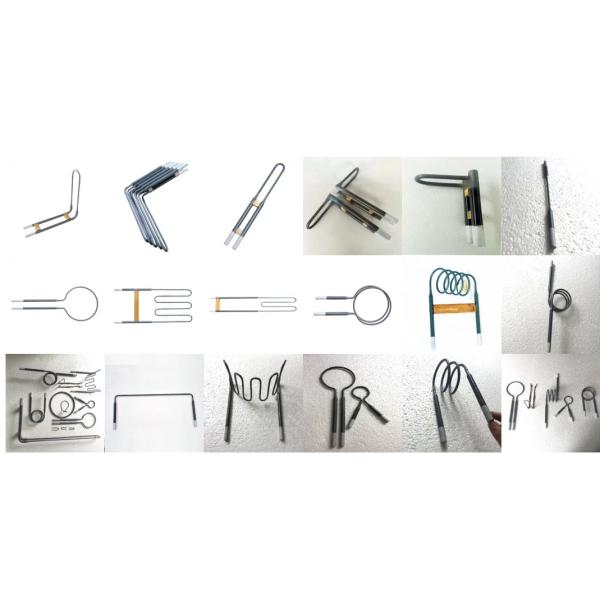

Type: I, U, W, Pole, and U-right angle shapes, etc
And we can produce according to your requests long time use in the temperature range of 400-700°C, otherwise, the element will be powdering for the strong oxidation under low temperature.

Application of Mosi2 Electric Heater Heating Element​:

Physcial property of molybdenum disilicide Mosi2 Electric Heater Element:

Packaging & Shipping

1. From the inside to outer packaging, is foam sponge, carton, wooden case.

2. Sea or Air transportation, DHL express.

3. Please make sure the 'shipping address' is your confirmed address.
4. We do check everything in good condition before we ship your parcel out.
5. We will process your order ASAP after payment is confirmed.

Our Services

1. Timely response,

Timely response to your inquiry, multiple choice recommendations based on your demand, quickly respond mails and provide solutions.

2. Free sample

Sample and trial order is accepted for the quality evaluation.

3. Strict quality control

Arrange production on time and control quality strictly.

4. Shorter delivery time.

Book the earliest vessel or plane to guarantee the delivery time.

Please tell us the following data of molybdenum disilicide MoSi2 rod heating element when send enquiry to us :

d = the diameter of hot zone ?

c = the diameter of cold zone ?

Le = the length of hot zone ?

Lu = the length of cold zone ?

a=Shank spacing

How many pcs ?
