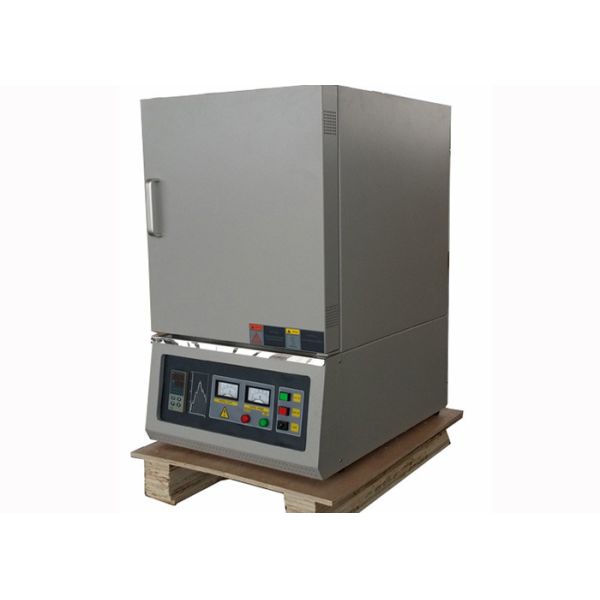

16kw Electric Muffle Furnace
16kw Electric Muffle Furnace
Specifications
Brand Name :
SUPER
Model Number :
SP-1700B-36L
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
400sets/month
Delivery Time :
10-15 working days after down payment
Packaging Details :
plywood case
Product :
Sample Analysis Furnace
Max. temp :
1700℃
Operation temperature :
1600℃
Rated power :
16kw
Chamber size :
300x300x400mm
Voltage :
According demands
Type :
High Temp Furnace
Heating rate :
Max 20C/min
Description

1700C Electric Water Quality Sample Analysis Furnace MoSi2 Heating Rod

Introduction of Electric Furnace:


The high-temperature muffle furnace is also called the following names: electric furnace, resistance furnace, Maofu furnace, muffle furnace, horse boiling furnace.

High temperature muffle furnaces are generally divided into 1000℃, 1200℃ muffle furnaces, 1400℃ muffle furnaces, 1600℃, 1700℃ muffle furnaces according to the rated temperature.

Application Range of Electric Furnace:


(1) Thermal processing, cement, building materials industry, thermal processing or processing of small workpieces.

(2) Pharmaceutical industry: used for drug inspection, pretreatment of medical samples, etc.

(3) Analytical chemistry industry: as a sample processing in water quality analysis, environmental analysis and other fields. It can also be used for petroleum and its analysis.

(4) Coal quality analysis: used to determine moisture, ash content, volatile content, ash melting point analysis, ash composition analysis, elemental analysis. It can also be used as a general ashing furnace.

Technical parameter of electric furnace :

Items Specification
Product SP-1700B-36L high temperature metal melting furnace
Useful chamber size 300*300*400mm(36L W * H* D)
Max Temp 1700℃ ( < 3 hrs)
Working Temp 100-1600℃ (adjustable, for long time )
Temp accuracy ±1 ℃
Heating rate 1-20℃/min (adjustable,advise less than 15℃/min)
Heating Element MoSi2 rod heating element
Furnace liner Light durable ceramic fiber plate
Rated Power: 16KW
Furnace shell Double shells with fan cooling
Temp. measurement By B type thermocouple
Temp. Control 30 segments programmable and PID auto control
Temperature display mode Four Figure Liquid Crystal Display
Furnace surface temperature ≤55.C
Working Voltage AC,3-phase ,380V ,50/ 60HZ
Optional part Can be connected with computer if customer need
Freebies 1.oven glove 1 set ; 2. Pliers 1pc

Stanard models of SUPER MUFFLE FURNACE:

Model Max. Temp. Chamber size(WxHxD mm) Working voltage and power
SP-1700B-1L 1700℃ 100x100x100mm(4”x4”x4”) AC,1-phase,220V/1.5KW
SP-1700B-3.4L 1700℃ 150x150x150mm (6"x6"x6") AC,1-phase,220V,3.5KW
SP-1700B-4.5L 1700℃ 150x150x200mm (6"x6"x8") AC,1-phase,220V.4.5KW
SP-1700B-8L 1700℃ 200x200x200mm (8"x8"x8") AC,1-phase,220V,6KW
SP-1700B-12L 1700℃ 200x200x300mm (8"x8"x12") AC,1-phase,220V,8KW
SP-1700B-18.8L 1700℃ 250x250x300mm (10"x10"x12") AC,3-phase,220V,11KW
SP-1700B-36L 1700℃ 300x300x400mm (12"x12"x16") AC,3-phase,380V,16KW
SP-1700B-49L 1700℃ 350x350x400mm (14"x14"x16") AC,3-phase,380V,21KW
SP-1700B-64L 1700℃ 400x400x400mm (16"x16"x16") AC,3-phase,380V24KW
SP-1700B-125L 1700℃ 500x500x500mm (20"x20"x20") AC,3-phase,380V,36KW
SP-1700B-216L 1700℃ 600x600x600mm (24"x24"x24") AC,3-phase,380V,48KW

Our advantages:

♥ We are a manufacturer in China. So we can control the cost well.
♥ We use the top material in our furnace, imported ceramic fiber and accuracy temperature controller.

♥ We supply good service after sale, you can be assured about that

Our service :

♥ Reply your inquiry and questions in 24 hours.

♥ Our professional technicians answer all your questions in English.

♥ Customized design is available.
