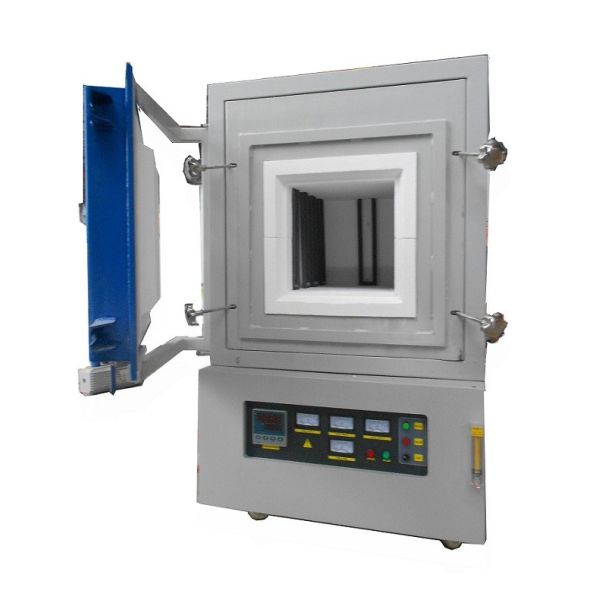

Industrial Furnace MoSi2 Heater Dental Lab Burnout Furnace Heating

What is Silicon Molybdenum Rod?
MoSi2 Heater rod heating element rod is a kind of resistance heating element made from Molybdenum Disilicide. It can be exerted under the high temperature of the oxidated atmosphere. MoSi2 heating element rod has the unique function of high temperature anti-oxidation.

MoSi2 heater rod electric muffle furnace heater for muffle furnace are extensively used in the industries of metallurgy, glass, ceramic refractory,crystal electronic device, industrial furnace manufacture, etc.. It is an essential ideal element when the products are sintering in the high temperature.

It should be pointed out that element cannot be used for rather long time in 500-1700°C, or it will be powdered owing to the strong oxidizing action in low temperature.


Heating element installed in furnace

Physical property of Silicon Molybdenum Rod :

Silicon Molybdenum Rod technical data:

Silicon Molybdenum Rod characters:
1. diameter:3/6mm;6/12mm;9/18mm;12/24mm
2. length:Lu length from 150 to 700mm,Le length from 150 to 600mm,customized is available .
3. operation temperature: from 500C to 1700.C .Max temperature can up to 1800.C
4. shape : U type ; W type ;straight type ;L type
5. function: ceramic ,magnetic material,glass ,metallurgy ,fireproofing material furnace.
Mosi2 heating element consists of hot zone and cold zone, the welding point is beautiful ,smoothly, without bump

The Advantages of Molybdenum Disilicide Heating Elements from SP :
1· Economical, clear and safe.
2· Superior oxidation resistance, low corrosion.
3· Little deformation and better radiance.
4· Long service life, easy installation and maintenance.
5· Efficiently apply a wide range of products and atmospheres
6. Our fast and professional transportation:

Packing and shipping :

Packaging Details: Packed with sponge and box case, and then put it into wooden case.

Port: Qingdao, Shandong

Lead Time: Shipped in 10 days after payment Transportation: Most by air.

Note:Please tell us the following data of molybdenum disilicide MoSi2 rod heating element when send enquiry to us :
d = the diameter of hot zone ?
c = the diameter of cold zone ?
Le = the length of hot zone ?
Lu = the length of cold zone ?
a=Shank spacing?
How many pcs ?
