1700 Degree Large Size Vacuum Atmosphere Furnace 36KW Heat Treatment Oven
1700 Degree Large Size Vacuum Atmosphere Furnace 36KW Heat Treatment Oven
Specifications
Brand Name :
SP
Model Number :
SP-1700BA-125L
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
400sets /month
Delivery Time :
15-20 working days
Packaging Details :
standard plywood case for export
Goods :
Vacuum Heat Treatment Furnace
Max. temperature :
1700℃
Operation temperature :
1600℃
Chamber size :
500x500x500mm(20"x20"x20")
Heater :
MoSi2 rod
Vacuum level :
-0.1MPa
Temperature accuracy :
±1℃
Temperature measure :
By B type thermocouple
Vacuum pump :
supply
Rated power :
36KW
Description

1700degree Large Size Electric Vacuum Heat Treatment Furnace Electric Heating

1700C vacuum heat treament furnace features:
SP series atmosphere muffle furnace can protect materials from oxidation and decarburization with flowing Nitrogen ,argon and other inert gas .It is an ideal furnace for sintering ,reducting under inert -atmosphere in labs of university ,research institution and industrial company .
1. Double shells with fan cooling .the furnace surface temperature is low
2. 30 segments programmable and PID auto control.it can make furnace more intelligent for people to use .
3. High quality alumina ceramic fibers as the furnace liner .The heat resistance is better .
4. It has multi-function such as metal annealing ,quenching atmosphere,surface cream ,light treatment

1700C vacuum heat treatment furnace has below outstanding features:

1: Better leak tightness.

2: Better heating preservation,

3: Atmosphere can be controlled.

4: Safety and explosion provention.

5: Precise temperature control.

6: Max Vacuum can up to -0.1Mpa

Technical parameter of 500x500x500mm vacuum heat treatment furnace :

Product Name1700C Vacuum atmosphere heat treatment furnace
ModelSP-1700BA-125L
Max Tempearture1700℃(<3 Hours)
Working Tempearature1600℃(Continuous)
Max Vacuum-0.1MPa
Inner chamber Size500*500*500mm or customizatable
Furnace structureDouble Shells with fan cooling
Temperature Controller50 Segment programmable and PID auto control
Temperature Accuracy+/-1 °c
Heating ElementsMoSi2 rod
Heating Rate20°c/Minutes(Suggestion<15°c)
ThermocoupleB type
Rated Power36KW
Rater VoltageAC 380V (50/60hz)



Stanard models of SUPER company 1700C atmosphere vacuum heat treatment furnace :

ModelChamber size(W*H*Dmm)Max. Temperature
SP-1700BA-1L100x100x100mm(4"x4"x4")1700℃
SP-1700BA-3.4L150x150x150mm(6"x6"x6")1700℃
SP-1700BA-4.5L150x150x200mm(6"x6"x8")1700℃
SP-1700BA-8L200x200x200mm(8"x8"x8")1700℃
SP-1700BA-12L200x200x300mm(8"x8"x12")1700℃
SP-1700BA-19L250x250x300mm(10"x10"x12")1700℃
SP-1700BA-36L300x300x400mm(12"x12"x16")1700℃
SP-1700BA-49L350x350x400mm(14"x14"x16")1700℃
SP-1700BA-64L400x400x400mm(16”x16”x16”)1700℃
SP-1700BA-125L500x500x500mm(20”x20”x20”)1700℃

Special requirement for this furnace is also available .

SUPER COMPANY Services

1. One year free warranty.
2. All machines are debugged before shipment.
3. Lifetime technical support and service.
4. 24 hours on line or phone or by email technical support.
5. We offer detailed machine manual and software manual.
6. Our factory make a vivid training CD.
7. Life-long free maintenance.
8. Free training in our factory.
Welcome to visit our factory, learn machine face to face.

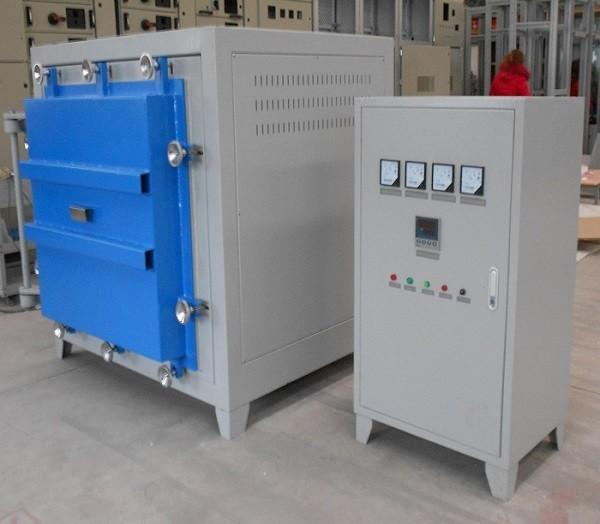

Large size 1700C vacuum heat treatment furnace chamber:
1700 Degree Large Size Vacuum Atmosphere Furnace 36KW Heat Treatment Oven
