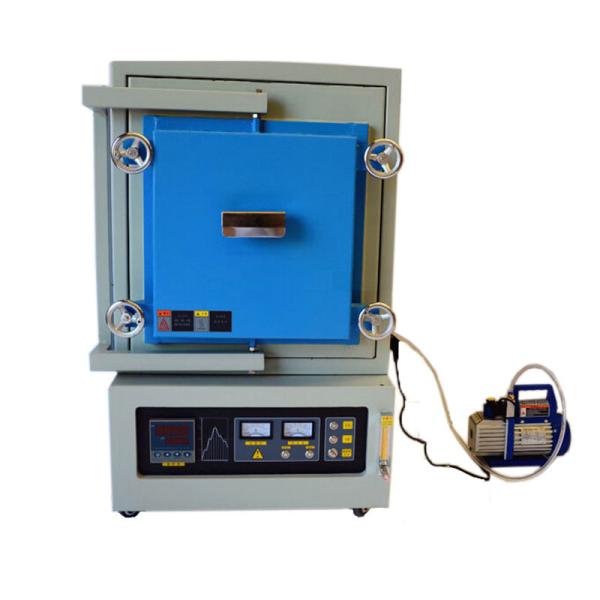

8L 1700℃ Electric Vacuum Atmosphere Furnace for Industry Heat Treatment
8L 1700℃ Electric Vacuum Atmosphere Furnace for Industry Heat Treatment
Specifications
Brand Name :
SP
Model Number :
SP-1700BA-8L
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
400sets /month
Delivery Time :
15-20 working days
Packaging Details :
standard plywood case for export
Name :
Vacuum Atmosphere Muffle Furnace
Max. temperature :
1700℃
Operation temperature :
1600℃
Chamber size :
150x150x150mm
Heating element :
MoSi2 rod
Vacuum level :
-0.1MPa
Temperature accuracy :
±1℃
Temp controller :
30 segments programmable and PID auto control
Temperature measure :
By B type thermocouple
Vacuum pump :
supply
Description

1700degree Electric Vacuum Atmosphere Muffle Furnace Industry Heat Treatment

1700C vacuum atmosphere muffle furnace features:

SP series atmosphere muffle furnace can protect materials from oxidation and decarburization with flowing Nitrogen ,argon and other inert gas .It is an ideal furnace for sintering ,reducting under inert -atmosphere in labs of university ,research institution and industrial company .

1. Double shells with fan cooling .the furnace surface temperature is low

2. 30 segments programmable and PID auto control.it can make furnace more intelligent for people to use .

3. High quality alumina ceramic fibers as the furnace liner .The heat resistance is better .

4. It has multi-function such as metal annealing ,quenching atmosphere,surface cream ,light treatment

The supply of technical information together with furnace:

1. Furnace operation manual

2. The maintenance solution of the common problems .

3. Electrical control schematic drawing

Technical support and after sale service :

1. Prompt technical consulation and support will be offered .

2. Provide consumable parts with favorable price

3. A whole year warranty and lifetime maintenance .

Technical parameter of 100x100x100mm vacuum atmosphere furnace :

Product Name 1700C Vacuum atmosphere muffle furnace
Model SP-1400BA-1L
Max Tempearture 1400℃(<3 Hours)
Working Tempearature 1300℃(Continuous)
Max Vacuum -0.1MPa
Inner chamber Size 100*100*1000mm or customizatable
Furnace structure Double Shells with fan cooling
Temperature Controller 50 Segment programmable and PID auto control
Temperature Accuracy +/-1 °c
Heating Elements MoSi2 rod
Heating Rate 20°c/Minutes(Suggestion<15°c)
Thermocouple B type
Rated Power 6KW
Rater Voltage AC 380V (50/60hz)

Stanard models of SUPER company 1700C atmosphere muffle furnace :

Model Chamber size(W*H*Dmm) Max. Temperature
SP-1700BA-1L 100x100x100mm(4"x4"x4") 1700℃
SP-1700BA-3.4L 150x150x150mm(6"x6"x6") 1700℃
SP-1700BA-4.5L 150x150x200mm(6"x6"x8") 1700℃
SP-1700BA-8L 200x200x200mm(8"x8"x8") 1700℃
SP-1700BA-12L 200x200x300mm(8"x8"x12") 1700℃
SP-1700BA-19L 250x250x300mm(10"x10"x12") 1700℃
SP-1700BA-36L 300x300x400mm(12"x12"x16") 1700℃
SP-1700BA-49L 350x350x400mm(14"x14"x16") 1700℃
SP-1700BA-64L 400x400x400mm(16”x16”x16”) 1700℃
SP-1700BA-125L 500x500x500mm(20”x20”x20”) 1700℃
SP-1700BA-216L 600x600x600mm(24"x24"x24") 1700℃

Special requirement for this furnace is also available .

SUPER COMPANY Services

1. One year free warranty.

2. All machines are debugged before shipment.

3. Lifetime technical support and service.

4. 24 hours on line or phone or by email technical support.

5. We offer detailed machine manual and software manual.

6. Our factory make a vivid training CD.

7. Life-long free maintenance.

8. Free training in our factory.

Welcome to visit our factory, learn machine face to face.
