Molybdenum Disilicide Heating Elements MoSi2 1800 W Shape CE Certified

A. Molybdenum Disilicide Heating Elements Introduction:

Mosi2 heating element is a special product combined metal and ceramics. So it has the characteristics of silicon and molybdenum.

Molybdenum disilicide (MoSi2) is a refractory metal silicide that is primarily used as a heating element. In recent years, its potential for use as a structural ceramic has been recognised, as the material combines excellent oxidation resistance and high elastic modulus at elevated temperatures.

Mosi2 heating element consists of hot zone and cold zone, the welding point is beautiful ,smoothly, without bump

It should be pointed out that element cannot be used for rather long time in 500-1700°C, or it will be powdered owing to the strong oxidizing action in low temperature.

B. Molybdenum Disilicide Heating Elements charaters:

1. Diameter:3/6mm;6/12mm;9/18mm;12/24mm

2. Length:Lu length from 150 to 700mm,Le length from 150 to 600mm,customized is available .

3. Operation temperature: from 500C to 1700.C .Max temperature can up to 1800.C

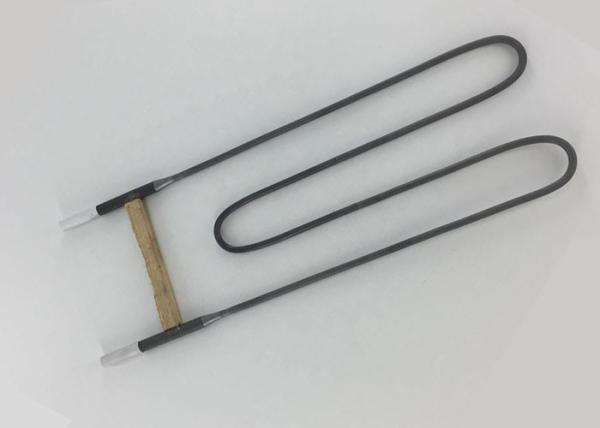

4. Shape : U type ; W type ;straight type ;L type

5. Function: ceramic ,magnetic material,glass ,metallurgy ,fireproofing material furnace

C. Physical property of molybdenum disilicide heating element :

D. Operation temperature of MoSi2 rod heating element in different atmosphere

Please tell us the following data of molybdenum disilicide MoSi2 rod heating element when send enquiry to us :

d = the diameter of hot zone ?

c = the diameter of cold zone ?

Le = the length of hot zone ?

Lu = the length of cold zone ?

a=Shank spacing

g=junction length

How many pcs ?

Packaging & Shipping of MoSi2 heating element :

1. From the inside to outer packaging, is foam sponge, carton, wooden case.

2. Sea or Air transportation, DHL express.

3. Please make sure the 'shipping address' is your confirmed address.
4. We do check everything in good condition before we ship your parcel out.
5. We will process your order ASAP after payment is confirmed.
