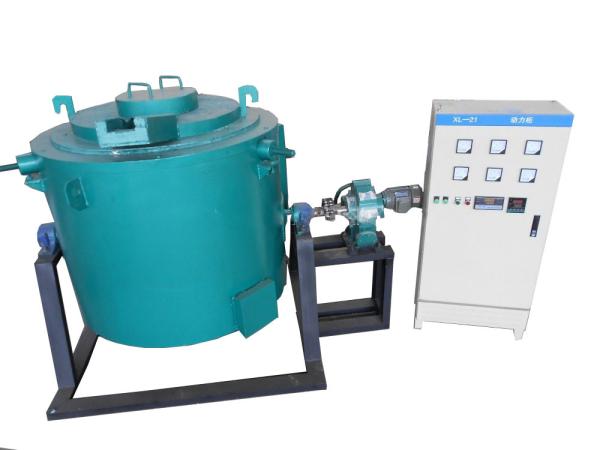

Tiltable Copper Brass Aluminum Melting Electric Furnace Graphite Crucible

Electric furnace function :

1. The furnace structure has the furnace shell, lining, furnace cover, furnace tank (graphite crucible or cast steel crucible), heating components, temperature control system.
2. The lining is made of ultra-lightweight high-alumina refractory brick as a furnace chamber. Insulation layer with aluminum silicate refractory fiber attached, filled with diatomaceous earth (or vermiculite powder) material. Good in the insulation performance.
3. Intelligent digital display works. It has functions of setting temperature, correction, digital display, control, over-temperature alarm device and the over-temperature sound and light alarm. It makes sure the accuracy and stability of the control system.
4. Can be designed for the tilt, there are manual tilt and electric tilt two models.

5.The heating element is made of 0Cr25Al5 alloy wire, spirally wound, placed on the wire brick around the furnace, and fixed with a custom socket to prevent falling off.

6.The furnace cover is also welded by steel and has a long service life. The lining of the furnace cover is made of aluminum silicate refractory fiber for heat insulation and heat preservation, which can improve the heat preservation performance of the furnace cover, prevent heat dissipation, and reduce the weight of the furnace cover

Aluminum melting furnace structure technical parameter :

Technical support and after sale service :

1.Prompt technical consultation and support will be offered .

2.Provide consumable parts with favorable price

3.A whole year warranty and lifetime maintenance .

Standard models of resistance crucible furnace for aluminum melting :

We are also able to produce this melting furnace according to customers' requirement .

Packing and delivery :

²The furnace is nude packed but duly fixed inside the container.

²The nearest sea port is Shanghai port which is the largest and most convenient port over China.

²The delivery time is 45-120 days after receipt of down payment.

²The furnace is usually loaded into normal containers (20GP or 40GP) or flat racks.

²Usually machine is packed with wooden case and standard export carton, plywood carton or as your requirement.

Furnace Chamber
