1800℃ MoSi2 Heater Lab Oven Heating Element Fast Heating
1800℃ MoSi2 Heater Lab Oven Heating Element Fast Heating
1800℃ MoSi2 Heater Lab Oven Heating Element Fast Heating
1800℃ MoSi2 Heater Lab Oven Heating Element Fast Heating
Specifications
Brand Name :
SUPER
Model Number :
1800type
Certification :
ISO 9001
Place of Origin :
Henan,China
MOQ :
6pcs/time
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
50000 pcs/month
Delivery Time :
3-7 working days
Packaging Details :
wooden case
Classification :
Heating element
Application :
High temperature furnace
Shape :
Straight/U/W/UL
Molybdenum purity :
99.9%
Installation :
Vertical Installation
Diameter :
3/6, 4/9, 6/12, 7/12, 9/18, 12/24mm
Hot zone length :
100-1500mm
Special size :
can be designed
Description

1800℃ MoSi2 Heater Lab Oven Heating Element

What’s the Mosi2 Heater Element?

Molybdenum disilicide(MoSi2) heating element is one resistance heating component made from MoSi2 or as the basic material. When it’s heated to high temperature under the oxidizing atmosphere, one dense MoSi2film will be formed on its surface to protect the element against oxidizing further. Therefore, the element has unique anti-oxidation property under high temperature atmosphere. The highest temperature can reach 1800°C, the applicable temperature is between 500-1700°C.

Application: Widely used in research and production of glass, ceramic, refractory, metallurgy, steel-making, crystal, electronic parts, semiconductor material. The model including BR1700 (working temperature 1600℃) and BR1800 (working temperature 1700℃)

Application of MoSi2 Heater:

Item name distinction criterion specification Using range
Heating elements 1700 type Element operating temperature 1700℃ is acceptable

Le Φ

6-12W type/U type/L type/all kinds of hetero type / stripe shape

 high temperature electric resistance furnace
1800 type Element operating temperature 1800℃ is acceptable
1800J type Element operating temperature≥1800℃

Le Φ

3-12W type

 Special,high temperature and high-power electric resistance furnace
1800T type Element operating temperature≤1800℃

Le Φ

3-12W type U type

 Not oxidized special air high temperature electric resistance furnace

Physcial property of molybdenum disilicide heating element MoSi2 rod:

Density Bending Strength Hardness Apparent Porosity Water Absorption Elongation Fracture Toughness Compressive Strength
5.8g/cm3 350Mpa 12.0Gpa ±2% 0 4% 4.5Mpa.m1/2 650Mpa

Packaging & Shipping

1. From the inside to outer packaging, is foam sponge, carton, wooden case.

2. Sea or Air transportation, DHL express.

3. Please make sure the 'shipping address' is your confirmed address.
4. We do check everything in good condition before we ship your parcel out.
5. We will process your order ASAP after payment is confirmed.

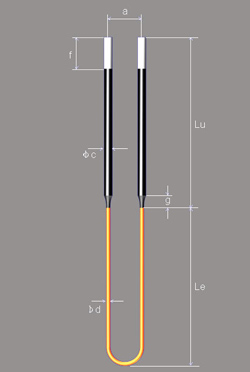

Please tell us the following data of molybdenum disilicide MoSi2 rod heating element when send enquiry to us :

1. Type

2. Diameter: D1, D2

3. Heating zone length: Le

4. Cooling zone length: Lu

5. The distance between two terminals: A

1800℃ MoSi2 Heater Lab Oven Heating Element Fast Heating
