Heat Treatment Vacuum 950C Gas Carburizing Furnace Steel Balls Bushins Quenching
Heat Treatment Vacuum 950C Gas Carburizing Furnace Steel Balls Bushins Quenching
Specifications
Brand Name :
SP
Model Number :
RG-30-9
Certification :
ISO
Place of Origin :
China
MOQ :
1set
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100 sets/month
Delivery Time :
15-20 working days
Packaging Details :
by container
Name :
Gas Carburizing Furnace
Voltage :
AC,3-phase,380-465V
Type :
Heat Treatment furnace
Rated temperature :
950℃
Temp uniformity :
±5℃
Application :
Steel Balls Bushins Pins Quenching
Load capacity :
60kg
Frequency :
60HZ
Rated power :
30kw
Colour :
blue
Description

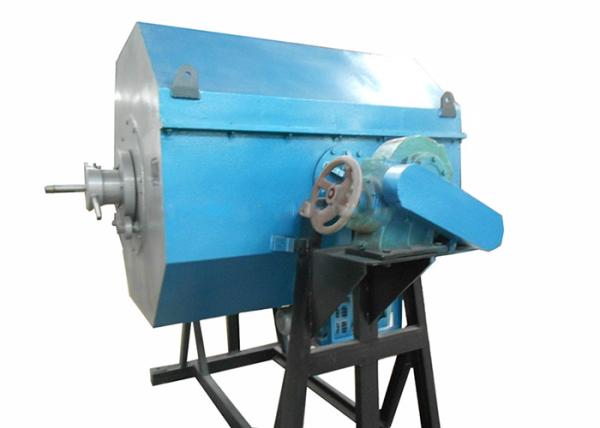

Heat Treatment 950C Gas Carburizing Furnace Steel Balls Bushins Pins Quenching

Gas Carburizing Furnace is a new type energy saving cyclic heat treatment furnace. It is used for gas carburizing heat treatment of steel machine parts, automobile parts.

Heat Treatment Vacuum 950C Gas Carburizing Furnace Steel Balls Bushins Quenching


Carburizing Furnace Features:
1. This furnace is heated by resistance,controlled by solid state relay and intelligent instrument of Japan conductive company,and using PID adjusting method,has the advantages of accurate temperature control,simple operation,stable performance.
2. Working zone uses sealed cylinder-shaped chamber furnace made of imported high temperature stainless steel,it rotates automatically after the workpieces are putting into the furnace chamber to make the workpieces be heated uniformly.It can also be passed into various gas to meet various technological requirements of workpieces.

Technical parameters of SP-RG30-9 Tiltable Roller Retort Carburizing Furnace

1. Working power supply AC/3-phase 4-wire/380-440V/50/60Hz
2. Rated power 30Kw
3. Rated temperature 950°C
4. Temperature control way PID power regulation,instrument of Japan conductive company
5. Temperature accuracy ±1°C
6. Temperature uniformity ±5°C
7. Heating element 0Cr25Al5Fe+Cr resistance wire,spiral
8. Heating element connection Y
9. Dimensions of Effective work zone Diameter * length=300*620mm
10. load capacity of 1 batch 60Kg
11. Operating motor of Furnace chamber 1 set ,1.5Kw,adjust speed by magnetic
12. Rotating speed 0.5-8 r/min
13. Tilting motor of furnace body 0.55KW Hand/electric (all in one) speed reduction unit
14. Max Tilting Angle of furnace body +/-50 degree
15. No-load power loss Less than 4KW
16. No-load heating time(Normal Temp:950°C) About 2.5 hours
17. Shape dimension 2100*2200*2100mm
18. Net weight 2.6 Tons/set

standard model of SUPER carburizing furnace:

Model Furnace chamber size Rated power Rated temperature Phase Rated voltage
RG-30-9 D300×L620 mm 30 kw 950 degree celcius 3 380-440V
RG-45-9 D520×L680 mm 45 kw 950 degree celcius 3 380-440V
RG-60-9 D600×L750 mm 60 kw 950 degree celcius 3 380-440V
RG-120-9 D750×L1000 mm 120 kw 950 degree celcius 3 380-440V

Before sales:

1. Prompt Response (< 12hours).

2. 24 hours technical consultant service

3. Full Support in living and touring in China while customer visiting the factory.

After sales:

1. Prompt Response (< 12hours).

2. One - One customer service with duration over 5 years.

3. Engineers available to service machinery overseas.
