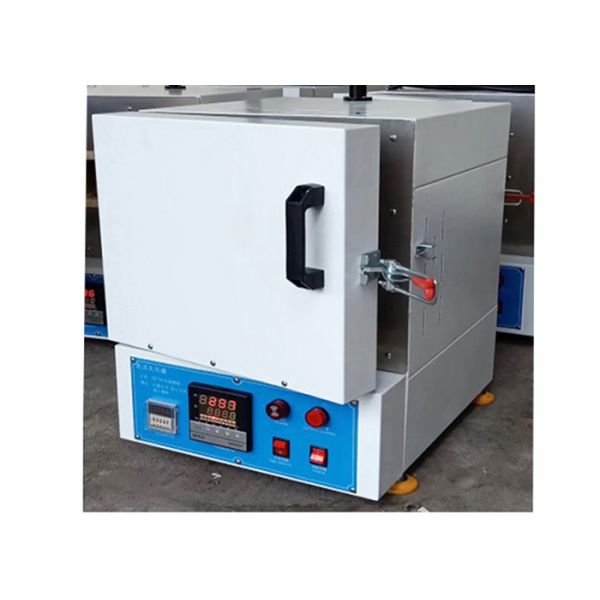

Ceramic Fibre Chamber High Temperature Muffle Furnace 1600C Steel Heating
Ceramic Fibre Chamber High Temperature Muffle Furnace 1600C Steel Heating
Ceramic Fibre Chamber High Temperature Muffle Furnace 1600C Steel Heating
Ceramic Fibre Chamber High Temperature Muffle Furnace 1600C Steel Heating
Specifications
Brand Name :
CE
Model Number :
SP-1600B-12L
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
300sets per month
Delivery Time :
7-10 working days after down payment
Packaging Details :
standard plywood case for export
Max. temperature :
1700C
operation chamber size :
200x200x300mm (12L)
rated power :
8kw
insulation material :
light alumina ceramic fiber board
furnace structure :
double shell to make sure low surface temperature
temperature control :
30 segments programmable and PID auto control
heating element :
MoSi2 rod
name :
1700C chamber muffle furnace
Description

Ceramic Fibre High Temperature Chamber Muffle Furnace 1600C

Super Chamber Muffle Furnace Features:
The furnace chamber is made of super light material, the weight of which is one fifth of the original Energy-saving fiber resistance furnace, and The speed of temperature rise is three times of the original Energy-saving fiber resistance furnace (speed adjustable).
The control system adopts LTDE technology, full automatic intelligent control; it has the functions such as 30-section
programming, output power percentage, slope modification, automatic constant temperature, automatic shut off, as well as the PID which ensures the exact temperature at a point.

INTRODUCTION of laboratory chabmer muffle furnace:

1.Chamber muffle furnace inner size :from 100*100*100mm to 600*600*600mm (1L- 216L)

2.operation temperature:100C to 1600.C .Max temperature : 1700.C

3. thermal insulation material: 1800ceramic fiber board which is made of high purity alumina fibers and alumina powder to be formed and fired in special equipment.

4.heating element :Resistance wire for 1200.C furnace ,SiC rod for 1400.C furnace ;MoSi2 rod heating elment for 1500-1800.C furnace .

5. Chamber Furnace Temperature measuring instrument :K type thermocouple for 1200.C furnace; S type thermocouple for 1400.C furnace ; B type thermocouple for 1500-1700.C furnace .

Technical data of 1600C chamber muffle furnace :

Model and name SP-1600B-12L chamber muffle furnace
Standard Working Temperature 1600.C ( continuous )
Maximum Working Temperature 1700.C ( < 3 hrs)
Inside Chamber Size 200x200x300mm (Customizable)
Temperature Control 30 steps programmable and PID automatic control
Heating Rate 0~20.C/ min (suggestion:<10.C)
Temperature Accuracy +/- 1.C
Working Voltage AC 220V Single Phase 60/50 Hz (or according to your requirement)
Furnace structure Double shell with fan cooling
Heating Element MoSi2 heating elements
Thermocouple type B
Max. Power 8KW
Standard package included with the furnace:
Part description Quantity
Thermal couple 1 pc
Door block 1pc
Stainless steel hook 1 pc
Thermal gloves 1 pair
Operation manual 1 pc

Ceramic Fibre Chamber High Temperature Muffle Furnace 1600C Steel Heating

Warranty:

Henan Super muffle furnaces are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost. This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.
Replacement will be shipped to you after photo or other evidence are provided and investigated.

Super company service :

· load container at Qingdao, Tianjin, Shanghai etc.

· provide shipping method: Courier service, Air transport, Sea transport and rail transport.

· accept order: Full container cargo load, LCL and sample order

· provide service:EX-WORK, FOB, CIF, C&F, Door to Door etc

· has complete quality control system and after-sale service
