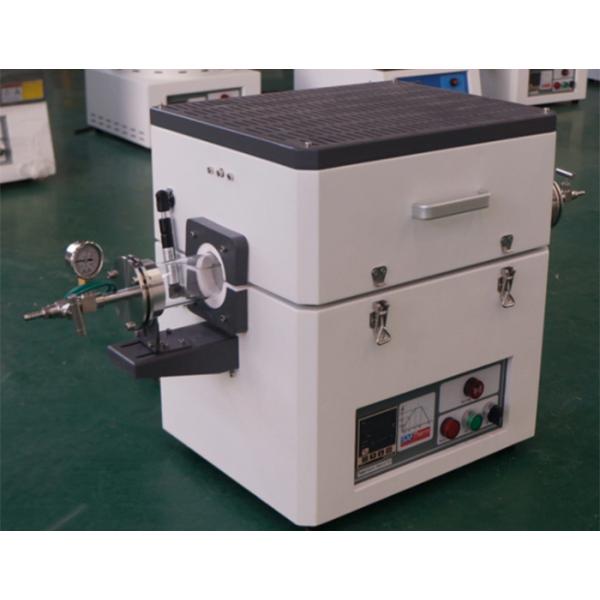

High Temperature 1400c Vacuum Atmosphere Tube Furnace

Atmosphere Tube Furnace Application:
1400 dgree nitrogen gas tube furnace is mainly applied for the heat treatment of samples under vacuum or protective atmosphere, high quality chamber materials and stable temperature control system ensure the reliability of experimental data.The cvd tube furnace 1400 uses the new-type ceramic fiber material as the furnace chamber material; the tube furnace 1400 material is fine, and the tube is sealed by stainless steel flanges on its both ends, the cvd tube furnace 1400 can be work under the vacuum, there are air inlet and air outlet on the flange, also the laboratory electric tube furnace can be filled in protective air, the precision needle-valve may adjust the air inlet flow rate.

Atmosphere Tube Furnace Features:

1.The nitrogen gas tube furnace 1400 degree adopt high-purity alumina ceramic fiber as insulation material,

2. one-piece chamber structure, no transformation in long-term high temperature, sturdy and durable
3. Heating element is powerful Silicon carbide rods, which can bear large load, stable and long service life
4. The 1400 tube furnace adopts alumina ceramic tube as reactor and the stainless steel flanges on its both ends
5. Shimaden PID temperature control, programmable 32 segments
6. Schneider electric components products, with leakage protection, safe and reliable
7. Over-temperature alarm
8. It can be installed with a gas mass flowmeter, digital precise control of the gas.

1400degree Electric Tube Furnace Structure:

1: 30-50 Segments Programmable and PID temperature controller to make the operation more simple.

2: Furnace Chamber is made of Most advanced Alumina ceramic fiber to keep the better heat preservation .

3: Double shell with fan cooling to make the shell temperature close to the room temperature.

4: Integrated double circuit to make the furnace more safe , stable and reliable.

5: Humanized design and advanced technology to make the furnace more beautiful and durable.

6: Furnace Tube is made of high purity Quartz or Alumina and sealed by vacuum flange.

Technical Data of SP-1400T Electric Tube Furnace:

Delivery times :

♥ For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days;

♥ Other customized sizes the delivery time is from 15 days to 30 days according to different products request.

Our Warranty :

One year limited warranty with lifetime support, excluding heating element and ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.

Our advantages:

♥ We are a manufacturer in China. So we can control the cost well.
♥ We use the top material in our furnace, imported ceramic fiber and accuracy temperature controller.

♥ We supply good service after sale, you can be assured about that

Our service :

♥ Reply your inquiry and questions in 24 hours.

♥ Our professional technicians answer all your questions in English.

♥ Customized design is available.
