I. Product Introduction :

Power plant and substation grounding grid is one of the important facilities to ensure personal safety and safe operation of electrical equipment; the size of grounding resistance of grounding grid is an important indicator to measure grounding. Hence, our device is designed and manufactured to meet the requirements of Department of Energy's "grounding-frequency characteristic parameter measurement guidelines".

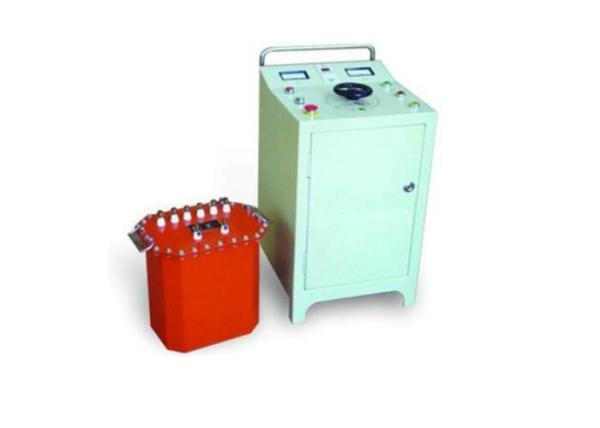

DZC series Power Frequency Ground Resistance Test Equipment is power frequency and large current injection test set for grounding resistance measurement.The device consists of console and transformer, and handling, wiring, and use are all extremely easy.

II. Main Features and Technical Data

1. Large current inject with power frequency , ensure the test accuracy to samller grounding resistance measurement

2: Test method : 4-wire method, 3-wire method and simple 2-line method

3: The device consists of console and transformer, and handling, wiring, and use are all extremely easy.

4: Output current is more than 30A (40A—60A generally), which improves the accuracy.

5.Accurately read the voltage and current values by connecting external digital voltage and current.

6.The device also can be used as power to measure lines parameters.

7. Higher voltage output : 0~1000V or 0-500V

8. Gounding resistance test range :0~300Ω

9. Special for substation grounding resistance measurement with higher impedance loss.

10. Test frequency : 50Hz or 60Hz

III. Optional model

• DZC-20KVA/1KV : 20A/1000V output
• DZC-30KVA/1KV : 30A/1000V output
• DZC-50KVA/1KV : 50A/1000V output
• DZC-20KVA/0.5KV : 20A/500V output
• DZC-30KVA/0.5KV : 30A/500V output
• DZC-50KVA/0.5KV : 50A/500V output
