60 OD 5um Polypropylene High Flow Filter Cartridge For Water RO Prefiltration
60 OD 5um Polypropylene High Flow Filter Cartridge For Water RO Prefiltration
60 OD 5um Polypropylene High Flow Filter Cartridge For Water RO Prefiltration
60 OD 5um Polypropylene High Flow Filter Cartridge For Water RO Prefiltration
60 OD 5um Polypropylene High Flow Filter Cartridge For Water RO Prefiltration
60 OD 5um Polypropylene High Flow Filter Cartridge For Water RO Prefiltration
60 OD 5um Polypropylene High Flow Filter Cartridge For Water RO Prefiltration
60 OD 5um Polypropylene High Flow Filter Cartridge For Water RO Prefiltration
60 OD 5um Polypropylene High Flow Filter Cartridge For Water RO Prefiltration
60 OD 5um Polypropylene High Flow Filter Cartridge For Water RO Prefiltration
60 OD 5um Polypropylene High Flow Filter Cartridge For Water RO Prefiltration
60 OD 5um Polypropylene High Flow Filter Cartridge For Water RO Prefiltration
Specifications
Brand Name :
PULLNER
Model Number :
PHFL
Certification :
ISO9001, ISO45001
Place of Origin :
Shanghai China
MOQ :
one piece
Price :
Negotiable
Payment Terms :
T/T, L/C, , D/P, D/A, Western Union, MoneyGram
Supply Ability :
800pcs per week
Delivery Time :
7-10 working days
Packaging Details :
Export standard carton box after poly bag. 4pcs per carton.
OD :
152.4mm
Material :
polypropylene
Suggestion pressure for filter replacement :
2.5 Bar @ 20℃
Maximum Operating Temperature :
82℃
Filtration area :
6.4㎡
Flow rate :
60m³/h
Brand :
Pullner
Original Place :
Shanghai, China
Description

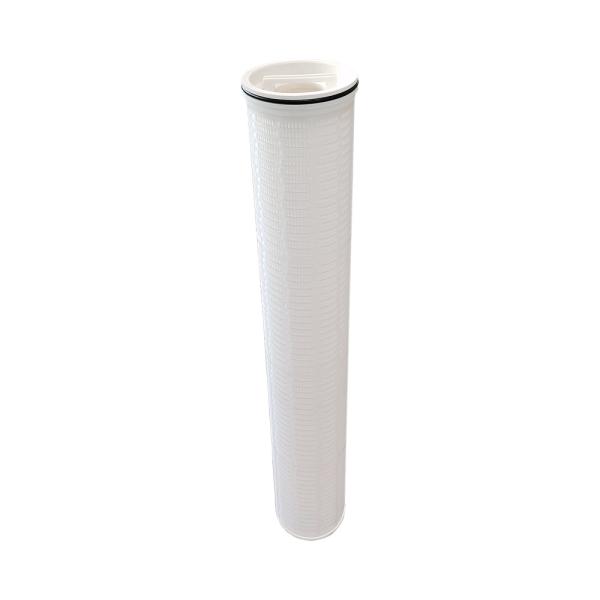

60" OD 5um polypropylene for Water High Flow Filter Cartridge and RO Prefiltration

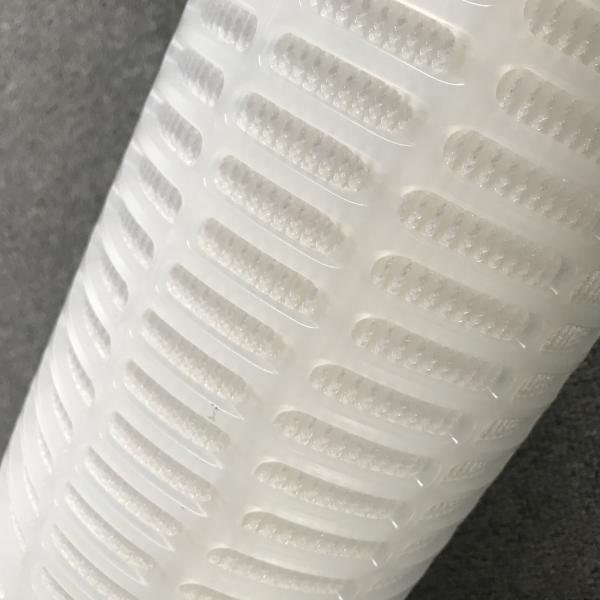

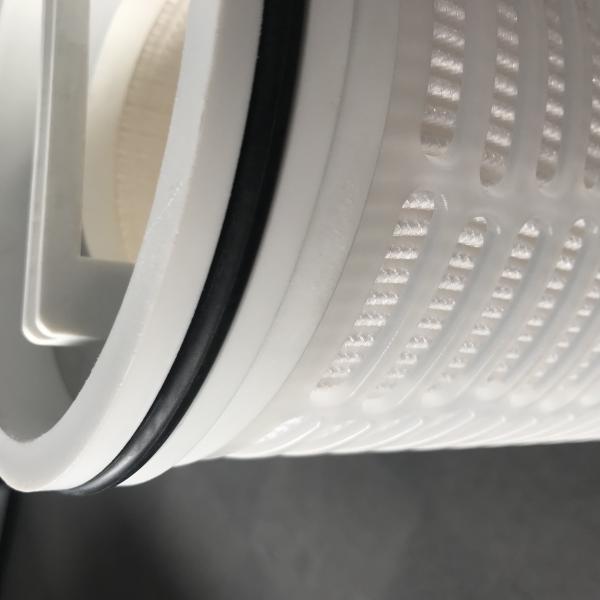

Deep folded fine polypropylene or glass fiber as filter material. It has large size and diameter. Single end opening, and designed from the inside out liquid flow, to ensure that all pollutants are intercepted inside the filter element. This super-large flow design makes the use of filter element and filter in the same flow applications significantly reduced, greatly saving the equipment investment cost and labor cost.

60

60

Filter Performance

Micron 1um, 5um(operating filter), 10um(start-up filter)
Filter area 6.5m²
Max. Operating Temperature 85℃
Max. Operating Differential Pressure 2.8bar, 65℃

Flow Rate and Filtration Area

Size

(Diameter*Length)

Design Flow

(m3/hr)

Maximum Flow

(m3/hr)

Filtration Area

(㎡)
6"*20" 15 40 2.6
6"*40" 30 80 5.2
6"*60" 45 120 7.8

Performance Specifications

Material Filter Medium Polypropylene
Center Core Reinforced Polypropylene
Dimensions Outside Diameter 65mm, 69mm, 70mm
Length 70"; Customized on request
Connection thread size 1 1/2"-12, M33x1.5; (Customized on request)
Screw size M6, M8, M10, 3/8; (Customized on request)

60

* Food and Beverage Industry
* Seawater Desalination
* Process Water and Waste Water Treatment and Industrial Water
* Cooling Water and RO Pre-filtration

60

60

60

60

Shanghai Pullner Filtration Technology Co., Ltd. was established in May 2011 with a registered capital of 26 million yuan. It has a 100,000-level purification workshop of 3,000 m² and a local thousand-level purification laboratory. It is a research and development, production and sales of microporous membrane filtration equipment, filtration system in one of the well-known enterprises.

The company's products are mainly used in Microelectronics, Fine chemicals, New energy, Seawater desalination, Biotech, Latoratory and other fields. Covering Liquid crystal panels, Semiconductor chips, High-purity chemicals, Raw materials, Condensate filtration, Reclaimed water reuse more than a dozen industries.

60

60

60

60 60 60

Our company has ISO19001, ISO14001, ISO45001 certificates, we are high-tech enterprise with multiple patent certificates. Approval vendor of Saudi Aramco.

60

60
