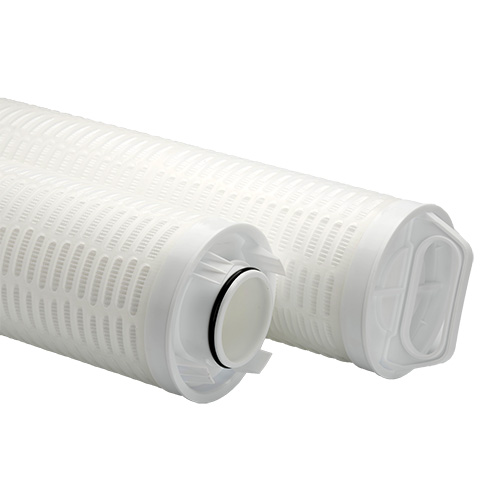

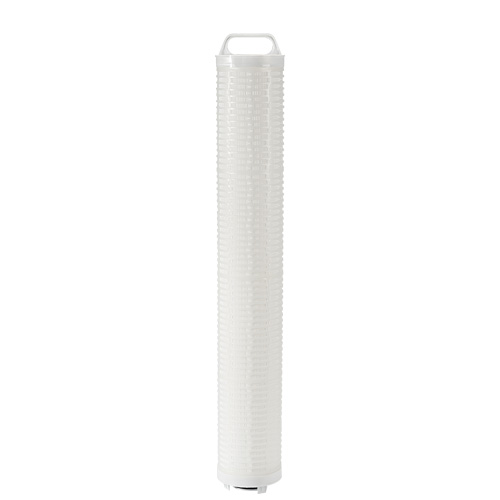

1/5/10 Micron PP High Flow Pleated Filter Cartridge For Desalination Water Prefiltration
1/5/10 Micron PP High Flow Pleated Filter Cartridge For Desalination Water Prefiltration
1/5/10 Micron PP High Flow Pleated Filter Cartridge For Desalination Water Prefiltration
1/5/10 Micron PP High Flow Pleated Filter Cartridge For Desalination Water Prefiltration
Specifications
Brand Name :
PULLNER
Model Number :
PHFM High Flow Pleated Filter Cartridge
Certification :
FDA
Place of Origin :
Shanghai China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
1500pcs per week
Delivery Time :
3-7days
Packaging Details :
Carton box after poly bag. 4pcs per carton
OD :
6" High Flow Pleated Filter Cartridge
Length :
20", 40", 60"
Material :
PP, PET, Glass Fiber
Filtration rating :
1um, 2um, 5um, 10um, 15um, 20um, 30um, 50um, 70um, 100um
Filtration area :
6.6㎡
MOQ :
1 piece
OEM :
YES
Sample :
FREE
Description

1/5/10 Micron PP High Flow Pleated Filter Cartridge For Desalination Water Prefiltration

General Description

PHFM series high flow filter cartridge is made of diameter 6.5" and PP pleated design with big flow area and dirt holding capacity. All connection use thermal welding. It can meet different flow requirements, with a wide range of chemical compatibility, can be applied to various fields.

1/5/10 Micron PP High Flow Pleated Filter Cartridge For Desalination Water Prefiltration1/5/10 Micron PP High Flow Pleated Filter Cartridge For Desalination Water Prefiltration

1/5/10 Micron PP High Flow Pleated Filter Cartridge For Desalination Water Prefiltration1/5/10 Micron PP High Flow Pleated Filter Cartridge For Desalination Water Prefiltration

Performance Specifications

Dimensions

Diameter 6.5" (160mm)

Length

 20" (508mm)
40" (1016mm)
60" (1524mm)

Material of Construction:

Model Filter Medium Support/Drainage End Caps Seals Material
PP Deep pleated Polypropylene Polypropylene Glass Fiber Reinforced Polypropylene NBR, Silicone, EPDM, Viton
PET Polyester Polyester Glass Fiber Reinforced Polypropylene

Filter Performance

Micron 1um, 3um, 5um, 10um, 15um, 20um, 50um, 70um, 100um
Max. operating temperature 82℃
Max. operating differential pressure 3.44bar@82℃
Suggestion pressure for filter replacement 2.5Bar@20℃
Max. flow rate 20": 35m3/h
40": 70 m3/h
60": 110 m3/h

Clean Room:

In the purification workshop, workers need to wear purification clothes, purification shoes, masks, hats and gloves. The purification workshop has high requirements on the production environment, which can ensure the cleanliness and safety of the products, and can meet the filtration requirements of food and beverage, biopharmaceutical and other industries.

1/5/10 Micron PP High Flow Pleated Filter Cartridge For Desalination Water Prefiltration1/5/10 Micron PP High Flow Pleated Filter Cartridge For Desalination Water Prefiltration

1/5/10 Micron PP High Flow Pleated Filter Cartridge For Desalination Water Prefiltration1/5/10 Micron PP High Flow Pleated Filter Cartridge For Desalination Water Prefiltration

Application:

1. Pharmaceutical industry: Pre-filtration of drugs, distilled water, biological products, various antibiotics, etc.

2. Electronics industry: Filtration of industrial water such as electronics, microelectronics, and semiconductors.

3. Food and beverage: Beer, wine, soft drinks, dairy products, bottled water, fruit wine, juice, syrup, cooking oil, etc

4. Industrial filtration: Energy, coatings, graphite, petrochemical, electroplating, mining, machining, industrial water treatment.

5. Water treatment: Drinking water, commercial water treatment, desalination.

1/5/10 Micron PP High Flow Pleated Filter Cartridge For Desalination Water Prefiltration1/5/10 Micron PP High Flow Pleated Filter Cartridge For Desalination Water Prefiltration1/5/10 Micron PP High Flow Pleated Filter Cartridge For Desalination Water Prefiltration

1/5/10 Micron PP High Flow Pleated Filter Cartridge For Desalination Water Prefiltration1/5/10 Micron PP High Flow Pleated Filter Cartridge For Desalination Water Prefiltration1/5/10 Micron PP High Flow Pleated Filter Cartridge For Desalination Water Prefiltration

High Flow Pleated Filter Production process:

Our production strictly follow these procedures: Pleating → Seam welding → Assembly → Trimming → Welding → Finished products → Packaging

1/5/10 Micron PP High Flow Pleated Filter Cartridge For Desalination Water Prefiltration

Shanghai Pullner Filtration Technology Co., Ltd. is a well-known enterprise integrating R&D, production and sales of micro membrane filtration equipment and filtration systems.

1/5/10 Micron PP High Flow Pleated Filter Cartridge For Desalination Water Prefiltration

Pullner laboratory:

It is equipped with varieties of test facilities: Aperture distribution instrument, water single-pass test bench, scanning electro microscope, bacterial challenge lab, online particle detector, diaphragm test bench, air permeability tester, filter cartridge integrity tester, test trolley for simulating field conditions, etc. With several test experts, quickly provide customers varies conditions solutions.

1/5/10 Micron PP High Flow Pleated Filter Cartridge For Desalination Water Prefiltration

1/5/10 Micron PP High Flow Pleated Filter Cartridge For Desalination Water Prefiltration1/5/10 Micron PP High Flow Pleated Filter Cartridge For Desalination Water Prefiltration1/5/10 Micron PP High Flow Pleated Filter Cartridge For Desalination Water Prefiltration

1/5/10 Micron PP High Flow Pleated Filter Cartridge For Desalination Water Prefiltration1/5/10 Micron PP High Flow Pleated Filter Cartridge For Desalination Water Prefiltration1/5/10 Micron PP High Flow Pleated Filter Cartridge For Desalination Water Prefiltration

Pullner Certificates:

Our plant has ISO19001, ISO14001, ISO45001 certificates, we are high-tech enterprise with multiple patent certificates. Approval vendor of Saudi Aramco.

1/5/10 Micron PP High Flow Pleated Filter Cartridge For Desalination Water Prefiltration

1/5/10 Micron PP High Flow Pleated Filter Cartridge For Desalination Water Prefiltration1/5/10 Micron PP High Flow Pleated Filter Cartridge For Desalination Water Prefiltration1/5/10 Micron PP High Flow Pleated Filter Cartridge For Desalination Water Prefiltration

1/5/10 Micron PP High Flow Pleated Filter Cartridge For Desalination Water Prefiltration1/5/10 Micron PP High Flow Pleated Filter Cartridge For Desalination Water Prefiltration1/5/10 Micron PP High Flow Pleated Filter Cartridge For Desalination Water Prefiltration

Global Customers

1/5/10 Micron PP High Flow Pleated Filter Cartridge For Desalination Water Prefiltration

Pullner Exhibitions:

We have participated in professional exhibitions in the filtration industry all the year round. At the exhibition, we not only met new customers and their product needs, but also gained more understanding of the latest filtration technology and products. For us to improve existing products and develop new Products provide more professional information.

1/5/10 Micron PP High Flow Pleated Filter Cartridge For Desalination Water Prefiltration

1/5/10 Micron PP High Flow Pleated Filter Cartridge For Desalination Water Prefiltration

1/5/10 Micron PP High Flow Pleated Filter Cartridge For Desalination Water Prefiltration

1. Q: Are you a trading company or a manufacturer?

A: We are a professional manufacturer of all kinds of filter cartridges, housings and filtration systems. We provide you the total filtration solutions with our many years experience in the industry.

2. Q: May I have samples?
A: Sure, of course. Sample cost can be refunded if you place formal orders in the future.
3. Q: Can you make customized products?
A: Yes, of course. if you can provide us detailed specifications or drawings. Our mission is make customer idea on the products and provide the customer satisfied solutions.
4. Q: Can I use our own designed package?
A: Yes, size, color, logo and packaging style all can be customized.
5. Q: What's your MOQ?
A: Normally, 100PCS/item. Any trial order which is less than MOQ is warmly welcomed. If you have a trial order, please feel free to contact us so that we can make some shipping recommendation for you to save the cost based on the quantity you need.
6. Q: I am a small business owner, Can I buy from you?
A: Yes, you are warmly welcomed. To grow with our customer is our goal. We would like to grow with you together.
7. Q: What is your general lead time?
A: Normally 5-7 working days for off-the-shelf samples and 10~15 days for bulk production.
8. Q: How should I pay you?
A: T/T, L/C, Western Union, MoneyGram, etc are acceptable.
9. Q: What certificate do you have?
A: Our factory is ISO9001/ISO14001/ISO45001 certified.
10. Q: How should I place an order?
A: Please kindly click "Sent Inquiry", Then our sales engineer will recommend you suitable products for your selection also give some valuable suggestion for your selection.
