Backflushable 69MM 6.5M2 PHFZ Pleated Power Plant Filter Cartridge
Backflushable 69MM 6.5M2 PHFZ Pleated Power Plant Filter Cartridge
Backflushable 69MM 6.5M2 PHFZ Pleated Power Plant Filter Cartridge
Backflushable 69MM 6.5M2 PHFZ Pleated Power Plant Filter Cartridge
Backflushable 69MM 6.5M2 PHFZ Pleated Power Plant Filter Cartridge
Backflushable 69MM 6.5M2 PHFZ Pleated Power Plant Filter Cartridge
Specifications
Brand Name :
PULLNER
Model Number :
PHFZ
Certification :
FDA/ISO 9001/ISO 14001
Place of Origin :
China
MOQ :
10
Price :
USD + 20-100 + Piece
Payment Terms :
T/T,, Western Union, D/P, D/A, L/C, MoneyGram
Supply Ability :
500pcs per week
Delivery Time :
1 Week
Packaging Details :
Individual packaged in carton box after poly bag.
Diameter :
69mm
Length :
70"
Filter medium :
PP
Filtration rating :
1-10um
MOQ :
1 piece
Delivery time :
1 month
Sealing Material :
Silicone/Viton/PEP/EPDM
Max. Operating temperature :
85℃
Max. Operating different pressure :
3bar/65℃
Removal rating :
99.99%
Recommend flow rate :
3.9m³/h
Description

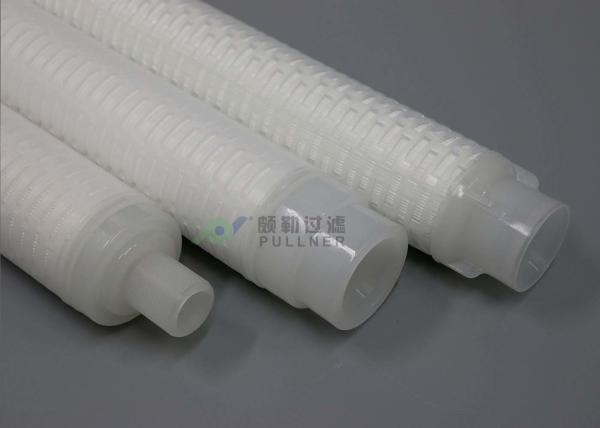

PHFZ Series Pleated Filter Cartridge

PHFZ Series pleated filter cartridge is backflushable pleated filters, designed for iron removal in condensate with or without resin pre-coat in power plant. According to the structure, it can be divided into three types: PHFZ-I (7 parts), PHFZ-II (2 parts) and PHFZ-III (4 parts). The PHFZ-II (4+3) is 40" and 30" welded, with integral cage outer diameter of φ69.

Material Constructions

Filter Media Polypropylene (PP)
Cage/Core/End cap Polypropylene (PP)
Accessories (nut, screw) SS304

Performance

Maximum Operating Temperature 85℃
Maximum Operating Differential Pressure 3.0bar/65℃
Filtration Area 6.5㎡
Flow Rate

3.5-4.5m3/h(Design)

3.9m3/h(Recommend)
Inlet water quality ＜2000ppb

Backwash water or gas: Under the pressure of 1.36-2.1bar, the backwash water of each filter cartridge is 0.45-0.65m3/h, backwash gas 3.4-5m3/h, can achieve the ideal effect.

600MW supercritical units and 1000MW ultra-supercritical units, respectively recommended use 4μm and 1μm 70" filter cartridge, when debugging recommend 10μm filter cartridge for start-up.

Ordering Information

PHFZ PP 0500 70 III Z2 W

Series Media Micron Length Structure Connection Thread End Tread
PHFZ PP=Polypropylene

0100=1.0μm

0400=4.0μm

1000=10μm

60=60"

70=70"

I=7Part(φ69)

II=4+3(φ65)

III=3+1(φ69)

Z1=1 1/2"-12

Z2=M33×1.5

W1=M8

W2=M10

W3=M6

W4=3/8

Backflushable 69MM 6.5M2 PHFZ Pleated Power Plant Filter CartridgeBackflushable 69MM 6.5M2 PHFZ Pleated Power Plant Filter CartridgeBackflushable 69MM 6.5M2 PHFZ Pleated Power Plant Filter Cartridge
