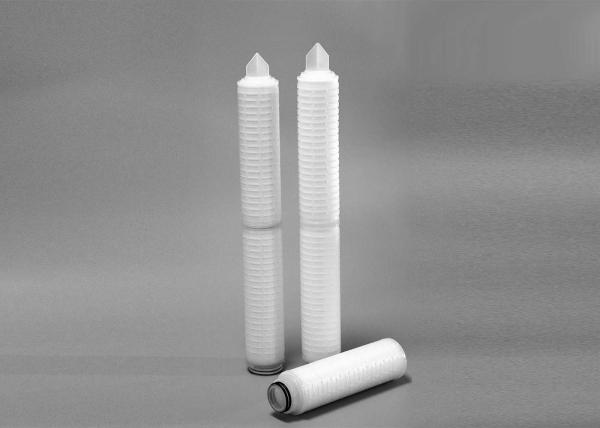

OD 69mm Pharmaceutical Filters Sterile PTFE Micron Pleated Cartridge OEM
OD 69mm Pharmaceutical Filters Sterile PTFE Micron Pleated Cartridge OEM
Specifications
Brand Name :
PULLNER
Model Number :
PTFE
Certification :
FDA
Place of Origin :
Shanghai China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram, Paypal
Supply Ability :
500pcs per week
Delivery Time :
7-10 days
Packaging Details :
Carton box after poly bag. 50pcs per carton.
Material :
PTFE
OD :
2.7" (69mm)
Micron :
0.1um, 0.22um, 0.45um, 0.65um, 1um
Length :
10", 20", 30", 40"
Sample :
Yes
OEM :
Yes
Description

High Quality Pharmaceutical Filters Sterile PTFE Micron Pleated Cartridge Filters

General Description

Hydrophobic Polytetrafluoroethylene filter, the filter medium is hydrophobic Polytetrafluoroethylene microporous membrane: strong hydrophobicity, high rejection, excellent chemical resistance and thermal stability, good strength, positive resistance forward and reverse pressure shock.

Applications
Chemical industry: filtration of organic solvents, various alcohols, chemical reagents, etc.
Gas filtration: sterilization filtration of compressed air, nitrogen, carbon dioxide, etc.
Filtration of sterile tank respirators, air fermenters, etc.

Features

1. Excellent performance of high temperature-resistance, repeat steam ability in situ;

2. Hydrophobic membrane with high flow;

3. Low pressure drop, high flow rate, long service life;

4. 100% integrity tested;

5. Non fiber-releasing;

6. FDA compliance material;

Dimensions

Outer diameter

2.7" (69mm)

Length

10", 20", 30", 40"

Material of Construction

Filter Medium

PTFE

Support/Drainage

PP

Center core/Outer Cage/End Caps

PP

Seals Material

NBR, Silicone, EPDM, Viton, Teflon

Filter Performance

Removal rating

For Gas: 0.04um, 0.022um

For Liquid: 0.1um, 0.22um, 0.45um, 0.65um

Max. operating temperature

80℃ 0.17Mpa

Max. tolerance temperature

140℃ 0.27Mpa

Max. operating differential pressure

4.2 Bar @ 25℃

Max. operating differential pressure

(Reverse direction)

2.0 Bar @ 25℃

Max. temperature sterilization

121℃, 30 minutes
