1.3mm Copper Wire Toroidal Common Mode Choke High Stored Energy ISO14001 Approved
1.3mm Copper Wire Toroidal Common Mode Choke High Stored Energy ISO14001 Approved
1.3mm Copper Wire Toroidal Common Mode Choke High Stored Energy ISO14001 Approved
1.3mm Copper Wire Toroidal Common Mode Choke High Stored Energy ISO14001 Approved
Specifications
Brand Name :
Greenfair
Model Number :
common mode choke
Certification :
CE, UL, ISO14001
Place of Origin :
China
MOQ :
1000pcs
Packaging Details :
carton box, plastic blister box
core :
T157-52 MICROMETALS core
windings :
bifilar winding
temperature :
low temperature rise
energy :
high stored energy
wire :
copper wire and triple wire
base :
PBT
structure :
vertical
ROHS :
PB free
Description

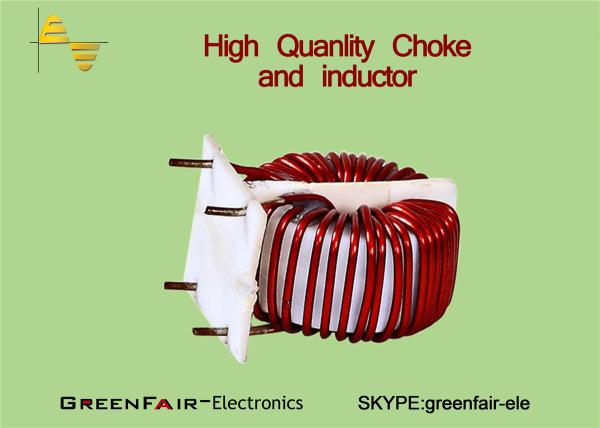

Vertical T157-52 common mode choke by EIWH￠1.3mm copper wire Toroidal common-mode inductor

Feature for Custom High Filter Choke Coil Inductor for Electronic Device
1. Low Flux Leakage
2. Excellent EMI efficiency
3. Made in a lot of sizes and shapes according to customer requirements

4. Toroidal common-mode inductor
5. For SMPS application
6. RoHS compatible (Pb free) versions available
7. Good frequency characteristic
8. With high impedance

Applications:

widely applied in various switching power suppliers and high frequency electronic equipmentNoise
1. Power factor control choke coil
2. EMI/RFI filter used in switching power supplies
3. Electronic Device
4. UPS
5. TV game, Monitor, Audio, VCD, DCD, Radio cassette player
6. Car recharger
7. The noise rejection
8. Induction cooker,etc
9. Compact fluorescent lamp

Competitive Advantage:
1. High grade raw material from famous supplier
2. Big quality control teams ensure good quality of every single piece of product.
3. 6S, QCC and SPC management systems ensure the quality consistence
4. Strong R. & D team

1.3mm Copper Wire Toroidal Common Mode Choke High Stored Energy ISO14001 Approved

WINDING PARAMETER:
NO. WINDING MATERIAL S--F TURNS REMARK
1 N1 EIWH￠1.3mm 1--3 20TS
2 N2 EIWH￠1.3mm 4--2 20TS

ELECTRICAL CHARACTERISTIC:
NO. ITEM MEASURE POINT TECHNICAL DATA REMARK
1 INDUCTANCE N1=N2 35uH MIN 10KHz 0.1V
2 INDUCTANCE BELANCE |N1--N2| 5uH MAX 10KHz 0.1V
3 HI-POT N1--N2 1500VAC 3mA 1S

MATERIAL LIST:
NO. MATERIAL NAME MATERIAL SPEC. PROVIDER UL NO.
1 CORE T157-52 MICROMETALS
2 WIRE MW35-C EIWH 200℃
MW35A EI/AIW 200℃		 TAI-I
DARTONG		 E85640
E237377
3 TUBE TFT 300V 200℃ GREAT HOLDING E156256
4 BASE VTM254-0/067 LODESTONE PACIFIC
5 TIES NYLON
P/N:08401
P/N:50ROHSUVM4		 E I DUPONT
DENNISON MFG
TYTON		 E69578
6 EPOXY E-500 EATTO E218090

General information:
It is recommended that the temperature of the part does not exceed +125°C under worst case conditions.
Storage Temperature: -40°C to 85°C
Operating Temperature: -40°C to 125°C
Test conditions of Electrical Properties: 20°C, 33% RH if not specified differently

OPERATING TEMPERATURE RANGE, PACKAGE QUANTITY, PRODUCT WEIGHT
Temperature range Humidity range Standard test conditions
Operating temperature* Storage temperature Operating temperature** Storage temperature** Operating temperature** Storage temperature**
( ℃) ( ℃) ( % RH) ( % RH) ( ℃) ( % RH)
-30 to +120 -40 to +80 10 to +95 10 to +95 25 ± 10 25 to +75

* With self-heating
** Maximum wet-bulb temperature 38°C, without dewing
*** Without dewing
