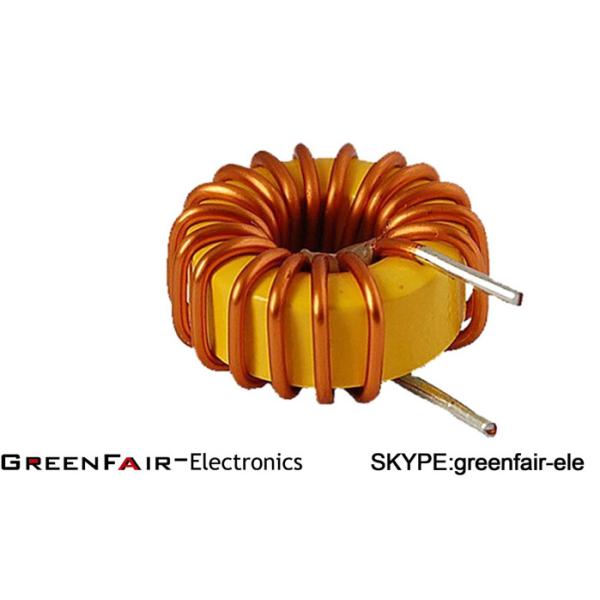

Vertical T80-26 toroid choke coil filter Single Phase Small volume high current

Feature for Custom High Filter Choke Coil Inductor for Electronic Device

1. High Saturation materal,low cost &high efficiency
2. wide inductance range,high current capability low magnetic leakage
3. low DC resistance,good control on noise due to the toroidal constructure
4. Characteristics:Small volume,Big current output,Excellent current choking performance.
5. Various material availiable to meet different frequency requirements
Operating temperature: -55 to 105°C
Power: 200, 250, 300 and 500W
Voltage: 100V/230, 50Hz
Inductance range: 1 to 1000uH
PF value: greater than 98%
Tested at 100kHz, 0.1Vrms inductance of 10%uH
DC current at which the inductance drops 10% (type) from itsvalue without current
Electrical characteristics at 25°C
Insulation: class B (130°C), class F (155°C), class H(180°C), class N (200°C) and class R (220°C)
Certifications: UL, CQC and CE
Excellent utilization of electricity, good for environmentprotection
Customized specifications are accepted

Applications:

Frequency power
UPS
EMI/RFI filters
Switching power output and smoothing circuits
Used as choke coil for high frequency SMPs
Countermeasure against spike ripples
DC/DC converters
IP and OP devices
Notebook computer
Air conditioning
Digital TV
Battery power equipment
Power supply of all types of household appliances
Switching power supplies

Competitive Advantage:
1. High grade raw material from famous supplier
2. Big quality control teams ensure good quality of every single piece of product.
3. 6S, QCC and SPC management systems ensure the quality consistence
4. Strong R. & D team

General information:
It is recommended that the temperature of the part does not exceed +125°C under worst case conditions.
Storage Temperature: -40°C to 85°C
Operating Temperature: -40°C to 125°C
Test conditions of Electrical Properties: 20°C, 33% RH if not specified differently

* With self-heating
** Maximum wet-bulb temperature 38°C, without dewing
*** Without dewing
