UU10.5 Filter 10mH Power Choke Inductor , 1.0KV 5mA CMC Common Mode Choke
UU10.5 Filter 10mH Power Choke Inductor , 1.0KV 5mA CMC Common Mode Choke
Specifications
Brand Name :
Greenfair
Model Number :
UU filter common mode choke
Certification :
CE, UL, ISO14001
Place of Origin :
China
MOQ :
1000pcs
Packaging Details :
carton box, plastic blister box
core :
UU10.5 R10K
windings :
two winding
hi-pot :
1.0KV 5mA 60S
function :
EMI/RFI filters
wire :
0.3mm copper wire
varnish :
vacuum
CLIP :
steel
name :
common mode choke
Description

UU10.5 filter 10mH MIN Maximum difference between windings:5% Lighting controls solution CMC common mode choke​

Function:

1. Suppresses noise in DC circuits for switching regulators.
2. Protects primary AC side form being affected by switching regulators.
3. Filters electors tic noise from power and signal lines.
4. Eliminates contact noise.
5. Filters incoming spike noise for Ics and equipment using microcomputers.
6. Minimizes noise emissions for conforming to FCC,VCCI,FTZ,CISPR,JTTC and VDE.
7. Minimizes noise emissions from inverters.

Parameter:

Operating temperature: -55 to 105°C
Power: 200, 250, 300 and 500W
Voltage: 100V/230, 50Hz
Inductance value is 30mH MIN at 1KHz 1V

PF value: greater than 98%
Tested at 100kHz, 0.1Vrms inductance of 10%uH
DC current at which the inductance drops 10% (type) from its value without current
Electrical characteristics at 25°C
Insulation: class B (130°C), class F (155°C), class H(180°C), class N (200°C) and class R (220°C)
Certifications: UL, CQC and CE
Excellent utilization of electricity, good for environment protection
Customized specifications are accepted


Type Specification Inductance Error Work Frequency
ET ET35 ±1% 50-400KHz
ET29 ±1% 50-400KHz
ET28 ±1% 50-400KHz
ET24 ±1% 50-400KHz
ET20 ±1% 50-400KHz
UIUUUF UI100 ±2% 50-400KHz
UI93 ±2% 50-400KHz
UI67 ±2% 50-400KHz
UF33 ±2% 50-400KHz
UF25 ±2% 50-400KHz
UF20 ±2% 50-400KHz
UYF16 ±2% 50-400KHz
UU10.5 ±2% 50-400KHz
UU9.8 ±2% 50-400KHz

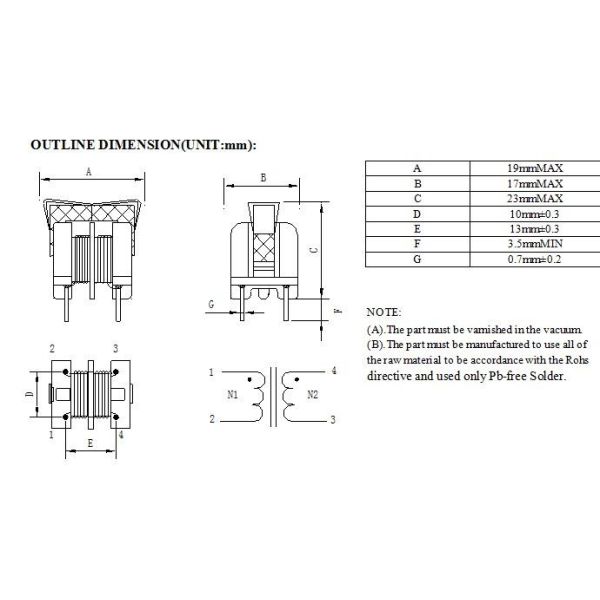

UU10.5 Filter 10mH Power Choke Inductor , 1.0KV 5mA CMC Common Mode Choke

2. WINDING PARAMETER:
NO. WINDING MATERIAL S--F TURNS REMARK
1 N1 2UEW Φ0.3mm 1---2 85 REF
2 N2 2UEW Φ0.3mm 4---3 85 REF
3. ELECTRICAL CHARACTERISTIC:
NO. ITEM MEASURE POINT TECHNICAL DATA REMARK
1 IND 10mH MIN Maximum difference between windings:5% 1 KHz 0.25V
2 HP-TEST 1-2/3-4 1.0KV 5mA 60S
4. MATERIAL LIST:
NO. MATERIAL NAME MATERIAL SPEC. PROVIDER UL NO.
1 CORE UU10.5 R10K JINCHUAN or EQUATE
2 BOBBIN PM-9820 SUMITOMO BAKELITE or EQUATE E41429
3 WIRE MW75C JIANGSU DARTONG QINGJIANG M & E COLTD or EQUATE E237377
4 VARNISH 8562/C HANG CHENG or EQUATE E200154

OPERATING TEMPERATURE RANGE, PACKAGE QUANTITY, PRODUCT WEIGHT
Temperature range Humidity range Standard test conditions
Operating temperature* Storage temperature Operating temperature** Storage temperature** Operating temperature** Storage temperature**
( ℃) ( ℃) ( % RH) ( % RH) ( ℃) ( % RH)
-30 to +120 -40 to +80 10 to +95 10 to +95 25 ± 10 25 to +75

Notes:
1. Wire:130°C or150°C.
2. The above specifications for the common specifications, customers can request custom design.

General information:
It is recommended that the temperature of the part does not exceed +125°C under worst case conditions.
Storage Temperature: -40°C to 85°C
Operating Temperature: -40°C to 125°C
Test conditions of Electrical Properties: 20°C, 33% RH if not specified differently

* With self-heating
** Maximum wet-bulb temperature 38°C, without dewing
*** Without dewing
