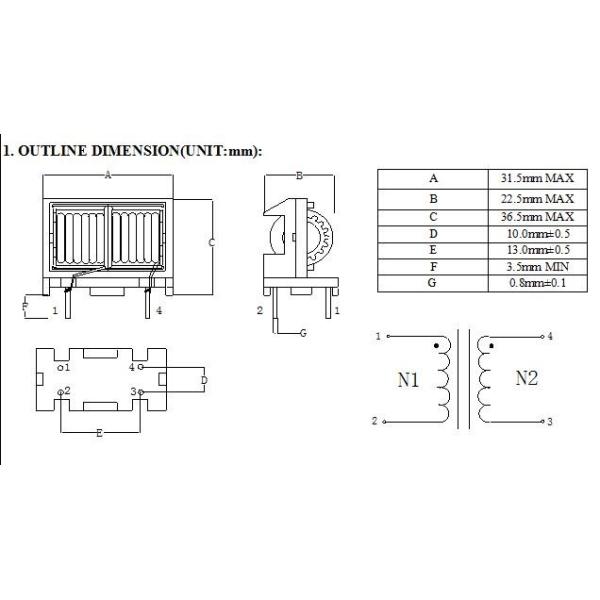

Vertical CMC ET28 10mH big current 0.72mm copper wire ET20 / 24 / 28 / 29 / 35 common mode choke filter

Function:

1. Excellent impedance balance & EMI efficiency
2. UU line filter with 3 to 380V DC output
3. Design as customer’s specification completely
4. ET filter with wide frequency range and low temperature rise
5. EE line filter with highly reliable, compact & light weight
6. Easily inserted into PCB
7. Provide much better filtering performance
8. As a preventive measure against noise terminal voltage or power supply in TV or VCR unit
9. Compact and provides a large inductance
10. Prevention of noise emitted from other components

Applications:
1. Countermeasure for noise in broadcasting band
2. Shields against radiated emissions in the broadcasting frequency for multi-functional telephone sets, PBXs, Faxes, etc.
3. Wide used in Video, Switch power supplyand TV

Parameter:

Operating temperature: -55 to 105°C
Power: 200, 250, 300 and 500W
Voltage: 100V/230, 50Hz
Inductance value is UU16 - 7mH MIN at 1KHz 1V

PF value: greater than 98%
Tested at 100kHz, 0.1Vrms inductance of 10%uH
DC current at which the inductance drops 10% (type) from itsvalue without current
Electrical characteristics at 25°C
Insulation: class B (130°C), class F (155°C), class H(180°C), class N (200°C) and class R (220°C)
Certifications: UL, CQC and CE
Excellent utilization of electricity, good for environment protection
Customized specifications are accepted

Notes:

1. Wire:130°C or150°C.
2. The above specifications for the common specifications, customers can request custom design.

General information:
It is recommended that the temperature of the part does not exceed +125°C under worst case conditions.
Storage Temperature: -40°C to 85°C
Operating Temperature: -40°C to 125°C
Test conditions of Electrical Properties: 20°C, 33% RH if not specified differently

* With self-heating
** Maximum wet-bulb temperature 38°C, without dewing
*** Without dewing
