0.6mH Min Customized Power Choke Inductor , UU9.8 Two Winding High Power Inductor
0.6mH Min Customized Power Choke Inductor , UU9.8 Two Winding High Power Inductor
Specifications
Brand Name :
Greenfair
Model Number :
UU filter common mode choke
Certification :
CE, UL, ISO14001
Place of Origin :
China
MOQ :
1000pcs
Packaging Details :
carton box, plastic blister box
core :
UU10.5 R10K
windings :
two winding
Hi-pot :
2000V/50Hz/1mA/1S
function :
EMI/RFI filters
wire :
0.25mm copper wire
varnish :
vacuum
CLIP :
steel
bobbin :
PHENOLIC-UL-94V-0
Description

Horizontal UU9.8 UU10.5 filter common mode choke 0.6mH to 104mH MIN Customized specifications are accepted

Function:

1. Suppresses noise in DC circuits for switching regulators.
2. Protects primary AC side form being affected by switching regulators.
3. Filters electors tic noise from power and signal lines.
4. Eliminates contact noise.
5. Filters incoming spike noise for Ics and equipment using microcomputers.
6. Minimizes noise emissions for conforming to FCC,VCCI,FTZ,CISPR,JTTC and VDE.
7. Minimizes noise emissions from inverters.

Parameter:

Operating temperature: -55 to 105°C
Power: 200, 250, 300 and 500W
Voltage: 100V/230, 50Hz
Inductance value is 30mH MIN at 1KHz 1V

PF value: greater than 98%
Tested at 100kHz, 0.1Vrms inductance of 10%uH
DC current at which the inductance drops 10% (type) from itsvalue without current
Electrical characteristics at 25°C
Insulation: class B (130°C), class F (155°C), class H(180°C), class N (200°C) and class R (220°C)
Certifications: UL, CQC and CE
Excellent utilization of electricity, good for environment protection
Customized specifications are accepted


Type Specification Inductance Error Work Frequency
ET ET35 ±1% 50-400KHz
ET29 ±1% 50-400KHz
ET28 ±1% 50-400KHz
ET24 ±1% 50-400KHz
ET20 ±1% 50-400KHz
UIUUUF UI100 ±2% 50-400KHz
UI93 ±2% 50-400KHz
UI67 ±2% 50-400KHz
UF33 ±2% 50-400KHz
UF25 ±2% 50-400KHz
UF20 ±2% 50-400KHz
UYF16 ±2% 50-400KHz
UU10.5 ±2% 50-400KHz
UU9.8 ±2% 50-400KHz

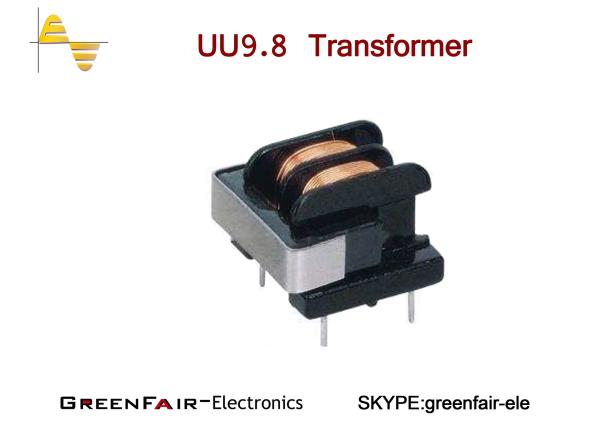

0.6mH Min Customized Power Choke Inductor , UU9.8 Two Winding High Power Inductor

0.6mH Min Customized Power Choke Inductor , UU9.8 Two Winding High Power Inductor

ELECTRICAL CHARACTERISTIC:
NO. ITEM MEASURE POINT TECHNICAL DATA REMARK
601 INDUCTANCE L1-2=L4-3 0.6mH MIN 1KHz 0.25V
102 INDUCTANCE L1-2=L4-3 1.0mH MIN 1KHz 0.25V
172 INDUCTANCE L1-2=L4-3 1.7mH MIN 1KHz 0.25V
212 INDUCTANCE L1-2=L4-3 2.1mH MIN 1KHz 0.25V
272 INDUCTANCE L1-2=L4-3 2.7mH MIN 1KHz 0.25V
402 INDUCTANCE L1-2=L4-3 4.0mH MIN 1KHz 0.25V
532 INDUCTANCE L1-2=L4-3 5.3mH MIN 1KHz 0.25V
682 INDUCTANCE L1-2=L4-3 6.8mH MIN 1KHz 0.25V
103 INDUCTANCE L1-2=L4-3 10mH MIN 1KHz 0.25V
123 INDUCTANCE L1-2=L4-3 12mH MIN 1KHz 0.25V
193 INDUCTANCE L1-2=L4-3 19mH MIN 1KHz 0.25V
263 INDUCTANCE L1-2=L4-3 26mH MIN 1KHz 0.25V
433 INDUCTANCE L1-2=L4-3 43mH MIN 1KHz 0.25V
104 INDUCTANCE L1-2=L4-3 104mH MIN 1KHz 0.25V
ALL HI-POT N1--N2 OK 2000V/50Hz/1mA/1S

MATERIAL LIST:
NO. MATERIAL NAME MATERIAL SPEC. PROVIDER UL NO.
1 CORE UU10.5 R10K ZHONGXIN or EQUATE
2 BOBBIN PHENOLIC-UL-94V-0 XIEYONG or EQUATE E59481(C)
3 WIRE 2UEW Φ0.25mm 130℃ TAI YI or EQUATE E85640
4 VARNISH 8562/C HANG CHENG PETROCHEMICAL LTD or EQUATE E200154

OPERATING TEMPERATURE RANGE, PACKAGE QUANTITY, PRODUCT WEIGHT
Temperature range Humidity range Standard test conditions
Operating temperature* Storage temperature Operating temperature** Storage temperature** Operating temperature** Storage temperature**
( ℃) ( ℃) ( % RH) ( % RH) ( ℃) ( % RH)
-30 to +120 -40 to +80 10 to +95 10 to +95 25 ± 10 25 to +75

Notes:
1. Wire:130°C or150°C.
2. The above specifications for the common specifications, customers can request custom design.

General information:
It is recommended that the temperature of the part does not exceed +125°C under worst case conditions.
Storage Temperature: -40°C to 85°C
Operating Temperature: -40°C to 125°C
Test conditions of Electrical Properties: 20°C, 33% RH if not specified differently

* With self-heating
** Maximum wet-bulb temperature 38°C, without dewing
*** Without dewing
