CE EI30 Low Frequency Transformer Epoxy Cover 240V / 50Hz / 60Hz N1 6000 Turns
CE EI30 Low Frequency Transformer Epoxy Cover 240V / 50Hz / 60Hz N1 6000 Turns
CE EI30 Low Frequency Transformer Epoxy Cover 240V / 50Hz / 60Hz N1 6000 Turns
CE EI30 Low Frequency Transformer Epoxy Cover 240V / 50Hz / 60Hz N1 6000 Turns
Specifications
Brand Name :
Greenfair
Model Number :
EI30
Certification :
CE, UL, ISO9001
Place of Origin :
China
MOQ :
1000pcs
Payment Terms :
T/T
Packaging Details :
carton box, plastic blister box
power supply phase :
single phase
structure :
honrizontal
anti-moisture :
open
varnish :
vacuum varnish
winding :
two windings
lamination core :
EI30 H18A 0.35T
bobbin :
EI30 PBT
Hi-pot :
1).Np--Ns:2.0kV/50Hz/1mA/60S
Description

EI30 low frequency transformer with epoxy and cover 240V / 50Hz / 60Hz N1 with 6000 turns 2UEW￠0.05mm


The products are mainly used in various types of Access Controller, Building Intercom, Safety& Security Power Supply, network, DVD, monitors, computer, communication products, lighting systems and instruments and other products.

Low frequency transformer is applicable to alternating voltage with input voltage of 100V-440V, working frequency of 50/60HZ and working enviroment temperature of -25℃ - 70℃ . The product specification is standardized, which is convenient for production.

CE EI30 Low Frequency Transformer Epoxy Cover 240V / 50Hz / 60Hz N1 6000 Turns

CE EI30 Low Frequency Transformer Epoxy Cover 240V / 50Hz / 60Hz N1 6000 Turns

3. ELECTRICAL CHARACTERISTIC:
ITEM INPUT VOLTAGE INPUT CURRENT(1--5) (7--9)OUTPUT VOLTAGE/CURRENT DC-R
1 240V/50Hz/60Hz 9mA Max. 11.4Vac±5%/0A --kΩ MAX
2 240V/50Hz/60Hz 15mA Max. 9Vac±5%/111mA --Ω MAX
4. INSULATION & HI-POT:
1). Np--Ns:2.0kV/50Hz/1mA/60S

The implementation of standards: GB19212.5-2006 "special requirements for general purpose isolation transformer".

GB19212.7-2006 "special requirements for safe isolation transformers for general use".

GB19212.18-2006 "special requirements for transformer for switch type power supply".

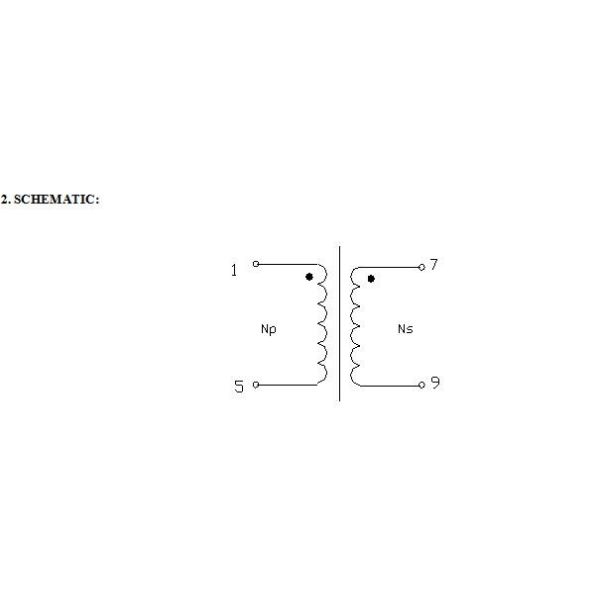

winding pin wire turns

Tape
Np 1-5 2UEW￠0.05mm 6000

1mil*8*2 layer
Ns 7-9 2UEW￠0.18mm 291

1mil*6*2 layer

5. MATERIAL:
NO. MATERIAL NAME MATERIAL NORM MANUFACTURE NOTE
1 CORE EI30 H18A 0.35T WEI SHENG or equivalent
2 BOBBIN EI30 PBT CHANG CHUN or equivalent E59481
3 WIRE MW-75C 130℃ TAI-I ELECTRIC WIRE&CABLE CO.LTD or equivalent E85640
4 TAPE CT-280,130℃ JINGJIANG YAHUA PRESSURE SENSITIVE GLUE CO,LTD or equivalent E165111
5 EPOXY 3300A/B EATTO CHEMICAL INDUSTRY CO.CLD or equivalent E218090

General information:
It is recommended that the temperature of the part does not exceed +125°C under worst case conditions.
Storage Temperature: -40°C to 85°C
Operating Temperature: -40°C to 125°C
Test conditions of Electrical Properties: 20°C, 33% RH if not specified differently


We will feel appreciated if you can provide the parameters of the product or the photo of the item.
All products of the size,electrical performance can be designed
according to customer requirements in R&D.
Don’t hesitate to contact us if any interesting in our products.
