Specifications
Brand Name :
LEPOWER(Shenzhen)
Model Number :
LY-L1803
Certification :
CE RHOS UL TUV CB SAA
Place of Origin :
Shenzhen
MOQ :
50pcs
Price :
$70-$150.00/pcs
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
5000pcs per month
Delivery Time :
5-7 days
Packaging Details :
Neutral carton packing
Type :
LED street light
Power :
150W
CRI :
Ra>70
IP rating :
IP66
IK rating :
IK10
Warranty :
5 years
Material :
Aluminum
SPD :
10KV/20KV
Luminous :
24000lm
Dimming :
PWM /DALI/1-10V/Timming/Daylight sensor
Description

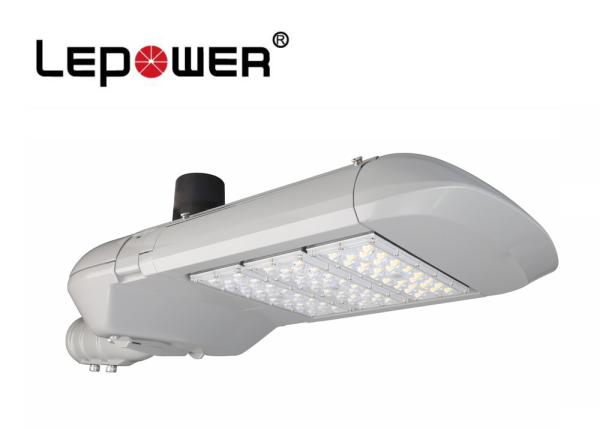

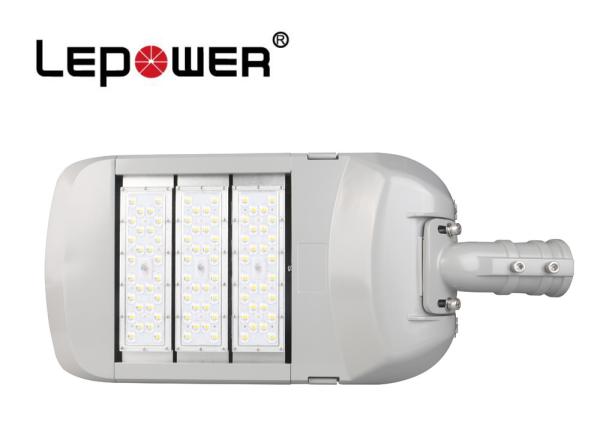

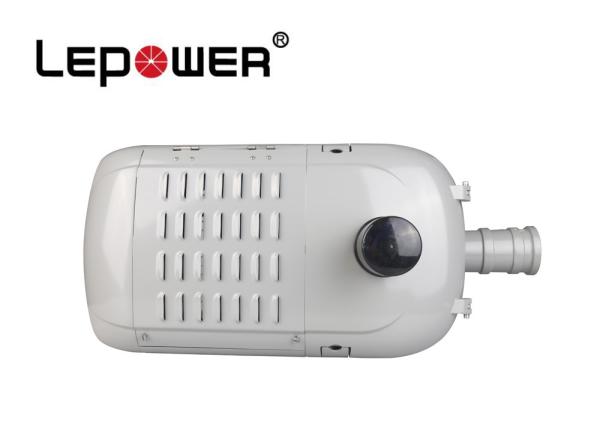

L18-100W-300W LED Street Light.

(NEMA SOCKET/DAYLIGHT SENSOR/PHOTOCELL/LORA SYSTEM OPTIONAL)

Part Number LY-L1802 LY-L1803 LY-L1804 LY-L1805 LY-L1806
Wattage 100W 150W 200W 250W 300W
Lumen Output 15000-16000lm 22500-24000lm 30000-32000lm 37500-40000lm 45000-48000lm
Luminous Efficacy 150-160lm/W 155-160lm/W 155-160lm/W 155-160lm/W 155-160lm/W
Input Voltage 90-305V AC/200-240V AC 50-60Hz
Beam Angle Typr I/Tpye II/Type III
CCT 2800~6500K
CRI ≥70 or ≥80 or ≥90
IP & IK Rating IP66&IK10
Surge protection Line earth 4KV, Line-line 10KV/20KV available
Power factor >0.95
Power efficiency 90% 90% 90% 90%
THD <15%
Working temperature -40℃~50℃ 20%~90% H.R
Storage temperature -40℃~85℃ 10%~90% H.R
Light pole size Ø60mm
Housing material AL6063-T5
Housing color Black or grey
Insulation Class 2
Options PWM /DALI/1-10V/Timming/Daylight sensor/Nema 7 Pin socket
Lifespan >50,000Hrs
N.W. 6.7kg 8.0kg 9.3kg 11.0kg 12.2kg

Why we reach 160lm/w for complete light?

*Adoption Lepower exclusive light source and ZAG Lens.

Compared with similar products,the luminous efficiency can rise 8% and light transmittance up to 98%.

*LED chip reach 200lm/w.

*Great durable heat sink,ensure the junction temperature rise less than 10°C.

*LEDs which packaged by multi-chips is high lumen, stable performance, low light failure and no dead lights.

160lm/w Energy Saving Street Lights 100w 150w 200w With Dusk To Dawn Light Sensor

Trading Conditions

1. Payment term: 30% deposit by T/T or Western union; 70% before delivery.

2. Delivery time: 10-15 days for 50pcs; 15-25 days for 500pcs.

3. Samples time: 5 days.

4. Shipping terms: FOB Shenzhen.

5. Discounts will be determined by quantity.

6. Welcome distributors to cooperate together.

Quality Control

1. Before the order to be confirmed, we will check the material & colour temperature by sample which should be strictly.

2. We will be tracing the different phase of production from the beginning.

3. Every LED lights quality checked & cleaned before packing.

4. Before delivery clients could send one QC or point the third party to check the quality.

5. We will try our best to help clients when problem occurred.

Warranty terms

1. 3/5 years warranty.

2. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, We will provide free/rework new products based on the proof-documents

3. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction, We will provide paid maintance within warranty period.

4. SAA/CE/RoHS/TUV/UL

FAQ:

Q1.Can we make our own label on the sample lights?
Yes, we can use the label you offer,we can also do OEM & ODM.

Q2.Our project is on seaside, what if your lights be corrosion by sea water?
Metal has high corrosion resistance.Besides, we do best on light surface treatment,

electrostatic spraying and electrophoresis can effectively protect our lights from salt water corrision.

Q3. I really would like to try a sample first ,is that possible?
Yes,that's sure. Our MOQ only 1 pieces,easy know each other better via samples, we look on the long term and win-win cooperation.

Q4. We now have outdoor projects need to do the lighting design,can you help us?
Sure we can, we are the leader of outdoor high power LED light supplier, our design teams can provide you the best solution.

And if you have the tech to make design yourself , we can provide the IES files for you.

Q5.I have a street/high way project,what's your suggestion?

Please give me the below information:
A:the wide of the street.
B:the arrangement and the height of the light poles
C:the requirement of the illumination.

Contact us now and get full quotation list.

We will take you a new better professional lighting.
