50 Watt LED Street Light Module DC42 - 48V LED Module With Optical PC
50 Watt LED Street Light Module DC42 - 48V LED Module With Optical PC
Specifications
Brand Name :
LEPOWER(Shenzhen)
Model Number :
LY-ML14
Certification :
CE RHOS UL TUV CB SAA
Place of Origin :
Shenzhen
MOQ :
100pcs
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
20000pcs per month
Delivery Time :
5-7 days
Power :
50W
Voltage :
DC 42-48V
Luminous effciency :
160lm/w
CRI :
Ra>70
IP degree :
IP66
Warranty :
5 years
Packaging Details :
Neutral carton packing
Description

50 Watt LED Street Light Module DC42-48V LED Module With Optical PC

Product characteristic

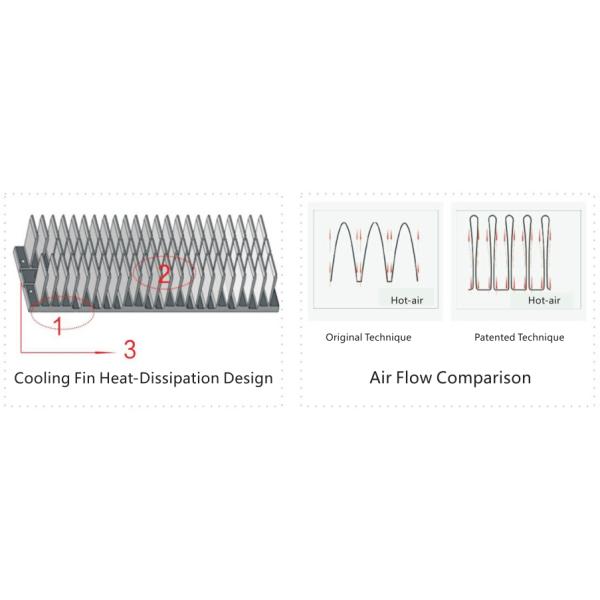

1. Good Heat Dissipation

Adoption of fin structure which is thick top and thin buttom,use of air convection“Pull Down”effect, quickly dissipate thermal.thin junction between the heat sink and fins,quickly conduct heat,temperature rise less than 10 ℃

50 Watt LED Street Light Module DC42 - 48V LED Module With Optical PC

2. High Transmittance Rate of Lens

Adoption of Lepower developed “adapable collid tech” to achieve “zero air” space between LED and Lens, make up the loss of light reflected through different media,almost zero light loss.

 50 Watt LED Street Light Module DC42 - 48V LED Module With Optical PC

3. Great Reliability

Adoption the led light source of multi-chip encapsulation,chips first connection parallel then in serial, that means each chip can work independently.Whether open or short circuit failure will not affect the voltage and current distribution for other led,thus ensuring the light source work normally,greatly enhanced the module reliability.


50 Watt LED Street Light Module DC42 - 48V LED Module With Optical PC

Date sheet

Electrical Specifications

Model Power Input Voltage CCT CRI Luminous
Efficiency		 Flux
LY-ML14 50W DC 42-48V 3000K
4000K
5000K
6000K		 ≥70 160lm/w 8000lm

Mechanical Specifications

Beam Angle Lens Light distribution

Lifetime

(hours)

 Warranty Operating
Temperature		 Storage
Temperature
150*70 Optical + PC Type II >50,000 5 years -40~50 ℃ -40~85 ℃

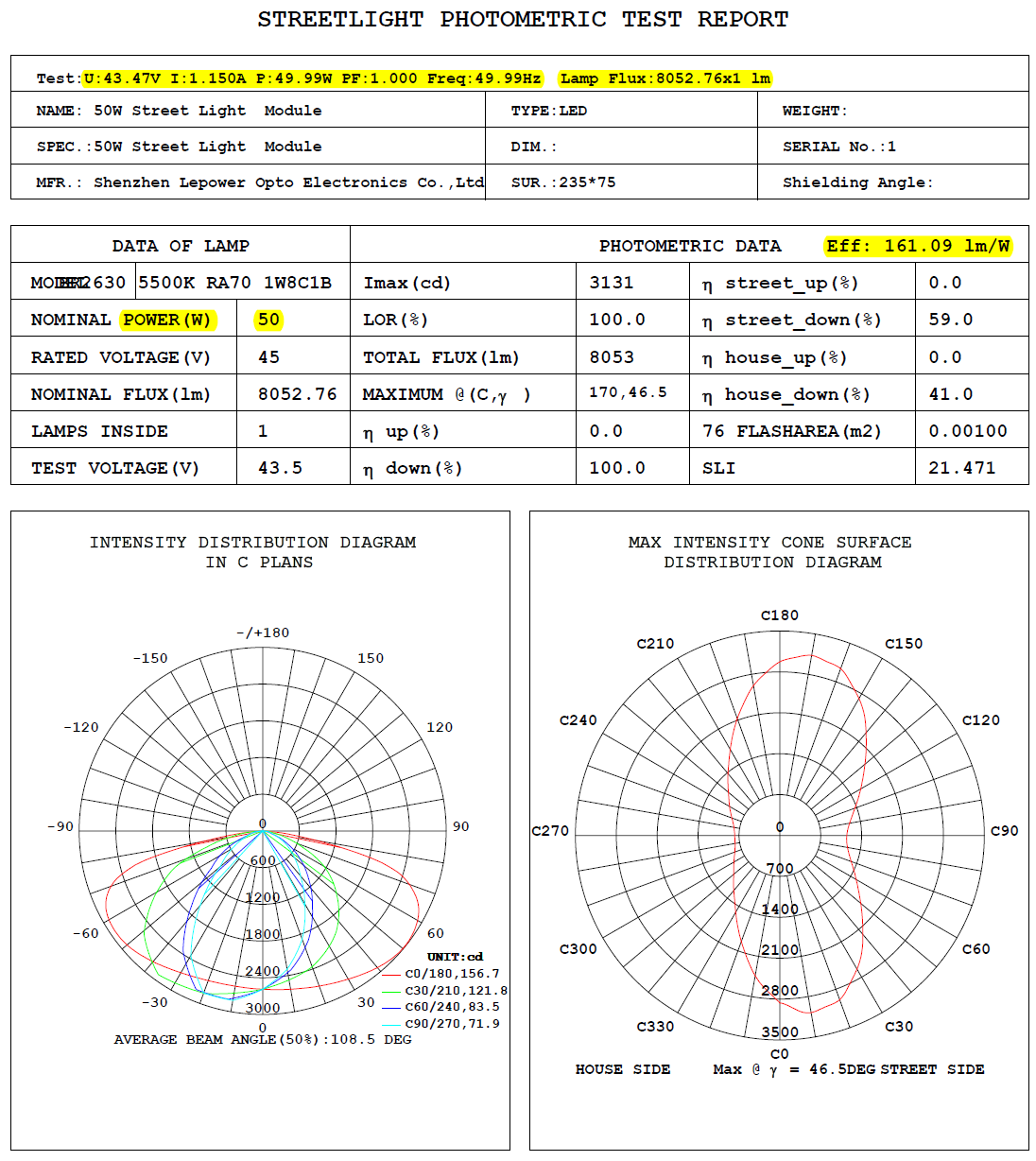

IES test report

50 Watt LED Street Light Module DC42 - 48V LED Module With Optical PC

Application

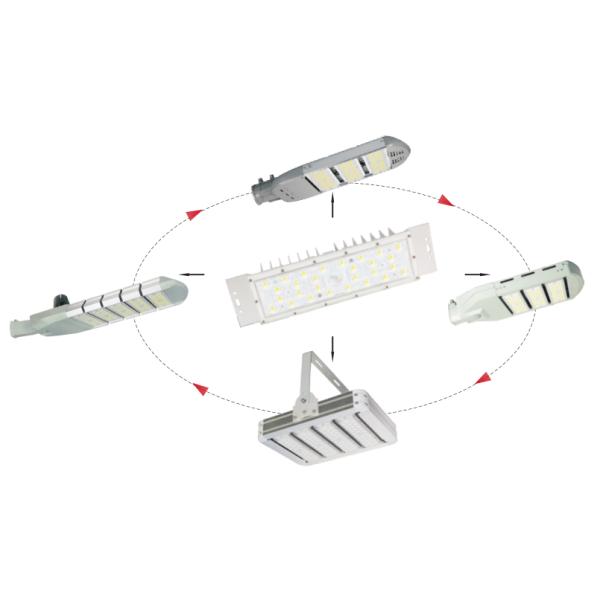

It is a standard size 300*75*50mm . It can be matched with many different housing.

50 Watt LED Street Light Module DC42 - 48V LED Module With Optical PC

Quality Control

  • Before the order to be confirmed, we will check the material & colour temperature by sample which should be strictly.
  • We will be tracing the different phase of production from the beginning.
  • Every LED lights quality checked & cleaned before packing.
  • Before delivery clients could send one QC or point the third party to check the quality.
  • We will try our best to help clients when problem occurred.
