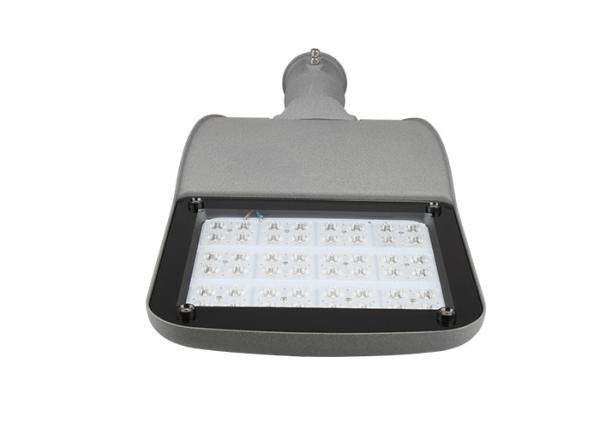

90w Die Cast Aluminum Housing Led Street Light 120lm/w For Urban Lighting

Feature

1. Special optical lens with tempered glass cover,make the good light distribution and perfect proof (water proof and dust proof)

2. With Surge Projector to protect lamp from up to 10KV/10KA.

3. Knob type, easy installation and maintenance by turn the switch do not need tools to open or close the light cap.

4. Full die-cast aluminum housing to prevent guano.

5. Green product,no UV or IR radiation, no mercury pollution.

6. The mounting angle is adjustable. The lamp can be adjusted ±15 degree.

7. High LED Efficienoy of 100-130 Lumen/W

8. It can be matched with photocell , smart controller, timer,0-10V dimming,DALI etc.

Specification

• Name: 90W outdoor led street light
• Model: LY-L20-90
• Power: 90W
• Voltage: AC 100-277V 50/60 Hz
• Body material: Die-casting aluminum + Tempered glass
• LED Chip: Bridgelux / San'an
• Led quantity: 48pcs
• CCT: 3000K / 4000K / 5000K / 6000K
• CRI: Ra>70 (80Ra optional)
• Luminous efficiency: 120lm/w
• Lumen Flux: 10800lm
• PF: >0.95
• IP degree : IP66
• Beam angle: 150*70 degree
• Operating temperature : -40℃~50℃,20%~90% H.R
• Lifetime : >50,000hours
• Warranty: 5 years

Packing information

Payment and shipping term

• Payment:T/T , 30% deposits before production, 70% balance to be paid before deliverying(paypal, western union, bank transfer are welcomed)
• Deliever time:3-7 days for samples,5-15 days for batch goods.

• Shipping port :Shenzhen , China (mainland)

• FedEx/DHL/UPS for samples , Door-to-Door

• By Air or by Sea for batch goods , for FCL ,Airport receiving

Application

It is suitable for the street lighting at highways, urban roads and secondary roads, stadiums, sidewalks, residential areas, industrial areas, squares, parks, schools, villas, gardens and other places.
