Energy Efficient 150W Pole Outdoor LED Street Lights 18000LM Over Voltage Protect
Energy Efficient 150W Pole Outdoor LED Street Lights 18000LM Over Voltage Protect
Energy Efficient 150W Pole Outdoor LED Street Lights 18000LM Over Voltage Protect
Energy Efficient 150W Pole Outdoor LED Street Lights 18000LM Over Voltage Protect
Specifications
Brand Name :
LEPOWER(Shenzhen)
Model Number :
LY-L1303
Certification :
CE RHOS UL TUV CB SAA
Place of Origin :
China
MOQ :
50pcs
Payment Terms :
Western Union Paypal , L/C, T/T
Supply Ability :
5000pcs per month
Delivery Time :
Sample:4-5 work days, bulk order:15-20 days
Packaging Details :
Neutral carton packing
Power :
150W
LED chip :
Bridgelux / San'an
LED quantity :
84pcs
Luminous efficiency :
150lm/w
CCT :
3000k/4000K/5000K/6000K
CRI :
Ra>70
Description

Outdoor IP66 Waterproof LED Light 150W LED Pole Light 18000LM Road Lighting

Product description

High lumen output The original lumen of LED is 200lm/w,the lumen output of complete lamp is 150-160lm/w,It can save more energy (60%-70%) than normal led lamps and traditional lamps.
Modular design

easy maintenance and repair. If there is a module broken, you just need to remove the broken part and put a new one. It is easy to do and will not have an impact on other parts.
Long lifespan Designed to last at least 60,000 hours at L70;
Over voltage protect

For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation ±7%, the brightness and lifetime will be reduced very fast, but for LEPOWER LED, even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current, Over Voltage, Over Heat, Thunder Protection.
Wide color temperature optional

The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable.
No pollution

Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.

Product attribute sheet

Part Name Value
1

Model

 LY-L1303
2 Power 150W
3 CCT 3000K / 4000K / 5000K / 6000K
4 Beam angle 150*70 degree
5 Chip brand Bridgelux / San'an
6 LED qty. 84pcs
7 CRI Ra>70 (80Ra optional)
8 Efficiency 150lm/w
9 Total lumen 22500lm
10 IP level IP66

Technology information

  • Housing material: Aluminum
  • Driver: Meanwell
  • Input voltage: AC 90-305V 50/60Hz
  • Power efficiency: 91%
  • PF>0.95
  • THD<20%
  • Life span: >50,000 hours
  • Pole diameter: φ60mm
  • Working temperature: -40℃~50℃,20%~90% H.R
  • Storage temperature: -40℃~85℃10%~90% H.R.
  • Size: 612*336*91mm
  • N.W.: 6.15kg
  • Carton: 665*395*150mm

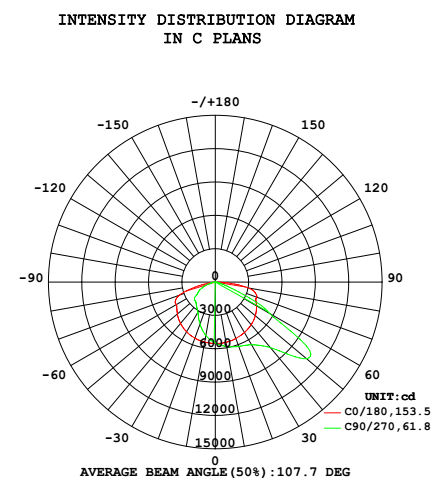

Light distribution

Energy Efficient 150W Pole Outdoor LED Street Lights 18000LM Over Voltage Protect

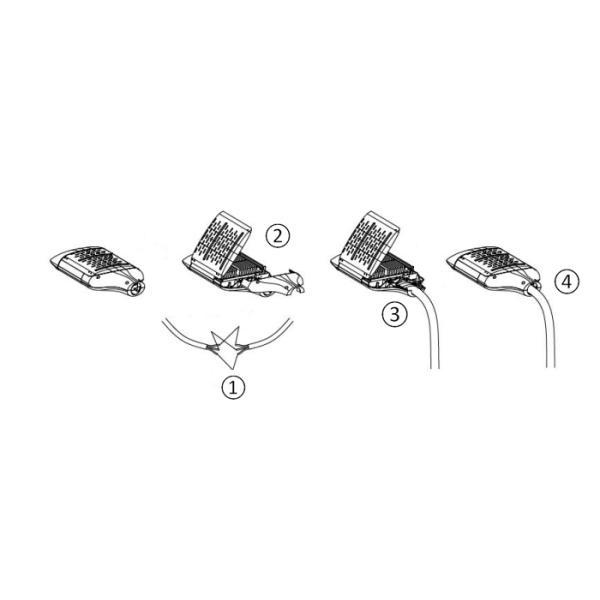

Installation

Energy Efficient 150W Pole Outdoor LED Street Lights 18000LM Over Voltage Protect

  • Connect the wires to the AC wire,Make sure that Yellow-green ground wire grounding reliably.
  • Remove the screws of back cover,open the back and remove the back cover.
  • Through the poles into the adapter,tighten the screws firmly on the lamp poles.
  • Put the back cover back and tighten the screws.

Energy Efficient 150W Pole Outdoor LED Street Lights 18000LM Over Voltage Protect

Trading Conditions

1. Payment term: 30% deposit by T/T or Western union; 70% before delivery.

2. Delivery time: 10-15 days for 50pcs; 15-25 days for 500pcs.

3. Samples time: 5 days.

4. Shipping terms: FOB Shenzhen.

5. Discounts will be determined by quantity.

6. Welcome distributors to cooperate together.
