Electric Data | |||||
Model | LY-S1-60W | LY-S1-80W | LY-S1-100W | LY-S1-120W | LY-S1-150W |
Power | 60W | 80W | 100W | 120W | 150W |
Input Voltage | AC 90-305V 50/60Hz | ||||
Photometric Specifications | |||||
LEDs | 5050 LED | ||||
CRI | >70(>80,>90 optional) | ||||
CCT | 3000K/4000/5000K/5500K | ||||
Beam Angle | 60°/90°/120° | ||||
Luminous Efficiency | 165Lm/w | 160Lm/w | 160Lm/w | 160Lm/w | 160Lm/w |
Luminous Flux | 9900lm±300lm | 12800lm±300lm | 16000lm±500lm | 19200lm±500lm | 24000lm±500lm |
LEDs Qty. | 40pcs | 40pcs | 50pcs | 60pcs | 80pcs |
Mechanial Specifications | |||||
IP Rate | IP65 | ||||
Working Environment | -40℃~50℃,20%~90% H.R | ||||
Storage Temperature | -40℃~85℃,10%~90% H.R. | ||||
Body Material | Aluminum | ||||
Lens Material | PC | ||||
Dimmable | 0-10V,PWM,Microwave motion sensor | ||||
N.W. | 2.5KG | 3.3KG | |||
Lamp Size(mm) | Ø273x182mm | Ø273x192.5mm | |||
Lamp Size(inch) | Ø10.75x7.16in | Ø10.75x7.58in | |||
Lifespan | >50,000 Hours (Ta=30℃@L70) |

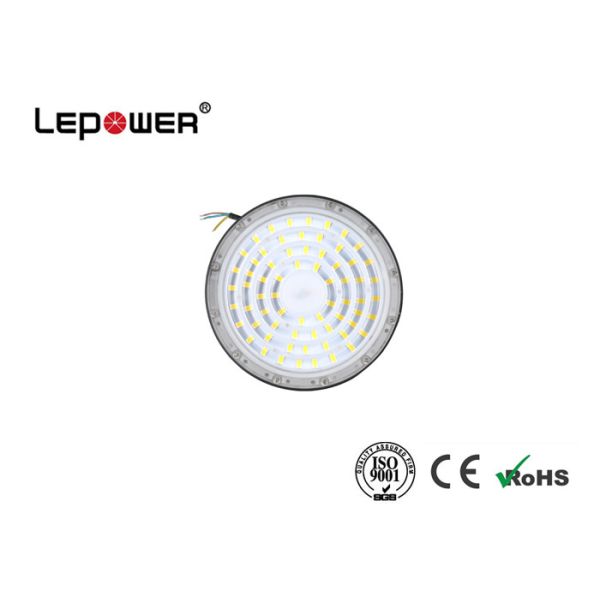

The main advantages of 60w-150w LED High Bay Light series.
1. Heat sink for aluminium alloy with powder spraying process. Anti-corrosion,no toxicity or pollution.
2. USA Bridgelux chip,from TOP 5 LED chip manufacturer,delivering high luminous efficiency up to 200lm/w
3. Accurate engineered lens made of optical grade polycarbonate,light transmittance >98%
4. Multiple brackets improving installation time.
5. The steel safety rope offer double protection.4. Multiple brackets improving installation time.
6. Ready for smart system. 0-10V,PWM,Microwave motion sensor available.
Warranty terms
1. 3/5 years warranty.
2. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, LEPOWER will provide free/rework new products based on the proof-documents
3. If failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction, LEPOWER will provide paid maintance within warranty period.
4. SAA/CE/RoHS/TUV/UL
FAQ:
Q1.Can we make our own label on the sample lights?
Yes, we can use the label you offer,we can also do OEM & ODM.
Q2.Our project is on seaside, what if your lights be corrosion by sea water?
Aluminium alloy has high corrosion resistance.Besides, we do best on light surface treatment,
electrostatic spraying and electrophoresis can effectively protect our lights from salt water corrision.
Q3. I really would like to try a sample first ,is that possible?
Yes,that's sure. Our MOQ only 1 piece,easy know each other better via samples, we look on the long term and win-win cooperation.
Q4. We now have football stadium projects need to do the lighting design,can you help us?
Sure we can, we are the leader of outdoor high power LED flood lights and LED design provider, our design teams can provide you the best solution. And if you have the tech to make design by yourself , we can provide the IES files for you.
Q4.I have a warehouse/workshop ,what's your suggestion?
A: please give me the below information:
1. the area of the warehouse/workshop
2. the installation height
3. the requirement of the illumination/lux
