Specifications
Brand Name :
HAIYANG
Model Number :
HM01098
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 Meter/Meters
Price :
0.5$/m(1~10m);0.43$/m(>1000m)
Supply Ability :
5000 Metric Ton/Metric Tons per Year
Packaging Details :
6m or 12m per piece
Specification :
DN20mm-1600mm
Color :
Black or Customer requesting
Usage :
Water irrigation
Raw material :
PE100
Size :
Customized Size
MOQ :
100 Meters
Sample :
Provide Samples
Advantage :
High Performance
Description

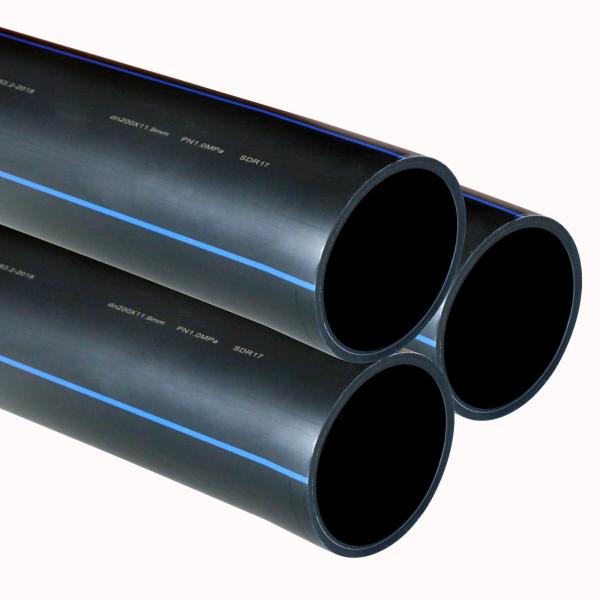

High Quality HDPE Pipe SDR11 PN16 PE Plastic Socket Fusion Flange Joint For Water Supply Pipe

----------------------------------------

Basic Info.

HDPE pipe is a highly crystalline, non-polar thermoplastic resin. Generally, the application range of PE pipes for water supply pipelines is below 40°C, and cannot be used for hot water delivery pipelines. The appearance of the original HDPE is milky white, and it is translucent to a certain extent in the thin section. PE pipe material has excellent resistance to most household and industrial chemicals. Certain types of chemicals are chemically aggressive, such as corrosive oxidants (concentrated nitric acid), aromatic hydrocarbons (xylene), and halogenated hydrocarbons (carbon tetrachloride).

Size PN2.0MPa PN1.6MPa PN1.25MPa PN1.0MPa PN0.8MPa PN0.6MPa
SDR 9 SDR 11 SDR 13.6 SDR 17 SDR 21 SDR 26
OD(inch) OD(mm) thickness thickness thickness thickness thickness thickness
1/2 20 2.3 2.3
3/4 25 3 2.3 2.3
1 32 3.6 3 2.4
1 1/4 40 4.5 3.7 3 2.4
1 1/2 50 5.6 4.6 3.7 3
2 63 7.1 5.8 4.7 3.8
2.5 75 8.4 6.8 5.6 4.5
3 90 10.1 8.2 6.7 5.4 4.3
4 110 12.3 10 8.1 6.6 5.3 4.2
5 125 14 11.4 9.2 7.4 6 4.8
5 140 15.7 12.7 10.3 8.3 6.7 5.4
6 160 17.9 14.6 11.8 9.5 7.7 6.2
7 180 20.1 16.4 13.3 10.7 8.6 6.9
8 200 22.4 18.2 14.7 11.9 9.6 7.7
8 225 25.2 20.5 16.6 13.4 10.8 8.6
10 250 27.9 22.7 18.4 14.8 11.9 9.6
11 280 31.3 25.4 20.6 16.6 13.4 10.7
12 315 35.2 28.6 23.2 18.7 15 12.1
14 355 39.7 32.2 26.1 21.1 16.9 13.6
16 400 44.7 36.3 29.4 23.7 19.1 15.3
18 450 50.3 40.9 33.1 26.7 21.5 17.2
20 500 55.8 45.4 36.8 29.7 23.9 19.1
22 560 62.5 50.8 41.2 33.2 26.7 21.4
24 630 70.3 57.2 46.3 37.4 30 24.1
28 710 79.3 64.5 52.2 42.1 33.9 27.2
32 800 89.3 72.6 58.8 47.4 38.1 30.6
36 900 81.8 66.2 53.3 42.9 34.4
40 1000 90.2 72.5 59.3 47.7 38.2
48 1200 88.2 67.9 57.2 45.9
55 1400 102.9 82.4 66.7 53.5
60 1500 110.2 88.2 71.4 57.6
65 1600 117.6 94.1 76.2 61.2

Advantage

1. Excellent corrosion resistance, better hygiene performance and longer service life
2. Unique flexibility and excellent scratch resistance
3. Very outstanding low temperature resistance
4. Good fracture toughness with rapid crack growth

Details

SDR11 HDPE Pipe PN16 PE Plastic Socket Fusion Flange Joint For Water Supply PipeSDR11 HDPE Pipe PN16 PE Plastic Socket Fusion Flange Joint For Water Supply PipeSDR11 HDPE Pipe PN16 PE Plastic Socket Fusion Flange Joint For Water Supply PipeSDR11 HDPE Pipe PN16 PE Plastic Socket Fusion Flange Joint For Water Supply Pipe

Application

The materials used in HDPE pipes are mainly polyvinyl chloride (PVC), polyethylene (PE) and polypropylene (PP). Compared with other plastic pipes (such as PVC), high-density polyethylene (HDPE) pipes have the characteristics of low density, good toughness, corrosion resistance, good insulation performance, easy construction and installation, and are widely used in municipal and building water supply and drainage, gas , heating and heating, wire and cable threading, agricultural water-saving irrigation and other fields.

Certificate

SDR11 HDPE Pipe PN16 PE Plastic Socket Fusion Flange Joint For Water Supply Pipe

SDR11 HDPE Pipe PN16 PE Plastic Socket Fusion Flange Joint For Water Supply Pipe

SDR11 HDPE Pipe PN16 PE Plastic Socket Fusion Flange Joint For Water Supply Pipe

Company Profile

High Mountain Pipe is committed to producing and selling plastic pipes, fittings, valves and related plumbing accessories. by providing professional solutions for water supply systems The production and distribution of our main products, PE Plumbing Pipes and HDPE Drainage Pipes are industry leaders.

Adhering to the corporate philosophy of "people-oriented, honesty and win-win", we are committed to the research and development of new building materials. We are willing to sincerely cooperate with friends from all walks of life to create a better tomorrow.

"Professional focus, pursuit of innovation, quality first, customer satisfaction" is our unremitting quality policy.
In the past, present and future, the company regards production quality as a sharp sword in the market fight, and has formed a strict quality inspection and supervision system. It is the first in the industry to pass IS09001-2000 quality system certification and IS09001-2000 environmental system certification. "Service is also a product", our company provides users with thoughtful and meticulous full-process high-quality services in the pre-sales, in-sales and after-sales processes. The company has more than 20 professional after-sales service personnel to provide users with reasonable product design, construction and installation. Program and technical support.

SDR11 HDPE Pipe PN16 PE Plastic Socket Fusion Flange Joint For Water Supply Pipe SDR11 HDPE Pipe PN16 PE Plastic Socket Fusion Flange Joint For Water Supply Pipe

SDR11 HDPE Pipe PN16 PE Plastic Socket Fusion Flange Joint For Water Supply Pipe SDR11 HDPE Pipe PN16 PE Plastic Socket Fusion Flange Joint For Water Supply Pipe
