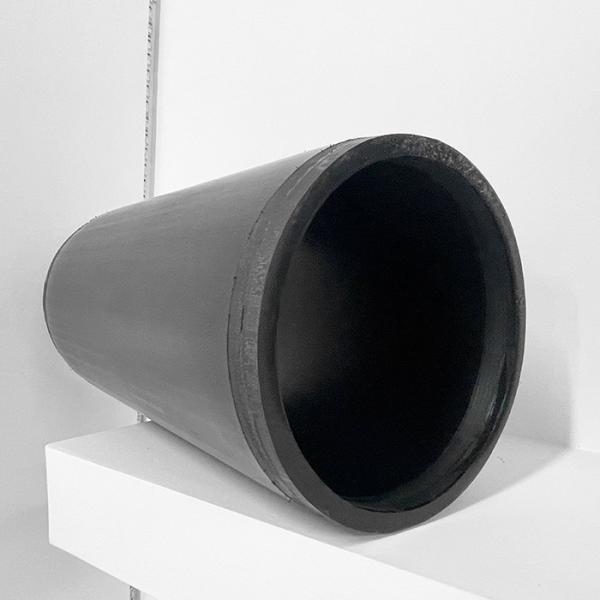

OD 4 8 10 inch Agriculture HDPE Water Supply Pipes PE 100 200 315
OD 4 8 10 inch Agriculture HDPE Water Supply Pipes PE 100 200 315
OD 4 8 10 inch Agriculture HDPE Water Supply Pipes PE 100 200 315
OD 4 8 10 inch Agriculture HDPE Water Supply Pipes PE 100 200 315
OD 4 8 10 inch Agriculture HDPE Water Supply Pipes PE 100 200 315
OD 4 8 10 inch Agriculture HDPE Water Supply Pipes PE 100 200 315
OD 4 8 10 inch Agriculture HDPE Water Supply Pipes PE 100 200 315
OD 4 8 10 inch Agriculture HDPE Water Supply Pipes PE 100 200 315
OD 4 8 10 inch Agriculture HDPE Water Supply Pipes PE 100 200 315
OD 4 8 10 inch Agriculture HDPE Water Supply Pipes PE 100 200 315
Specifications
Brand Name :
HAIYANG
Model Number :
HM01002
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 Meter/Meters
Price :
0.5$/m(1~10m);0.43$/m(>1000m)
Supply Ability :
5000 Metric Ton/Metric Tons per Year
Packaging Details :
6m or 12m per piece
Specification :
DN20mm-65mm
Color :
Black,Blue or Black with Blue strip
Usage :
Water supply
Raw material :
PE100
Size :
Customized Size
MOQ :
100 Meters
Sample :
Provide Samples
Advantage :
High Performance
Description

HDPE pipe PE100 grade water supply pipes pe solid wall pipe PE200 for water supply and drainage pe315 hot melt

----------------------------------------

Basic Info.

Water supply pipes need to withstand pressure, usually PE resin with high molecular weight and good mechanical properties, such as HDPE resin, should be used.

Size PN2.0MPa PN1.6MPa PN1.25MPa PN1.0MPa PN0.8MPa PN0.6MPa
SDR 9 SDR 11 SDR 13.6 SDR 17 SDR 21 SDR 26
OD(inch) OD(mm) thickness thickness thickness thickness thickness thickness
1/2 20 2.3 2.3
3/4 25 3 2.3 2.3
1 32 3.6 3 2.4
1 1/4 40 4.5 3.7 3 2.4
1 1/2 50 5.6 4.6 3.7 3
2 63 7.1 5.8 4.7 3.8
2.5 75 8.4 6.8 5.6 4.5
3 90 10.1 8.2 6.7 5.4 4.3
4 110 12.3 10 8.1 6.6 5.3 4.2
5 125 14 11.4 9.2 7.4 6 4.8
5 140 15.7 12.7 10.3 8.3 6.7 5.4
6 160 17.9 14.6 11.8 9.5 7.7 6.2
7 180 20.1 16.4 13.3 10.7 8.6 6.9
8 200 22.4 18.2 14.7 11.9 9.6 7.7
8 225 25.2 20.5 16.6 13.4 10.8 8.6
10 250 27.9 22.7 18.4 14.8 11.9 9.6
11 280 31.3 25.4 20.6 16.6 13.4 10.7
12 315 35.2 28.6 23.2 18.7 15 12.1
14 355 39.7 32.2 26.1 21.1 16.9 13.6
16 400 44.7 36.3 29.4 23.7 19.1 15.3
18 450 50.3 40.9 33.1 26.7 21.5 17.2
20 500 55.8 45.4 36.8 29.7 23.9 19.1
22 560 62.5 50.8 41.2 33.2 26.7 21.4
24 630 70.3 57.2 46.3 37.4 30 24.1
28 710 79.3 64.5 52.2 42.1 33.9 27.2
32 800 89.3 72.6 58.8 47.4 38.1 30.6
36 900 81.8 66.2 53.3 42.9 34.4
40 1000 90.2 72.5 59.3 47.7 38.2
48 1200 88.2 67.9 57.2 45.9
55 1400 102.9 82.4 66.7 53.5
60 1500 110.2 88.2 71.4 57.6
65 1600 117.6 94.1 76.2 61.2

OD 4 8 10 inch Agriculture HDPE Water Supply Pipes PE 100 200 315

Advantage

1. Reliable connection: The polyethylene pipe system adopts electric heating connection, and the joint strength is higher than the strength of the pipe body.

2. Good low-temperature impact resistance: The low-temperature embrittlement temperature of polyethylene is extremely low, and it can be used reliably in the temperature range of -60-60℃. During construction in winter, the pipe will not be brittle due to the good impact resistance of the material.

3. Good resistance to stress cracking: HDPE has low notch sensitivity, high shear strength and excellent scratch resistance, as well as excellent resistance to environmental stress cracking.

4. Good chemical resistance: HDPE pipes are resistant to corrosion by a variety of chemical media, and the chemical substances in the soil will not cause any degradation to the pipes. Polyethylene is an electrical insulator and will not rot, rust or electrochemically corrode; in addition, it will not cause the growth of algae, bacteria or fungi. However, harmful substances are released during the combustion process.

Details

OD 4 8 10 inch Agriculture HDPE Water Supply Pipes PE 100 200 315 OD 4 8 10 inch Agriculture HDPE Water Supply Pipes PE 100 200 315

OD 4 8 10 inch Agriculture HDPE Water Supply Pipes PE 100 200 315 OD 4 8 10 inch Agriculture HDPE Water Supply Pipes PE 100 200 315

Application

Supply water for cities and residential areas, industrial enterprises, railway transportation, agriculture, construction sites, and military

Certificate

OD 4 8 10 inch Agriculture HDPE Water Supply Pipes PE 100 200 315

OD 4 8 10 inch Agriculture HDPE Water Supply Pipes PE 100 200 315

OD 4 8 10 inch Agriculture HDPE Water Supply Pipes PE 100 200 315

Company Profile

High Mountain Technology Co., Ltd. is committed to manufacturing and selling various plastic pipes, fittings, valves and related plumbing fixtures, providing professional solutions for plumbing systems. The manufacturing and sales of our main products, PE water supply pipes and HDPE drainage pipes, are in a leading position in the industry.

The company covers an area of about 200,000 square meters, has 6 workshops, 30 production lines, 300 workers, and an annual production capacity of 200,000 tons. A comprehensive company integrating science, industry and trade. The industries involved include the research, manufacturing, development, manufacturing and polymer materials of plastic pipes. All products meet the requirements of national or enterprise inspection standards.

OD 4 8 10 inch Agriculture HDPE Water Supply Pipes PE 100 200 315 OD 4 8 10 inch Agriculture HDPE Water Supply Pipes PE 100 200 315

OD 4 8 10 inch Agriculture HDPE Water Supply Pipes PE 100 200 315 OD 4 8 10 inch Agriculture HDPE Water Supply Pipes PE 100 200 315

FAQ

Q: Where is your company?
A: We are located in Wuxi, Jiangsu, China.

Q: What is your minimum order quantity?
A: Accessories: one box or one bag.
Pipeline: 200~5000 meters/size, depending on different sizes.

Q: How to buy products?
A: Send an email to us and we will get back to you within one day.
