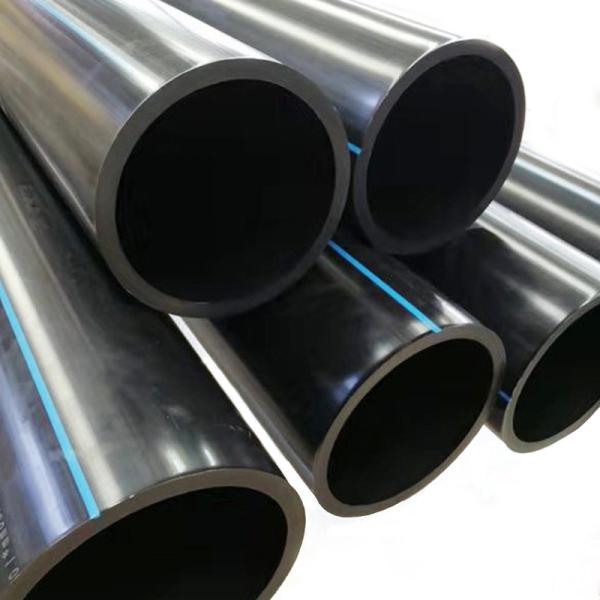

HDPE Water Supply Pipe Efficient Water Drainage And Sewage PE Pipe
HDPE Water Supply Pipe Efficient Water Drainage And Sewage PE Pipe
HDPE Water Supply Pipe Efficient Water Drainage And Sewage PE Pipe
HDPE Water Supply Pipe Efficient Water Drainage And Sewage PE Pipe
HDPE Water Supply Pipe Efficient Water Drainage And Sewage PE Pipe
HDPE Water Supply Pipe Efficient Water Drainage And Sewage PE Pipe
HDPE Water Supply Pipe Efficient Water Drainage And Sewage PE Pipe
HDPE Water Supply Pipe Efficient Water Drainage And Sewage PE Pipe
HDPE Water Supply Pipe Efficient Water Drainage And Sewage PE Pipe
HDPE Water Supply Pipe Efficient Water Drainage And Sewage PE Pipe
HDPE Water Supply Pipe Efficient Water Drainage And Sewage PE Pipe
HDPE Water Supply Pipe Efficient Water Drainage And Sewage PE Pipe
Specifications
Brand Name :
HAIYANG
Model Number :
HM1-83
Certification :
ISO9001,14001,45001
Place of Origin :
China
MOQ :
10 Meter/Meters
Price :
0.5$/m(1~10m);0.43$/m(>1000m)
Supply Ability :
5000 Metric Ton/Metric Tons per Year
Packaging Details :
6m or 12m per piece
Specification :
DN20-DN800mm
Color :
Black,white,grey,green or at request
Usage :
Water supply
Raw material :
PE
Size :
Customized Size
Working pressure :
0.2mpa-2.5mpa
Sample :
Provide Sample
Advantage :
High Quality
Length :
As costomer requirements
Description

HDPE Water Supply Pipe Efficient Water Drainage And Sewage PE Pipe

----------------------------------------

Basic Info.

The main features of HDPE pipes are: good toughness and flexibility; small friction coefficient and strong passing ability; convenient construction, good chemical stability, long service life, suitable deflection, good resistance to rapid crack transmission, resistance to Low temperature, conform to the requirements of the times, "green" environmental protection.

Diameter(mm) Outer diameter(mm) Wall thickness
(mm)		 Weight/m
(kg)		 Weight/root(kg) Root/km Weight/km(ton)
80 98 6 12.2 76.5 167 12.77
100 118 6.1 15.1 95 167 15.87
150 170 6.3 22.8 144 167 20.05
200 220 6.4 30.6 194 167 32.4
250 274 6.8 40.2 255 167 42.59
300 326 7.2 50.8 323 167 53.94
350 378 7.7 63.2 403 167 67.3
400 429 8.1 75.5 482 167 80.48
450 480 8.6 89.3 575 167 95.86
500 532 9 104.3 669 167 111.72
600 635 9.9 137.3 882 167 147.29
700 738 10.8 173.9 1123 167 187.54
800 842 11.7 215.2 1394 167 232.8
900 945 12.6 260.2 1691 167 282.4
1000 1048 13.5 309.3 2017 167 336.84
1200 1255 15.3 420.1 2758 167 460.69

Advantage

1. Unique flexibility and excellent scratch resistance
2. Very outstanding low temperature resistance
3. Good fracture toughness with rapid crack growth

Details

HDPE Water Supply Pipe Efficient Water Drainage And Sewage PE Pipe HDPE Water Supply Pipe Efficient Water Drainage And Sewage PE Pipe

HDPE Water Supply Pipe Efficient Water Drainage And Sewage PE Pipe HDPE Water Supply Pipe Efficient Water Drainage And Sewage PE Pipe

Application

Polyethylene PE water supply pipes are widely used in building water supply, building drainage, buried drainage pipes, building heating, gas transmission pipes, welding and telecommunications maintenance casings, industrial pipes, and agricultural pipes because of their unique advantages. Wait. Its key applications are urban water supply, urban gas supply, farmland irrigation and other industries. PE (polyethylene) raw materials are widely used in the water supply pipe manufacturing industry because of their high strength, corrosion resistance, and non-toxic properties; because it is not easy Rust, therefore, is an ideal pipe to replace ordinary iron water supply pipes.

Certificate

HDPE Water Supply Pipe Efficient Water Drainage And Sewage PE Pipe

HDPE Water Supply Pipe Efficient Water Drainage And Sewage PE Pipe

HDPE Water Supply Pipe Efficient Water Drainage And Sewage PE Pipe

Company Profile

Located in Jiangsu, with convenient water and land transportation. It is a comprehensive enterprise integrating research, development, design, application, production and sales. The company has production lines for PE water supply pipes with larger diameters, prestressed corrugated pipes, corrugated pipe production lines, PVC pipe production lines and other equipment. Specializing in the production of PE water supply pipes, prestressed corrugated pipes, HDPE corrugated pipes, plastic blind trenches, permeable pipes, etc. The products are mainly used in municipal administration, highways, railways, water conservancy, power, environmental greening and infrastructure construction, and are used in municipalities and expressways. Many national key projects such as railways and railways have been well received by engineering experts and users.


HDPE Water Supply Pipe Efficient Water Drainage And Sewage PE Pipe HDPE Water Supply Pipe Efficient Water Drainage And Sewage PE Pipe

HDPE Water Supply Pipe Efficient Water Drainage And Sewage PE Pipe HDPE Water Supply Pipe Efficient Water Drainage And Sewage PE Pipe

FAQ

Q: Which payment method can your company use?
A: T/T, L/C or full trade insurance. You can choose the one that is convenient for you.

Q: How and when can I receive my goods after payment?


A: For small batch products, they will be delivered to you by international express (DHL, FedEx, TNT, etc.) or by air. It usually takes 3-5 days to receive the goods after delivery. For high-volume products, it is worthwhile to see the goods and deliver them. It takes several days to several weeks to reach the destination port, depending on the location of the port.

Q: How to buy products?
A: Send an email to us and we will get back to you within one day.
