Specifications
Brand Name :
HAIYANG
Model Number :
HM01018
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 Meter/Meters
Price :
0.5$/m(1~10m);0.43$/m(>1000m)
Supply Ability :
5000 Metric Ton/Metric Tons per Year
Packaging Details :
6m or 12m per piece
Specification :
DN25mm-1000mm
Color :
Black or Customer request
Usage :
Water supply
Raw material :
PE100
Size :
Customized Size
MOQ :
100 Meters
Sample :
Provide Samples
Advantage :
High Performance
Description

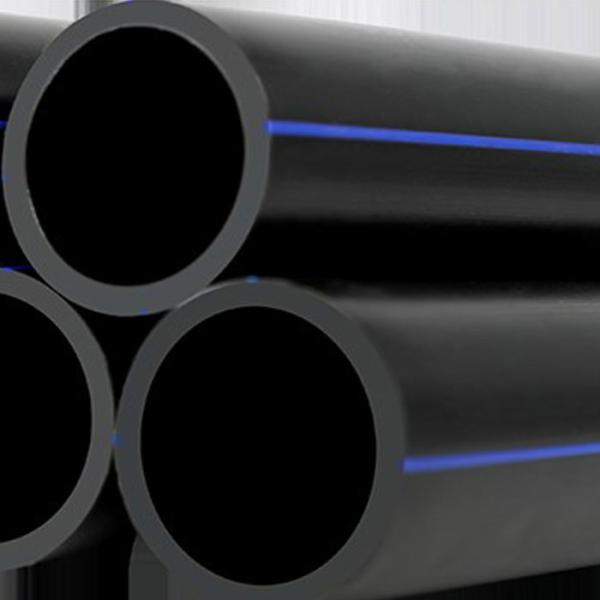

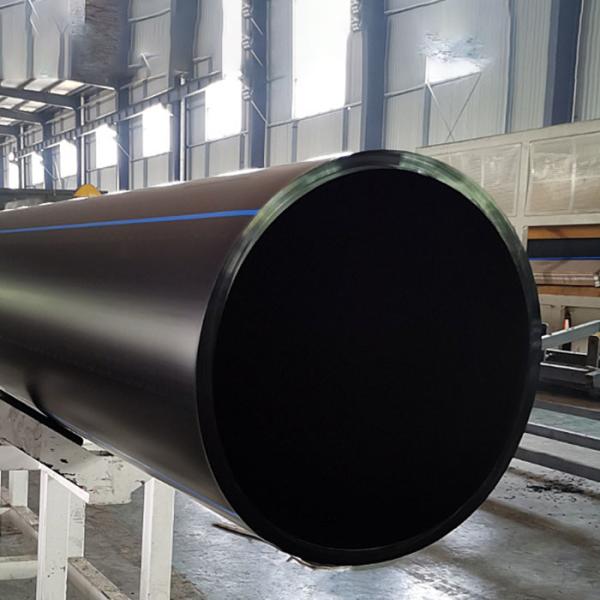

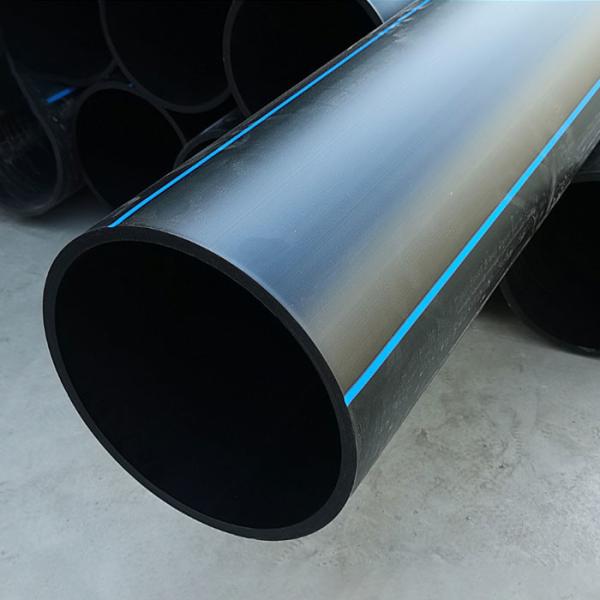

HDPE Water Supply Pipe PE Plastic PE Pipes Farmland Water-Saving Irrigation And Drainage Hot Melt Pipe
----------------------------------------

Basic Info.

HDPE water supply pipe uses PE100 high-density polyethylene as the raw material for extrusion molding, replacing the traditional galvanized pipe, creating a new world in the water supply field.

Outer Diameter
DN (mm)
SDR 9
PN20
SDR 11
PN16
SDR 13.6
PN12.5
SDR 17
PN10
SDR21
PN8
SDR26
PN6
Packing
Loaded into 40GP/Piece
6m or 12m per Piece
Wall Thick Ness(mm) Wall Thick Ness(mm) Wall Thick Ness(mm) Wall Thick Ness(mm) Wall Thick Ness(mm) Wall Thick Ness(mm)
75 8.4 6.8 5.6 4.5 1085
90 10.1 8.2 6.7 5.4 4.3 754
110 12.3 10 8.1 6.6 5.3 4.2 504
125 14 11.4 9.2 7.4 6 4.8 378
140 15.7 12.7 10.3 8.3 6.7 5.4 304
160 17.9 14.6 11.8 9.5 7.7 6.2 224
180 20.1 16.4 13.3 10.7 8.6 6.9 182
200 22.4 18.2 14.7 11.9 9.6 7.7 143
225 25.2 20.5 16.6 13.4 10.8 8.6 110
250 27.9 22.7 18.4 14.8 11.9 9.6 90
280 31.3 25.4 20.6 16.6 13.4 10.7 72
315 35.2 28.6 23.2 18.7 15 12.1 56
355 39.7 32.2 26.1 21.1 16.9 13.6 42
400 44.7 36.3 29.4 23.7 19.1 15.3 30
450 50.3 40.9 33.1 26.7 21.5 17.2 25
500 55.8 45.4 36.8 29.7 23.9 19.1 20
560 62.5 50.8 41.2 33.2 26.7 21.4 16
630 70.3 57.2 46.3 37.4 30 24.1 12
710 64.5 52.2 42.1 33.9 27.2 9
800 72.7 58.8 47.4 38.1 30.6 6
900 81.8 66.2 53.3 42.9 34.4 6
1000 90.2 72.5 59.3 47.7 38.2 4
1200 88.2 67.9 57.2 45.9
1400 102.9 82.4 66.7 53.5
1500 110.2 88.2 71.4 57.6
1600 117.6 94.1 76.2 61.2

Farmland HDPE Water Supply Pipes Hot Melt Irrigation Drainage Pipe Customized

Advantage

1. High strength, excellent resistance to environmental stress cracking, and good creep resistance;

2. Good toughness, flexibility, strong adaptability to uneven foundation and dislocation, and can withstand harsh environments such as earthquakes and typhoons;

3. Has good weather resistance and long-term thermal stability;

4. Corrosion resistance, no need for anti-corrosion treatment, long service life;

5. The inner wall is smooth, the water flow resistance is small, the circulation capacity is large, and the construction cost is saved;

6. Good wear resistance and anti-wear;

7. Good low-temperature impact resistance, which can be safely affected in the temperature range of -20~40℃

Details

Farmland HDPE Water Supply Pipes Hot Melt Irrigation Drainage Pipe Customized Farmland HDPE Water Supply Pipes Hot Melt Irrigation Drainage Pipe Customized

Farmland HDPE Water Supply Pipes Hot Melt Irrigation Drainage Pipe Customized Farmland HDPE Water Supply Pipes Hot Melt Irrigation Drainage Pipe Customized

Application

Urban tap water pipe network system;

Urban and rural drinking water pipelines;

Agricultural irrigation pipes;

Mine mortar conveying pipeline;

Protective sleeves for post and telecommunications lines and power wires;

Material and liquid transportation pipelines in chemical, chemical fiber, food, forestry, printing and dyeing, pharmaceutical, light industry, papermaking, metallurgical and other industries.


Certificate

Farmland HDPE Water Supply Pipes Hot Melt Irrigation Drainage Pipe Customized
Farmland HDPE Water Supply Pipes Hot Melt Irrigation Drainage Pipe Customized
Farmland HDPE Water Supply Pipes Hot Melt Irrigation Drainage Pipe Customized
Company Profile


High Mountain Pipe Industry is a high-tech enterprise integrating production and sales of sewage treatment equipment and municipal water supply and drainage pipelines. With a long-term vision and taking advantage of the background of Internet big data, we rely on our own production technology strength to continuously explore the transformation and upgrading strategies of traditional production enterprises, and become a new domestic "Internet + pipeline building material" production enterprise! The company integrates product development, production and sales.


Farmland HDPE Water Supply Pipes Hot Melt Irrigation Drainage Pipe Customized Farmland HDPE Water Supply Pipes Hot Melt Irrigation Drainage Pipe Customized

Farmland HDPE Water Supply Pipes Hot Melt Irrigation Drainage Pipe Customized Farmland HDPE Water Supply Pipes Hot Melt Irrigation Drainage Pipe Customized

FAQ

Q: What is your minimum order quantity?
A: Accessories: one box or one bag.
Pipeline: 200~5000 meters/size, depending on different sizes.

Q: What is your warranty policy?
A: The product is guaranteed for two years from the date of shipment (or leaving the seller's factory depending on the terms).
It is also guaranteed that the product can be used for 50 years.

Q: After reading your FAQ, I am very satisfied. How can I start buying my order?
A: Please contact our sales manager by email or phone, thank you.
