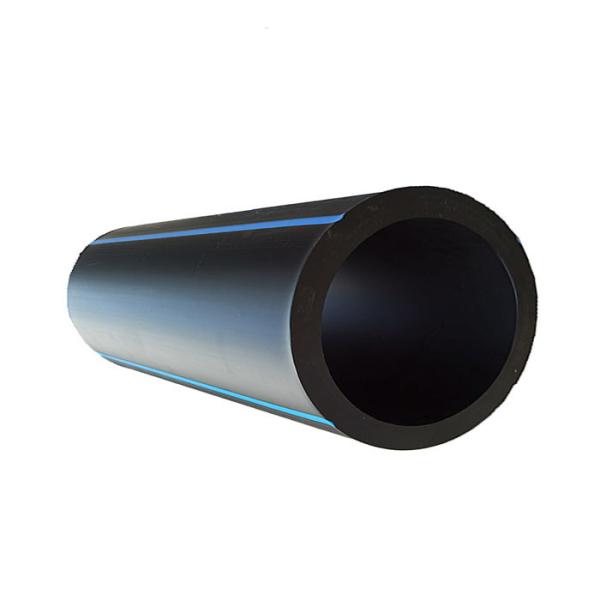

Drainage HDPE Water Supply Pipes High Performance PE 110 Solid Wall Hdpe Pipe
Drainage HDPE Water Supply Pipes High Performance PE 110 Solid Wall Hdpe Pipe
Drainage HDPE Water Supply Pipes High Performance PE 110 Solid Wall Hdpe Pipe
Drainage HDPE Water Supply Pipes High Performance PE 110 Solid Wall Hdpe Pipe
Drainage HDPE Water Supply Pipes High Performance PE 110 Solid Wall Hdpe Pipe
Drainage HDPE Water Supply Pipes High Performance PE 110 Solid Wall Hdpe Pipe
Drainage HDPE Water Supply Pipes High Performance PE 110 Solid Wall Hdpe Pipe
Drainage HDPE Water Supply Pipes High Performance PE 110 Solid Wall Hdpe Pipe
Drainage HDPE Water Supply Pipes High Performance PE 110 Solid Wall Hdpe Pipe
Drainage HDPE Water Supply Pipes High Performance PE 110 Solid Wall Hdpe Pipe
Drainage HDPE Water Supply Pipes High Performance PE 110 Solid Wall Hdpe Pipe
Drainage HDPE Water Supply Pipes High Performance PE 110 Solid Wall Hdpe Pipe
Specifications
Brand Name :
HAIYANG
Model Number :
HM01014
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 Meter/Meters
Price :
0.5$/m(1~10m);0.43$/m(>1000m)
Supply Ability :
5000 Metric Ton/Metric Tons per Year
Packaging Details :
6m or 12m per piece
Specification :
DN25mm-1000mm
Color :
Black or Customer request
Usage :
Water supply
Raw material :
PE100
Size :
Customized Size
MOQ :
100 Meters
Sample :
Provide Samples
Advantage :
High Performance
Description

HDPE Pipes Polyethylene 100 Grade Water Supply Pipe Solid Wall Drag PE110 Drainage Pipe Hot Melt Pipe
----------------------------------------

Basic Info.

HDPE is a very common material, that is, high-density polyethylene. HDPE is high-density polyethylene, and PE is polyethylene. That's the difference. But the physical properties are different.

Outer Diameter
DN (mm)		 SDR 9
PN20		 SDR 11
PN16		 SDR 13.6
PN12.5		 SDR 17
PN10		 SDR21
PN8		 SDR26
PN6		 Packing
Loaded into 40GP/Piece
6m or 12m per Piece
Wall Thick Ness(mm) Wall Thick Ness(mm) Wall Thick Ness(mm) Wall Thick Ness(mm) Wall Thick Ness(mm) Wall Thick Ness(mm)
75 8.4 6.8 5.6 4.5 1085
90 10.1 8.2 6.7 5.4 4.3 754
110 12.3 10 8.1 6.6 5.3 4.2 504
125 14 11.4 9.2 7.4 6 4.8 378
140 15.7 12.7 10.3 8.3 6.7 5.4 304
160 17.9 14.6 11.8 9.5 7.7 6.2 224
180 20.1 16.4 13.3 10.7 8.6 6.9 182
200 22.4 18.2 14.7 11.9 9.6 7.7 143
225 25.2 20.5 16.6 13.4 10.8 8.6 110
250 27.9 22.7 18.4 14.8 11.9 9.6 90
280 31.3 25.4 20.6 16.6 13.4 10.7 72
315 35.2 28.6 23.2 18.7 15 12.1 56
355 39.7 32.2 26.1 21.1 16.9 13.6 42
400 44.7 36.3 29.4 23.7 19.1 15.3 30
450 50.3 40.9 33.1 26.7 21.5 17.2 25
500 55.8 45.4 36.8 29.7 23.9 19.1 20
560 62.5 50.8 41.2 33.2 26.7 21.4 16
630 70.3 57.2 46.3 37.4 30 24.1 12
710 64.5 52.2 42.1 33.9 27.2 9
800 72.7 58.8 47.4 38.1 30.6 6
900 81.8 66.2 53.3 42.9 34.4 6
1000 90.2 72.5 59.3 47.7 38.2 4
1200 88.2 67.9 57.2 45.9
1400 102.9 82.4 66.7 53.5
1500 110.2 88.2 71.4 57.6
1600 117.6 94.1 76.2 61.2

Drainage HDPE Water Supply Pipes High Performance PE 110 Solid Wall Hdpe Pipe

Advantage


1. Good thermal conductivity
2. Excellent high temperature resistance
3. Low temperature thermal shock resistance
4. Environmental protection
5. Processing performance stability

Details

Drainage HDPE Water Supply Pipes High Performance PE 110 Solid Wall Hdpe Pipe Drainage HDPE Water Supply Pipes High Performance PE 110 Solid Wall Hdpe Pipe

Drainage HDPE Water Supply Pipes High Performance PE 110 Solid Wall Hdpe Pipe Drainage HDPE Water Supply Pipes High Performance PE 110 Solid Wall Hdpe Pipe

Application

Polyethylene PE water supply pipes are widely used in building water supply, building drainage, buried drainage pipes, building heating, gas transmission pipes, welding and telecommunications maintenance casings, industrial pipes, and agricultural pipes because of their unique advantages. Wait. Its key applications are urban water supply, urban gas supply, farmland irrigation and other industries. PE (polyethylene) raw materials are widely used in the water supply pipe manufacturing industry because of their high strength, corrosion resistance, and non-toxic properties; because it is not easy Rust, therefore, is an ideal pipe to replace ordinary iron water supply pipes.


Certificate

Drainage HDPE Water Supply Pipes High Performance PE 110 Solid Wall Hdpe Pipe
Drainage HDPE Water Supply Pipes High Performance PE 110 Solid Wall Hdpe Pipe
Drainage HDPE Water Supply Pipes High Performance PE 110 Solid Wall Hdpe Pipe
Company Profile


High Mountain Pipe Industry is a company integrating the production and sales of sewage treatment equipment and municipal water supply and drainage pipelines. It is a large pipeline building material production base in Central South China. With farsightedness, bold practice, and taking advantage of the background of Internet big data, we rely on our own production technology strength to continuously explore the transformation and upgrading strategies of traditional production enterprises, and become a new type of domestic "Internet + pipeline building materials" production enterprise!


Drainage HDPE Water Supply Pipes High Performance PE 110 Solid Wall Hdpe Pipe Drainage HDPE Water Supply Pipes High Performance PE 110 Solid Wall Hdpe Pipe

Drainage HDPE Water Supply Pipes High Performance PE 110 Solid Wall Hdpe Pipe Drainage HDPE Water Supply Pipes High Performance PE 110 Solid Wall Hdpe Pipe

FAQ

Q: How to get free samples?
A: Send your address, telephone number, zip code and express account number to our mailbox, and tell us which model of samples you need. Our sales team will contact you within 24 hours.

Q: How to get free samples?
A: Send your address, telephone number, zip code and express account number to our mailbox, and tell us which model of samples you need. Our sales team will contact you within 24 hours.

Q: What is your warranty policy?
A: The product is guaranteed for two years from the date of shipment (or leaving the seller's factory depending on the terms).
It is also guaranteed that the product can be used for 50 years.
