Stainless Steel Christmas Tree Equipment Forged Tubing Head And Tubing Spool
Stainless Steel Christmas Tree Equipment Forged Tubing Head And Tubing Spool
Stainless Steel Christmas Tree Equipment Forged Tubing Head And Tubing Spool
Stainless Steel Christmas Tree Equipment Forged Tubing Head And Tubing Spool
Specifications
Brand Name :
CCSC
Model Number :
Customizable
Certification :
API 6A
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
30-40days
Packaging Details :
Plywood box
Working pressure :
2,000psi-20,000psi
Medium :
oil,natural gas,mud
Working temperature :
-46℃-121℃（L-U）
Material class :
AA-HH
Specification class :
PSL1-PSL4
Performance class :
PR1-PR2
Description

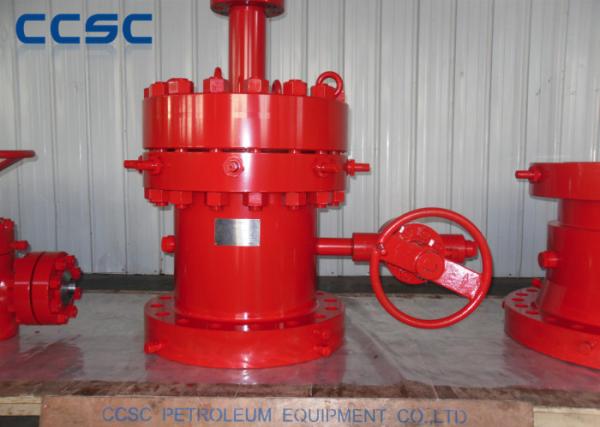

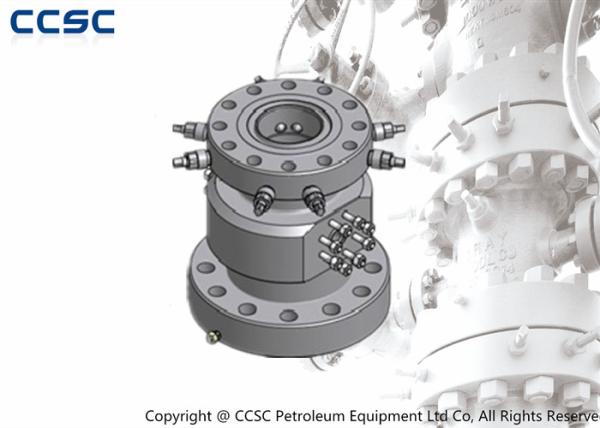

Forged Tubing Head and Tubing Spool with API 6A suitable for Wellhead Christmas Tree

Tubing head is a body with two flange that can supports the tubing string on a oilwell, seals off the pressure between the casing and tubing annulus, and connect with tubing adapter on the top.

Tubing Head &tubing spool are a straight bore bowl with 45° landing shoulder design which avoids damage to sealing areas by drilling tools, and provides wedging of the tubing hangers, bowl protectors and test plugs. the secondary seal for the last casing pipe can be an integrated "OO" seal type or the plastic injection type, but also accepts reducer bushings "4-O" and "PE" (Pressure Energized).The upper flange is supplied with lockdown screws for packoff tubing hanger retention. The lower flange includes a grease fitting and orifice for testing of the secondary seal.

Tubing Head provided by CCSC can used for single completions and model of dual completions.


Stainless Steel Christmas Tree Equipment Forged Tubing Head And Tubing Spool

Feature:

  • 1. Versatile straight-bore design,Uses a 45° landing shoulder can safety support maximum loads.
  • 2. Bodies can be made from materials suitable for many severe service environments.
  • 3. Two different types of outlets: line pipe outlets and flanged padded (studded) outlets.
