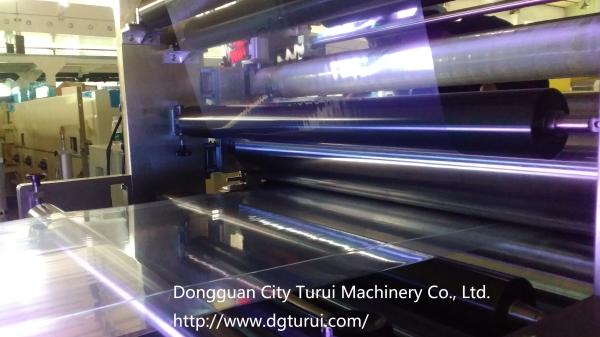

UV OCA Coating Machine

Detail description: Suitable application: suitable for PET, Form, PE protective film.,ect, substrate coating.

Characteristics

1. Direct transfer coating, different substrates laminating

2. Anilox coating, adhesive transfer precisely control

3. Double station pneumatic loading, double station pneumatic rewinding

4. Automatic splicing, automatic cutting

5. Outer heating oven, inside made by SUS304

6.Fully automatic tension sectional control

7. Temperature sectional control. It can be adjusted according to the process requirements

Technical specification:

The working principle of automatic high speed coater:

The automatic high speed coater for screen printing works the same way, but its performance varies according to different models and different manufacturers. The screen high speed coater is provided with a device capable of clamping the frame on the vertical frame. The front and rear of the screen area is a horizontal coating mechanism consisting of a coating tank and mechanical or pneumatic components that control the angle and pressure of the coating tank.
Both ends of the high-speed coating mechanism are mounted on the vertical support arm of the high-speed coating machine, and the high-speed coating mechanism is moved up and down by the belt, chain or cable transmission, and coated along the surface of the screen. The transmission is connected to a servo or variable frequency motor for smooth operation and precise control of the position of the coating mechanism.
Before coating, the clean, stretched screen is loaded from the front of the coater, and some models can also be loaded into the screen from the side. In models designed for large format frames, side mounting is more common because the frame is large and bulky, and the side loading allows for a smaller amount of lift and movement. When the automatic screen high speed coater is operated online with other automatic screen processing equipment (such as cleaning equipment, recycling equipment, drying equipment and developing machine), it is more convenient to mount from the side.
Regardless of how the screen is installed, once the screen is in the correct position, the pneumatic clamp or mechanical clamp is closed and the screen is locked. In order to make the operation more convenient, many models have pedals to control the folder movement, and the operator can free up his hands to control the screen. After the screen is installed and the corresponding high-speed coater is filled with the corresponding emulsion, the coating can be started. Depending on the function of the control system and equipment, the equipment can simultaneously coat both sides of the screen.
The high-speed coating machine manufactured by Jiangyin Lida Printing and Packaging Machinery Co., Ltd. has an excellent position in China and is a domestic high-quality coating machine manufacturer.
