None-woven Melt blown cloth for / cloth/ Slitting Machine

Detail description: suitable for cloth, Melt blown for , Non-woven fabric for slitting and rewinding.

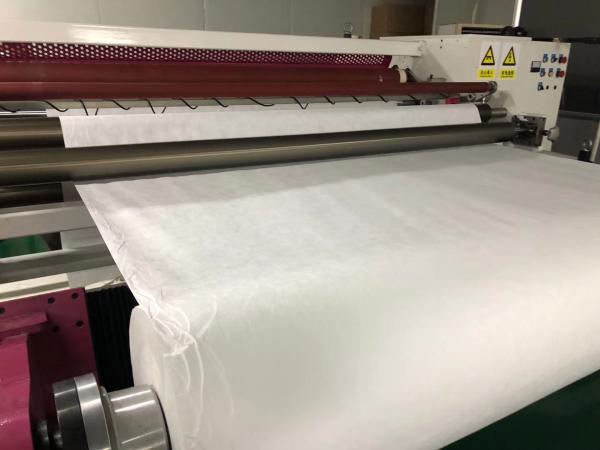

Fabric Slitting Rewinding Machine

This machine was specially designed to cut Interlining Woven and Non-woven Fabric Rolls. This machine comes with Manual Rack system or PLC base Servo drive Automatic Cutting arrangement. It can slit Min 20mm Roll Widths and above. We have designed special mechanical rack system to cut fix size roll with 2mm tolerance or PLC driven fully automatic with lmm tolerance.

Characteristics:

1. The two rewinding motors cooperate with the main motor to work as three motors motion control, the main motor blocks the unwinding and the rewinding motor control the tension, the tension of the finished product is stable, good rewinding appearance.
2. The rewinding arm adopts the pneumatic coupling control the balance, the contact pressure can be adjusted automatically during rewinding, the contact pressure can be set. This machine can also be equipped with discontinuous rewinding, cut other materials more widely.
3. The operation interface adopts LCD touch screen, various rewinding conditions and working conditions can be set directly on the screen, the control part adopts PLC to control the machine operation, with self-test system.
4. The machine drive uses AC motor and frequency inverter; acceleration and deceleration are stable and fast.
5. Optional with slat type air pressure shaft and pneumatic friction shaft, suitable for more material range, the shaft change is specially designed, can be change at any time.
6. Auxiliary discharge device, the material outfeed pass surface impression roll, material more even, and reduce the noise (suitable for adhesive material)
7. Separate type unwinding stand, for bigger unwinding diameter.
