6 Core Coaxial Cable For High Temp Sensors
6 Core Coaxial Cable For High Temp Sensors
6 Core Coaxial Cable For High Temp Sensors
6 Core Coaxial Cable For High Temp Sensors
6 Core Coaxial Cable For High Temp Sensors
6 Core Coaxial Cable For High Temp Sensors
6 Core Coaxial Cable For High Temp Sensors
6 Core Coaxial Cable For High Temp Sensors
6 Core Coaxial Cable For High Temp Sensors
6 Core Coaxial Cable For High Temp Sensors
6 Core Coaxial Cable For High Temp Sensors
6 Core Coaxial Cable For High Temp Sensors
Specifications
Brand Name :
Dingzun
Model Number :
z-12
Certification :
ul
Place of Origin :
China
MOQ :
300m
Price :
USD 0.25-2.5
Payment Terms :
T/T, L/C
Supply Ability :
2000M/DAY
Delivery Time :
15DAYS
Packaging Details :
ROLL
Conductor :
SILVER COPPER
Stranded :
Stranded
Construction :
6*7/0.18
Insulation :
ptfe
shield :
SILVER COPPER
Armor :
TINNED COPPER
SHEATH :
SILICONE
Temperature :
200C
Voltage :
600V
Application :
special sensors
Description

Z-12
PRODUCT NAME: 6 CORE COAXIAL CABLE FOR HIGH TEMP SENSORS

DESCRIPTION:
Conductor: silver copper
Construction: 7/0.18
Cores: 6
Insulation: PTFE
Shield: silver copper wire braided
Coaxial jacket: FEP
Drain wire: tinned copper
General Shield: tinned copper wire braided
Rated temperature: 200℃
Rated Voltage:30V
Type: multi Coaxial cable

DETAILS:
6 CORE COAXIAL CABLE FOR HIGH TEMP SENSORS is a very few special cable.

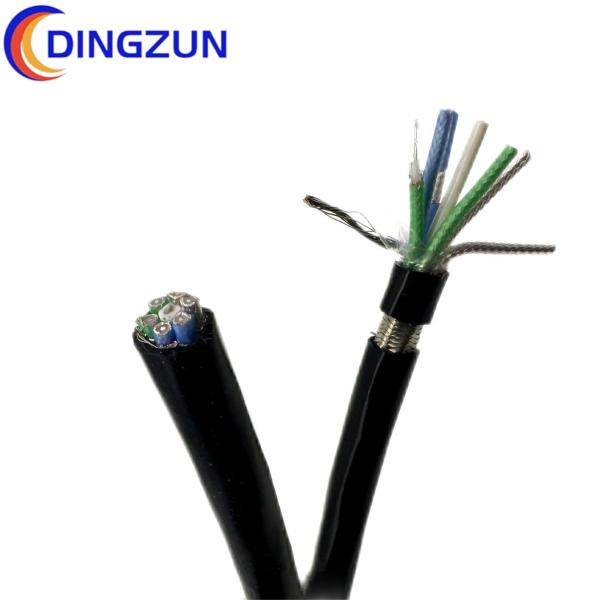

The construction is 6 coaxial cable with drain wire as the inner core, and tinned copper braid as a general shield. Outer jacket is FEP. Which keep high temperature resistance and rigid cable performance.
Every coaxial cable is silver copper as conductor, with PTFE insulation, and silver copper wire braided screen, finally the FEP jacket, colors as 2x transparent, and 2xskyblue, 1xwhite, 1xgreen.
This cable was customized for a famous Germany company, which is used for sensor connecting cable. Dingzun can accept complicated composite cable for different requirements.

Product tags

high temperature coaxial cable

,

cat5e cable temperature ratings

,

linear heat sensing cable
