Y-09

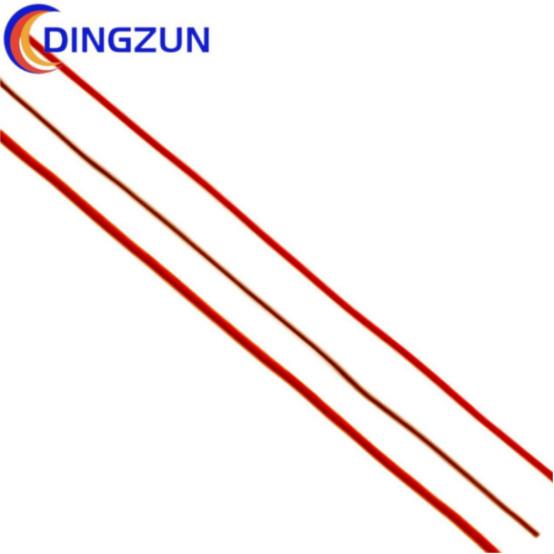

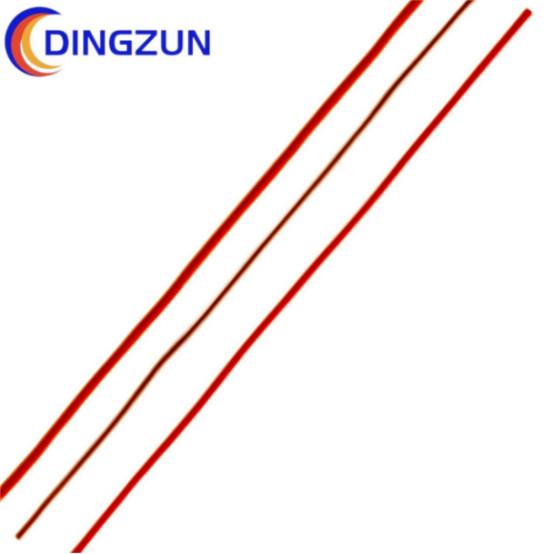

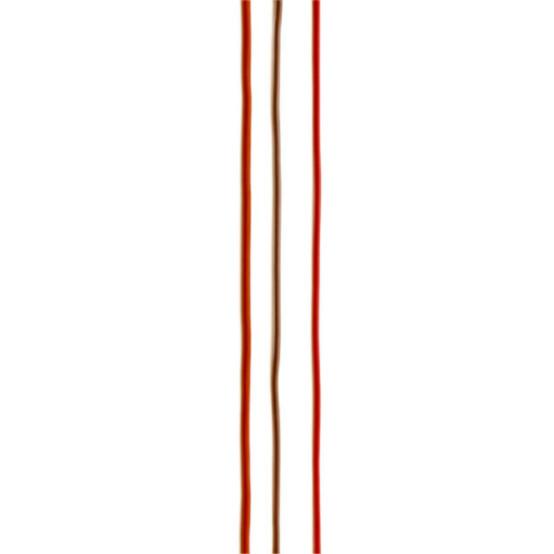

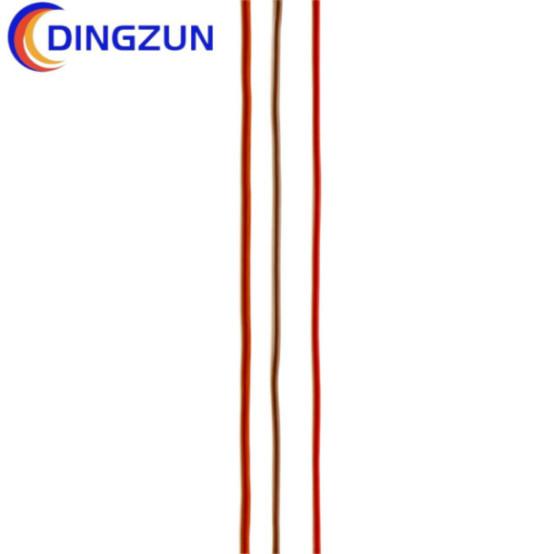

Description: 105 DEGREE PVC cable 0.2mm2

Conductor: tinned copper
Construction: 42/0.08 0.2mm2
Insulation: PVC
O.D.: 1.3mm
Rated temperature: 105℃
Rated Voltage: 300/500V

PVC wire is currently sold more of a kind of wire, pvc wire is also known as PVC wire. In a lot of home decoration, factory circuit construction when we can see PVC wire. As can be seen, many years of development makes pvc wire itself has a good market position, as well as a good reputation, of course, the best is its continuous improvement of the production process

Definition of pvc wire
pvc wire refers to the conductor and outer insulation made together, can be very good for the transmission of power and information. Usually this conductor is made up of one or more conductors
Composition of polyvinyl chloride wire
General PVC wire is composed of an outer layer and a conductor (mostly composed of copper wire)
pvc wire processing process and matters needing attention.
Because the composition of the wire is relatively simple, it is mainly composed of the outer insulation and the internal wire. Therefore, in the process of processing, the first is from the production of conductors, different uses of electricity internal conductor number is not the same, generally according to the use of wire conductor processing read in order to determine the number of conductors. If it is a wire with more than 3 conductors, pay attention to the tightness between the conductors during production, so as not to hinder the next operation, but also to ensure the safety of the use of the wire. When the conductor processing is good, it is necessary to play the processing of insulation in the outer layer of the conductor begins to add layers of insulation of the foreskin, at the same time according to the use of the wire to determine the thickness of the wire foreskin.
