Europe Ⅱ Underground Small Wheel Loader Small Front End Loaders HT916
Europe Ⅱ Underground Small Wheel Loader Small Front End Loaders HT916
Europe Ⅱ Underground Small Wheel Loader Small Front End Loaders HT916
Europe Ⅱ Underground Small Wheel Loader Small Front End Loaders HT916
Specifications
Brand Name :
HIGHTOP
Model Number :
HT916
Certification :
CE，EPA，ISO，TUV
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
Western Union, MoneyGram, T/T, D/A, D/P, L/C
Supply Ability :
20 set per month
Delivery Time :
5-14 work days
Packaging Details :
Wooden case
Product Name :
Small Wheel Loader
Dimension(Long * Breadth * High) :
6000*1890*2200mm
Weight :
3700kg
Emission Standards :
Europe Ⅱ
Rated speed :
2400r/min
Warranty :
1 Year
Description

HT916 Underground Small Wheel Loader With CE Small Front End Loaders

Description of HT916 Small Wheel Loader :

Baking paint process adopted on the whole machine to ensure a stronger adhesion and be colorfast.

Electrophoresis frame adopted to ensure resistant to rust.

Features of HT916 Small Wheel Loader :

Wheel loaders Can be equipped with a variety of attachments to achieve a multi-function,multi-purpose machine.

Technical parameters of Small Wheel Loader :

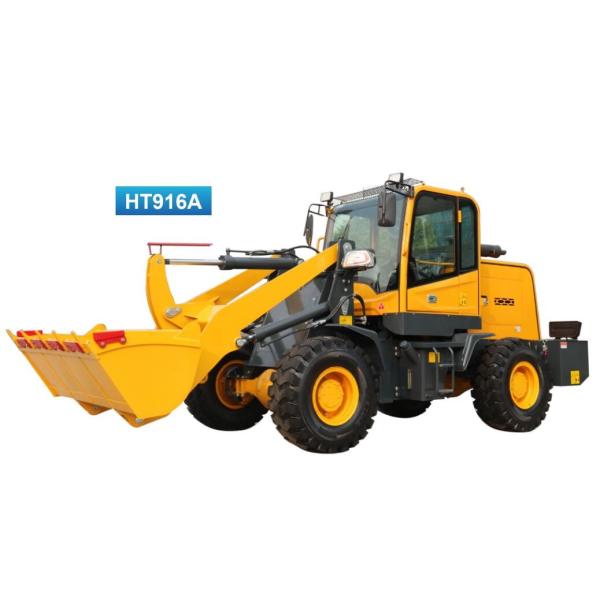

Model HT916A
Rated contained mass 1600kg
Total Weight 3700kg
Bucket capacity 0.55m³
Bucket width 1800mm
size(L×W×H) 6000*1890*2200mm
wheelbase 1470mm
Axle spacing 2300mm
Max.unloading height 2600mm
Min.turning radius 4400mm
Mini.ground clearance 260mm
Tires size 20.5/70-16
Boom lift 6.5s
Boom down 4.62s
Trinomial sum 10.89s
Standard configuration
Engine model 4BZ-52M22
rated power 36.8KW
Rated speed 2400 r/min
Emission Standards Europe Ⅱ
Origin QUANCHAI

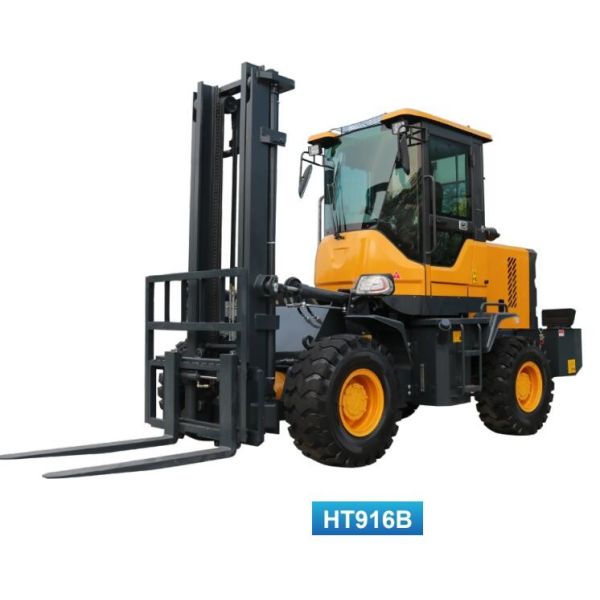

Model HT916B
Rated load capacity 3000kg
Overall machine weight 3700kg
size(L×W×H) 5300*1890*2660mm
wheelbase 1470mm
Axle spacing 2260mm
Front camber of the gantry° 12
Tilt back of the rack° 6
Shelf length 1220mm
Lifting height 4000mm
Min. turning radius 4400mm
Min. ground clearance 260mm
Standard configuration
Engine model 4BZ-52M22
rated power 36.8KW
Rated speed 2400r/min
Emission Standards Europe Ⅱ
Origin QUANCHAI

Applications of Small Wheel Loader :

Small electric loaders are widely used in construction projects suchas roads, railways, buildings, hydropower, ports, mines, etc, andare also agricultural machinery used in small spaces such as riceplants, farms, and pastures.

Images of Small Wheel Loader :

Europe Ⅱ Underground Small Wheel Loader Small Front End Loaders HT916Europe Ⅱ Underground Small Wheel Loader Small Front End Loaders HT916
